Benchtop pH-meter pH 50
pH meter benchtop digital microprocessor, resolution 0,1/0,01 pH
pH meter benchtop digital microprocessor with large backlight display, accuracy ± 0.01 pH and manual or automatic temperature compensation.
An elegant and ergonomic case which has inside the best of technology.
A large display backlight shows all information you need about the measurement and electrode’s life.
All the functional parameters of connected electrode, during measurement or calibration, are constantly checked and inform the operator for easy trouble-shooting.
Display information show calibration points and measurements stability indicator.
Only 4 keys allow the user to control all functions in an intuitive and easy way.
The instrument is powered by included 5V DC / 220V power supply
Features
- Simultaneous display of pH (mV), temperature and buffers used for calibration
- Automatic calibration up to 3 points
- Buffers selectable NIST, USA (8 values)
- Function "Stability", messages of self-diagnosis
KIT/versions available
| Code |
Description |
| XS/50001002 |

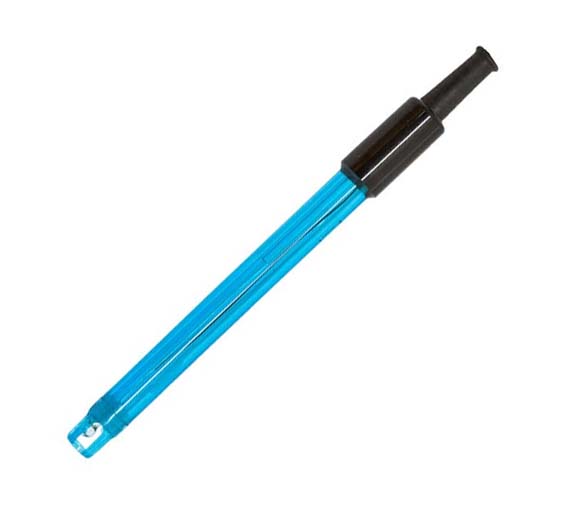

KIT with electrode - Complete of electrode mod. 201T with built-in temperature sensor, fixed cable with BNC plug and connector RCA for temperature sensor, support electrode holder, coloured pH buffers and instructions manual. pH 0 ... 14, temperature -10 ... 80 °C |
| XS/50001012 |

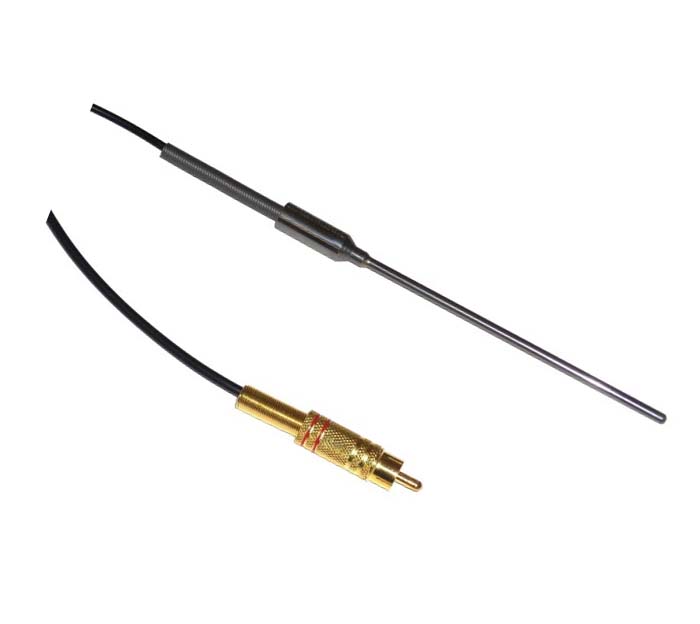

Version without electrode - Without electrode but with BNC cable, temperature probe NT55, support electrode holder, coloured pH buffers and instructions manual. |
Dati tecnici
| pH measuring range |
0,00 ÷14,00 pH |
| Resolution |
0,1/0,01 pH |
| Calibration points |
1, 2 or 3 |
| Buffer recognized |
USA: 1,68 - 4,01 - 7,00 - 10,01 pH NIST: 1,68 - 4,01 - 6,86 - 9,18 pH
2 points defined by user |
| Indication of the Slope and Offset |
YES |
| Criteria of measurement stability |
YES |
| Indication of calibration point |
YES |
| mV measuring range |
± 1.000 mV |
| Resolution |
1 mV |
| Temperature masuring range |
0÷100,0 °C |
| Resolution / Accuracy |
0,1 °C / ± 0,5 °C |
| Temperature compensation pH |
Automatic / manual 0…100 °C |
| Display |
LCD ( Liquid Crystal Display) Backlight |
| Inputs |
BNC and RCA / CINCH (CAT) and REF |
| Power supply |
5V DC / 220 V |
| IP protection |
IP 54 |
| Dimensions / weight instrument |
160 × 185 × 70 (A) mm / 550 g |
