Direct Soil EC Tester (0÷4000 μS/cm; da 0.00÷4.00 mS/cm)
Tester specifically designed to directly measure soil conductivity (EC) and temperature

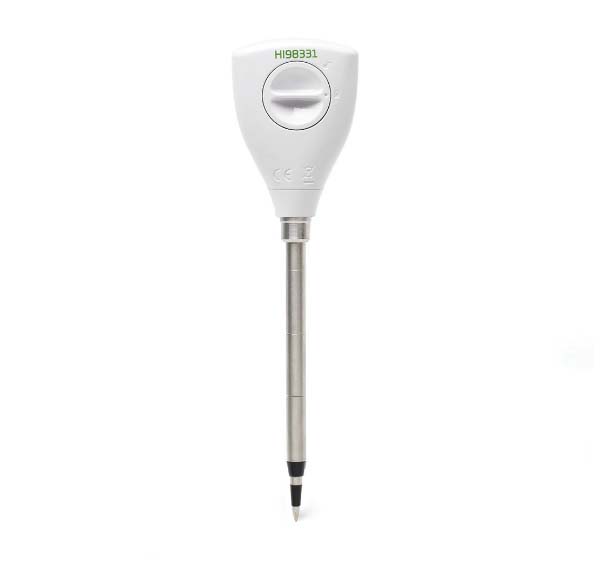

HN/098331 - Soil Test Direct Soil EC Tester
The HN/098331 is a pocket tester specifically designed to directly measure soil conductivity (EC) and temperature.
With a compact size, single button operation, and automatic calibration, Soil Test is an excellent choice for taking direct conductivity measurements in soil.
Grow better with GroLine.
- No need for soil slurries with the steel penetration electrode
- With an integrated temperature sensor, measurements are automatically temperature compensated for accurate readings
- Great for environmental and agricultural testing
Details
Measure the Bulk EC of Your Soil with a Soil Conductivty Test
Bulk electrical conductivity of soil measures the total conductivity.
Total conductivity includes the EC of the soil, air, and moisture in your sample.
All these things carry charged ions that would read as EC.
This reading is very useful; you can calculate your pore water conductivity and saturated extract conductivity from the result.
You would need to know your water content to perform that calculation (how much water there is in your soil).
How To Measure the Bulk EC with your Direct Soil EC Meter
- Pick your testing location
- Rinse the testing probe with deionized water, and make sure it is dry
- Check the soil and ensure that the soil is moist
- Use a ruler or auger to make a hole in the soil. This keeps the testing depth consistent
- Insert your soil conductivity tester directly into the soil, and take your measurement
Features at-a-glance
One-point calibration
Automatic Temperature Compensation (ATC)
Stainless steel penetration electrode
Technical specifications
| Conductivity Range |
0 to 4000 μS/cm
0.00 to 4.00 mS/cm (dS/m) |
| Conductivity Resolution |
1 μS/cm
0.01 mS/cm (dS/m) |
| Conductivity Accuracy |
±50 μS/cm (0 to 2000 μS/cm)
±300 μS/cm (2000 to 4000 μS/cm)
±0.05 mS/cm (0.00 to 2.00 mS/cm)
±0.30 mS/cm (2.00 to 4.00 mS/cm) |
| Temperature Range |
0.0 to 50.0°C |
| Temperature Resolution |
0.1°C |
| Temperature Accuracy |
±1°C |
| EC/TDS Calibration |
automatic, one-point at 1.41 mS/cm |
| Temperature Compensation |
automatic, temperature coefficient (β) fixed 2% / °C |
| Battery Type/Life |
CR2032 Li-ion approximately 100 hours of continuous use |
| Electrode/Probe |
114 mm (4.5 “) Stainless steel penetration |
| Environment |
0 to 50°C (32 to 122°F); RH max 95% non-condensing |
| Dimensions |
50 x 196 x 21 mm (2.0 x 7.7 x 0.9“) |
| Weight |
74 g (2.4 oz.) |
| Ordering Information |
HN/098331 is supplied with a stainless steel penetration probe, CR2032 battery (1 pc.), storage / protection sleeve, instruction manual, & quality certificate. |
