Micro Balance 5 g / 0,000001 g (1 µg)
Automatic calibration with internal mass, backlit LCD display

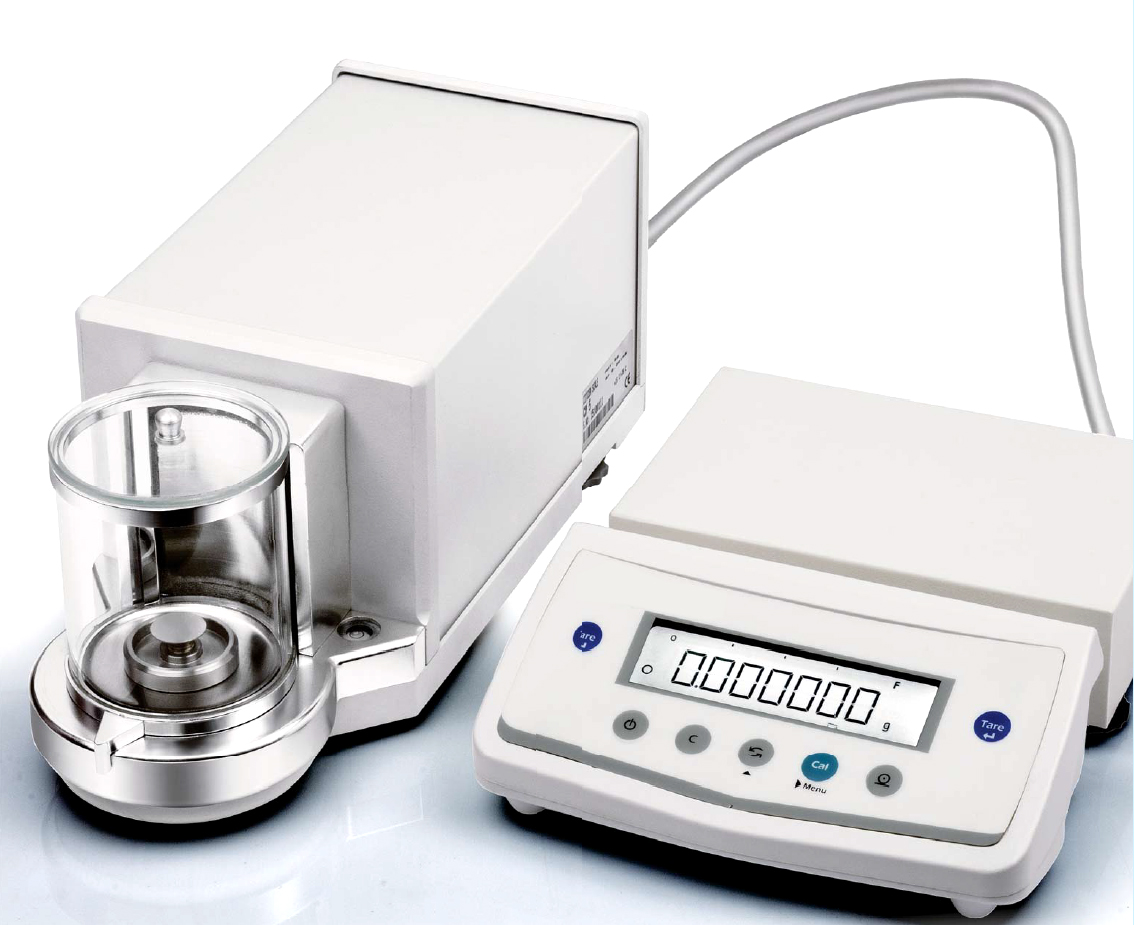

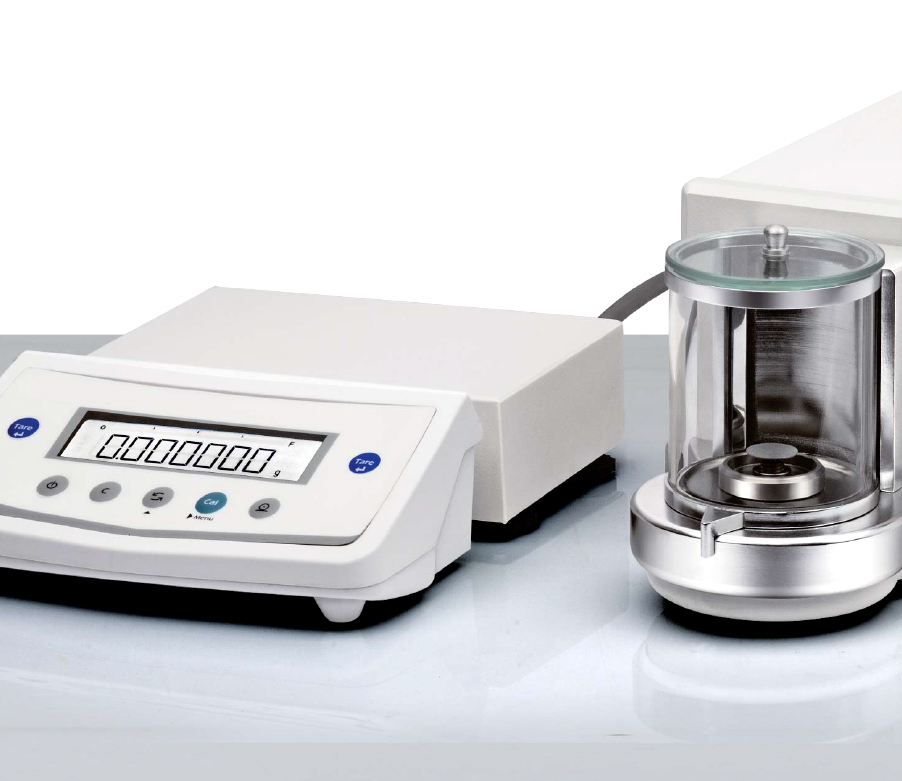

Micro Balance Mod. CM/002 capacity 5 g / readability 0,000001 (1 µg).
This Micro Balance Series consists of two components - one containing the electronics and the other, the precise mechanical measuring cell.
This separation eliminates the effects of temperature and the influence it has on the microbalance scale.
- The Briliant Mono-Tech - Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards
- Perfect Self Auto Calibration (PSAC) - When the ambient temperature changes by a specific value or once a defined time interval has elapsed, it performs Internal Calibration
- Easy Data Transfer - Interface RS 232C Optional USB(Windows direct communication)
- Power Saving Mode - Auto zero tracking
- Overload Protection - Capacity tracker built into display for easily monitoring possible overloads
- GLP - Built in cloack make your documents ISO / GLP / GMP compliance
- Protection (Optional) - Password Protection menu lock
- Excellent Readability - High-contrast, backlit display 15mm digits size is exceptionally easy to read under any room lighting conditions
- Fast Results - Short measurement times result in save your valuable time during each weighing operation
- More than weighing - 10 different pre-programmed applications ions other than basic weighing ease you routine lab work like, Filling, Statistics, Checking weighing, Percent weighing and Formulation
- Accessories - USB interface
Mod. CM/002 Technical Specifications
Code |
CZ/CM/005 |
Capacity |
5 g |
Readability |
1 µg |
Tare Range (subtractive) |
Full |
Pan size |
Ø 15 mm |
Response time |
6÷8 sec |
Display |
High Contrast LED Backlite Display |
Interface |
RS 232 |
Calibration |
Perfect Auto Internal Time & Temp.Controlled Smart Calibration |
Operating temperature |
+18°C ÷ +30°C |
Application Modes |
PCS, % Weighing, Formulation, Check Weighing etc. |
Power Supply |
A/C Adapter 230 V or 115V +/- 20%, 50-60 Hz |
Compliance |
ISO / GLP / GMP Compliance |
Balance Size (WxDxH) mm |
Mechanical Box : 360 x 140 x 146 / Electronic Box : 240 x 210 x 65 / Chamber Height : Ø75 x 86.5 |
Net Wt. / Gross Wt. |
10.20 kg / 14.70 kg |
Highest Precision
The high precision weighing requirements in analytical testing and quantitative analyses in the pharmaceutical industry compel use of high-resolution balances.
FDAcompliant working only possible with laboratory balances that meet the minimum accuracy requirements of the US Pharmacopeia.
This leads to the fact that, for weighing-in of less than 10 mg, micro balances often need to be used. In addition, the substances to be analyzed are often available only in very small quantities and are correspondingly expensive.
These micro balances fulfill the most stringent requirements. They offer the user the highest level of safety in terms of result reliability and standard conformity.
Fast Results
Short measurement times result in save your valuable time during each weighing operation.
More than weighing
10 different pre-programmed applications other than basic weighing ease you routine lab work like, Filling, Statistics, Checking weighing, Percent weighing and Formulation.
Easy Cleaning
Easy and fast cleaning is especially important when working with minute sample sizes so as to prevent crosscontamination. All parts of the draft shield can be removed easily.
After cleaning, the balance is ready to be used again just as quickly.
High Repeatability
Microbalance consists of two components. One of them contains electronic modules, and the other precise mechanical measuring system such a solution elimination of temperature changes influencing the weighing of the micro balance and thus it yield great repeatability of your weighing results.
Glass draft shield
Micro balance are equipped with esthetic cylindrical shaped motorized glass draft shield helps working with minimum sample size effortless and fast.
Elements of weighing chamber are manufacturer from glass with special coating inside and metal, which minimize the influence of electro static change on weighing result.
Infra Red Sensor
Thanks to infrared sensors, you can weigh without touching the balance. Everything is done automatically with a wave of your hand. You can focus completely on the sample, and weigh valuable or toxic substance safely and without spilling.
Perfect Self Automatic calibration (PSAC)
Thanks to Perfect Self Automatic calibration, when the ambient temperature changes by a specific value or once a defined time interval has elapsed, it performs internal calibration and adjustment fully automatically.
Therefore, the balance ensures that calibration is carried out at regular intervals, and delivers consistently high accuracy.
Connectivity
All balance generated data can be logged via RS232C for efficient data capture.
Brilliant readability
High Contrast LED Backlit display ensures excellent readability.
Flexible
User can access to multiple application other than just weighing and measure in multiple units. It generate GLP compliance printout.
Pipette Calibration
Model CM11P have been specially designed for calibration of pipettes.
Non-centrically located aperture in the upped part of the chamber makes it easier to insert a pipette.
This allows pipette calibration with a closed weighing chamber to obtain micro gram accuracy
Filter weighing
The special metal draft shield is optimize for ultra precise weighing of filters.
This filters draft shield minimizes electrostatic effects.
Different weighing pan diameters are available for different filter sizes (30 mm as standard | 50 mm and 100 mm as optional)
