Cuvette MACRO CELL "OS" optical path lenght 40 mm / 14.000 µl
In special optical glass, wavelength range 320÷2,500 nm
Special optical glass cuvette "OS" for the wavelength range of the visible 320÷2,500 nm.
OS indicates that “Special Optical Glass” is used for the window. This crown glass is made from exceptionally pure raw materials and gives improved transmission in the near ultraviolet range.

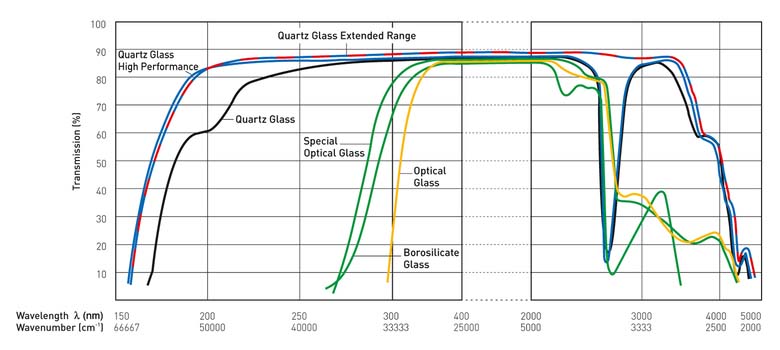

An empty cell will give a transmission of more than 80 % over a spectral range from 320 nm to 2500 nm. 100-40-20
Technical specifications
| Type |
100 – Macro cells |
| Code |
HLM/100/40/20 |
| Measuring method |
Absorption cells |
| Remarks |
with PTFE lid |
| Material Color Code |
|
| Wavelength range |
VIS (320 - 2500 nm) |
| Optical path length |
40 mm |
| Volume |
14.000 µl |
| Outside dimensions |
| Height |
45 mm |
| Width |
12.5 mm |
| Depth |
42.5 mm |
| Inside dimensions |
| Width |
9.5 mm |
| Base thickness |
1.5 mm |
| Center Height |
8.5 - 20 mm |
| Number of windows |
2 |
| Polarimetric checking |
on request |
| Transmission matched |
optional possible |
