"Real-Time" Thermal cycler 520÷540 nm

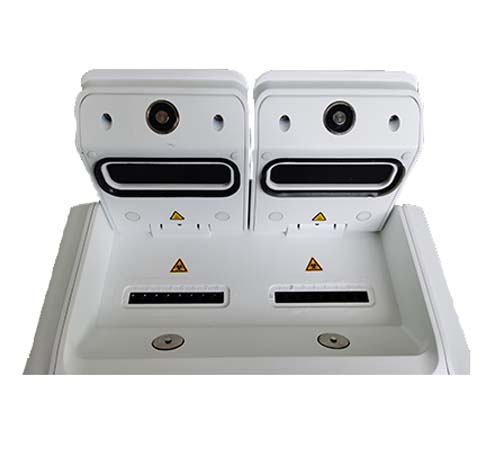

Dual-channel and double 8-well blocks, which can run two different files simultaneously
Real-Time PCR System is a portable fluorescence quantitative PCR instrument.
This product adopts dual-channel and double 8-well blocks, which can run two different files simultaneously.
The product combines a variety of advanced technologies: 7-inch high-definition TFT color touch screen, win10 operating system with analysis software, complete quantitative analysis and printing report without computer. It adopts American Marlow custom-made peltier, high sensitivity photoelectric detector and side scan technology, to ensure superior performance and stable detection results.
Application: the product can be used for real-time detection in pasture, forest farm, breeding farm and water source. It is used for rapid diagnosis of disaster and epidemic disease, inspection and quarantine in the field of food safety, and scientific research in biological laboratories.
Features
- Double channels and double 8-well blocks design, can run two different programs at the same time
- Small size, light weight, easy to carry
- Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, etc
- 7-inch high-definition TFT color touch screen, and embedded win10 operating system
- 20G flash memory can save 40,000 experimental data
- Printer as an optional which can print the records directly, no need to connect the computer
- Adopting side scan technology, the detection distance is close, and the fluorescence acquisition signal is stable
- Black reaction block to avoid background noise
- Adopt the same acquisition optical path to improve the repeatability
- LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free
- The electromagnetic lock cover technology prevents the hot lid from accidentally opening
- Front shutdown button makes file data more secure
- Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy
- It has the protection functions of over-current, over temperature, power-off data self recovery, etc.
- Forward and backward air vent design, can be placed side by side, saving laboratory space
- It can be supported for battery power supply, suitable for quick inspection and field inspection
Technical specifications
| Code |
BG/001/601 |
| Capacity |
16×0,2 ml
(2×8 well double block) |
| Consumable |
Clear 0.2 ml PCR tubes / 8 tube strips |
| Reaction volume |
10÷100 µl |
| Temperature control technology |
Peltier (allow 1.000.000 cycles) |
| Temperature range |
0÷100°C (resolution 0,1°C) |
| Max ramp rate |
6°C/s |
| Temperature fluctuation |
+/- 0.1°C |
| Uniformity |
+/- 0.25°C |
| Accuracy |
+/- 0.25°C |
| Hot lid temperature range |
30÷115°C
(adjiustable, default 105°C) |
| Excitation wavelenght |
460÷550 nm |
| Emissione wavelenght |
520÷540 nm |
| Factory calibrated dyes |
FAM/SYBR Green I |
| Excitation |
Long life LED |
| Detection |
High sensitivity photoelectric detector |
| Dynamic range |
1÷10(10) copies |
| Sensitivity |
1 copy |
| Feature functions |
Absolute/relative quantification, melting curve, genotyping |
| Date export formats |
excel, cvs, txt |
| Printing |
Optional USB thermal printer |
| Display |
7 inch color touch screen TFT
1280×800 px |
| Communication parts |
WIFI/USB 2.0 |
| Dimensions |
300×267×198 mm |
| Weight |
5,5 kg |
| Power |
DC15V / 250 W |
