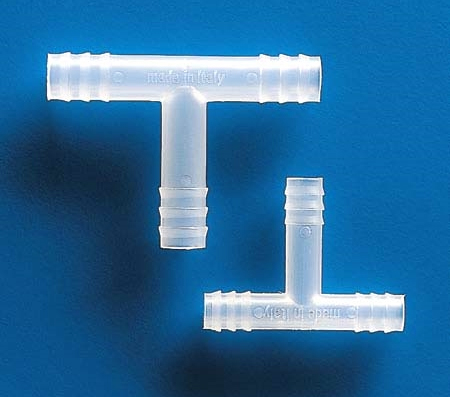

"T" Untapered connectors (PP)
Polypropylene, autoclavable, excellent chemical and temperature resistance
"T" untapered polypropylene (PP) connectors
- Excellent chemical and temperature resistance
- With serrations to hold hoses tightly and prevent slipping
- Autoclavable
Hoses connectors - Features
- Autoclavable, they meet with the food and drug regulations, 90/128/CEE, 92/39/CEE and FDA 21 CFR 177.1520
- Dimensions are shown as both nominal and exact as elasticity of hoses will influence the choice of size
- Use hoses selector (art. KT/001759) to determine "grip"
- This will then give equivalent crest dimension for the particular connector concerned
Suitable for foodstuff
To order
Code |
Nominal O.D. (mm) |
Valley/Crest O.D. (mm) |
Bore Ø (mm) |
Qty |
KT/000459 |
4 |
3,3/3,6 |
1,6 |
100 |
KT/000460 |
6 |
4,5/5,4 |
3,7 |
100 |
KT/000461 |
8 |
6,9/7,6 |
4,4 |
100 |
KT/000462 |
10 |
8,7/9,5 |
6,3 |
100 |
KT/000463 |
12 |
10,7/11,5 |
8,2 |
100 |
KT/000520 |
14 |
12,7/13,7 |
10,0 |
100 |
KT/000521 |
16 |
14,7/15,6 |
12,1 |
100 |
