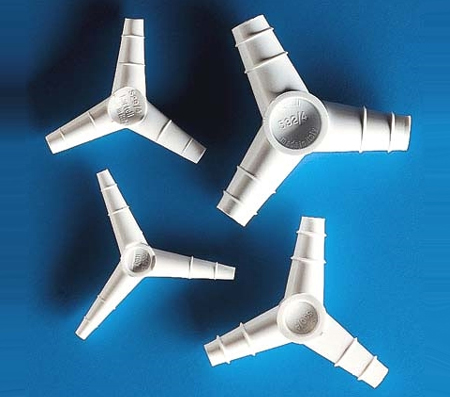

120° "Y" Tapered connectors (PP)

Polypropylene, autoclavable, excellent chemical and temperature resistance

120° "Y" tapered polypropylene (PP) connectors

  • Excellent chemical and temperature resistance
  • Autoclavable

Hoses connectors - Features

  • Autoclavable, they meet with the food and drug regulations, 90/128/CEE, 92/39/CEE and FDA 21 CFR 177.1520
  • Dimensions are shown as both nominal and exact as elasticity of hoses will influence the choice of size
  • Use hoses selector (art. KT/001759) to determine "grip"
  • This will then give equivalent crest dimension for the particular connector concerned

Suitable for foodstuff

To order

Code O.D. nom.(mm) Crest O.D. (mm) Valley O.D.  (mm) Bore Ø (mm) Qty
KT/000527 4/5/6 4,1/5,1 3,8/4,7 1,5 100
KT/000528 6/7/8 5,5/7,2 5,2/7,0 2,7 100
KT/000529 8/9/10 7,0/9,2 6,9/8,8 4,7 100
KT/000530 10/11/12 9,9/11,5 9,8/10,7 5,5 100
KT/000531 12/13/14 12,0/14,2 11,1/13,2 7,6 100
KT/000532 14/15/16 13,7/15,5 13,0/14,9 9,6 100




You might also be interested in these items
"Y" Untapered connectors (PP)
"Y" Connectors nominal O.D. 10 mm / bore Ø 5,5 mm Qty 100

€ 121.80
iva esc.
Details
120° "Y" Tapered connectors (PP)
120 °Y" Connectors nominal O.D. 14/15/16 mm / bore Ø 9,6 mm Qty 100

€ 264.60
iva esc.
Details
Straight connectors tapered (PP)
Straight connectors nominal O.D. 8/9/10 mm / bore Ø 4,5 mm Qty 100

€ 96.60
iva esc.
Details

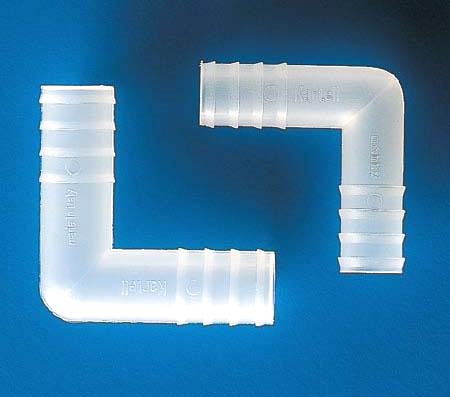

"L" Untapered connectors (PP)
