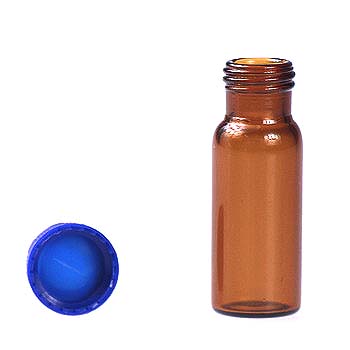

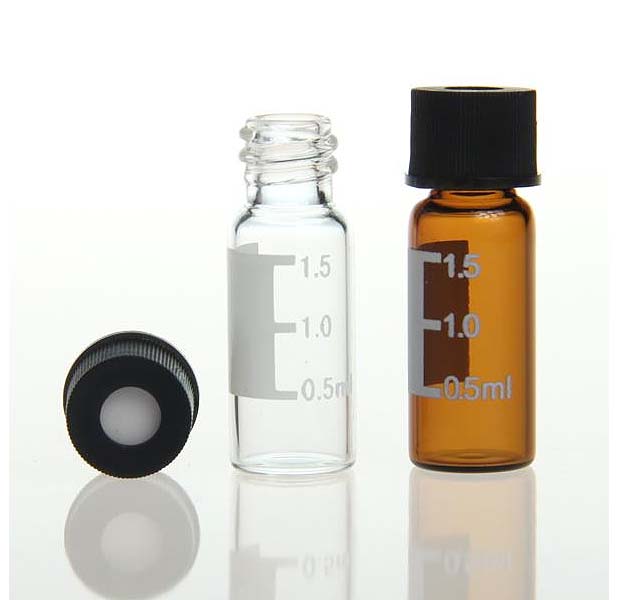

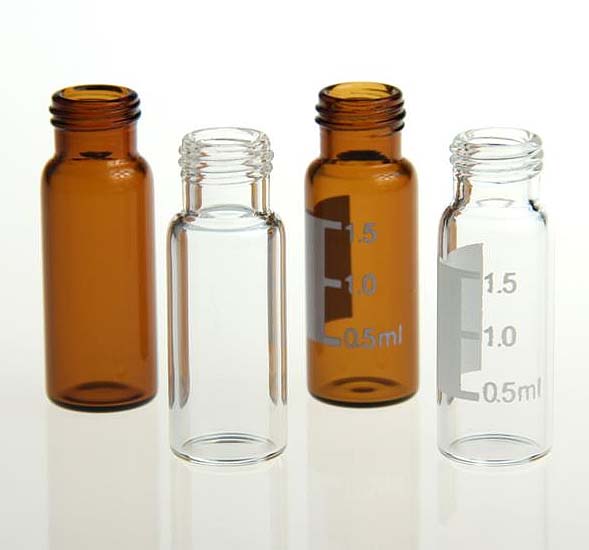

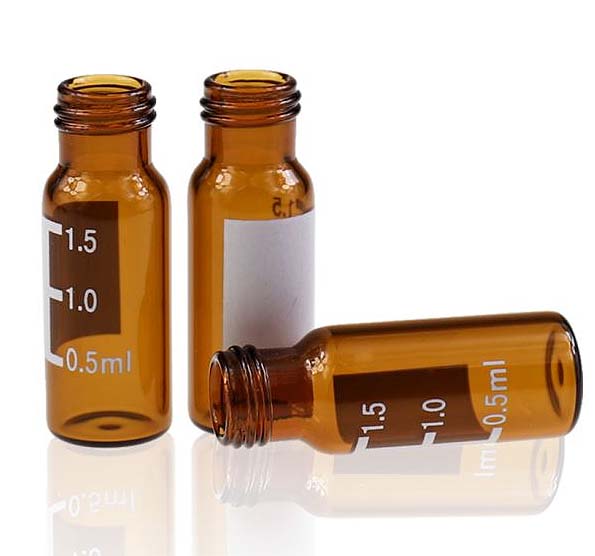

2 ml (9-425) Autosampler vials
Colourless or amber glass, with thread 9-425
Vials for autosamplers, capacity 2 ml, thread 9-425.
Available in colourless or amber glass and in versions with and without graduation and writing area.
Features
- Compatible with Agilent, Schimadzu and Waters autosamplers
- Tightest dimensional tolerances in industry
- Manufactured in an ISO 9001 certified environment
- Supplied pre-assembled with capos and septa to be configured and purchase separately
To order - 2 ml (9-425) Vials
Code |
Description |
Glass color |
Qty |
LW/2ML9/V1001 |
2 ml, Ø 12×32, 9-425 flat base screw thread vials |
Clear |
100 |
LW/2ML9/V1002 |
2 ml, Ø 12×32, 9-425 flat base screw thread vials with label and graduation |
Clear |
100 |
LW/2ML9/V1003 |
2 ml, Ø 12×32, 9-425 flat base screw thread vials |
Amber |
100 |
LW/2ML9/V1004 |
2 ml, Ø 12×32, 9-425 flat base screw thread vials with label and graduation |
Amber |
100 |
9-245 - Open top screw caps (PP)
You can configure the vials with different type of caps to buy separately.
These will be supplied pre-assembled with the vials together with the septa.
- Polypropylene caps are chemically inert and suitable for most chromatography applications
- Normal available cap color is blue, black, clear, while other special colors can be also produced accordingly
- Smooth cap & Ribbed cap are available
- Septa & Pre-slit septa are available
- Pre-assembled caps and septa are convenient and minimize contamination from handling
- Easy-on, easy-off convenience with just half-a-turn
Code |
Description |
Color |
Qty |
LW/9SP/2001/1 |
9-425 open top smooth screw caps |
Blue |
100 |
LW/9SP/2001/2 |
9-425 open top ribbed screw caps |
Blue |
100 |
LW/9SP/2001/2A |
9-425 open top ribbed screw caps short height |
Blue |
100 |
LW/9SP/2002/3 |
9-425 open top smooth screw caps |
Black |
100 |
LW/9SP/2002/4 |
9-425 open top ribbed screw caps |
Black |
100 |
LW/9SP/2001/2GM |
9-425 open top ribbed screw caps short height |
Black |
100 |
9-245 PTFE/Silicone septa
The caps with central opening of the vials series 9-245 are complemented by the choice of the septum.
Available also in pre-slit versions for easier perforability of needles:
- "pre-slit"
- "pre-slit Mercedes style" with star shape pre-slit
- "pre-slit Cross shape style " with cross shape pre-slit
Also the septa are provided pre-assembled in the caps and you can choose between different types indicated in the following table.
Code |
Description |
Color PTFE |
Color Silicone |
Qty |
LW/9SP/1001 |
PTFE/silicone septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) |
Red |
White |
100 |
LW/9SP/1002 |
PTFE/silicone septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) |
White |
Red |
100 |
LW/9SP/1003 |
PTFE/silicone septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) |
Blue |
White |
100 |
LW/9SP/1004 |
PTFE/silicone septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) "Pre-Slit" |
Red |
White |
100 |
LW/9SP/1005 |
PTFE/silicone septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) "Pre-Slit" |
Blue |
White |
100 |
LW/9SP/1006 |
PTFE/silicone/PTFE septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) |
Red |
White |
100 |
LW/9SP/1007 |
PTFE/silicone septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) "Pre-Slit Mercedes Style" |
Red |
White |
100 |
LW/9SP/1008 |
PTFE/silicone/PTFE septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) "Pre-Slit" |
White |
Red |
100 |
LW/9SP/1010 |
PTFE/silicone/PTFE septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) "Pre-Slit" |
Colorless |
White |
100 |
LW/9SP/1011 |
PTFE/silicone/PTFE septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) "Pre-Slit Cross shape Style" |
Red |
White |
100 |
LW/9SP/1013 |
PTFE/silicone/PTFE septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) |
Colorless |
White |
100 |
LW/9SP/1017 |
PTFE/silicone/PTFE septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) |
Transparent |
Red |
100 |
9-245 PTFE/natural rubber
Available also two codes of transparent PTFE/natural rubber septa:
Code |
Description |
Color PTFE |
Color rubber |
Qty |
LW/9SP/1009 |
PTFE/natural rubber septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) |
Trasparent |
Orange |
100 |
LW/9SP/1012 |
PTFE/natural rubber septa 9-425 Ø 9 mm thickness 1 mm (0,040 in) "Pre-Slit" |
Trasparent |
Orange |
100 |
