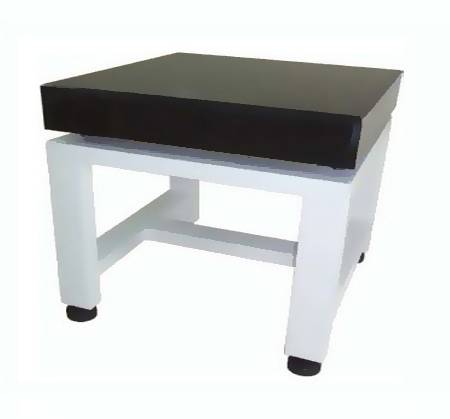

Anti vibration table

op - 100% Anti-Vibration area will be provided Well polished black color Granite laminated

Anti-Vibration Top - 100% Anti-Vibration area will be provided Well polished black color Granite laminated over thick heavy kadapa slab. Between 1" Height anti vibration rubber pad.

MOC - Made of 18 Swg. Electro-Galvanized G.I. 50 x 100 Frame attractively finished in epoxy powder coating
Anti-Vibration mounts - provided at 2 stage for double dampening effect
Mounted on shock absorbing special heavy duty Anti-Vibration mounts
4 Nos. below the work top and 4 Nos. on foot of the table
Foot level height adjustment
Special Shore 'D' hardness Rubber used for the Anti Vibration Mounts
All AVT's / VIT's are tested with calibrated Vibration meter
Working Height of Table can be Sitting – 750 mm or Standing – 900 mm

Mount options

Standard Elastomeric Mounts
Advanced Shock Resistant Air Spring Mounts
Advanced Auto Leveling Pneumatic Mounts

Two models available

Code	Description
CZ/VRD/900	Anti vibration table dimensions 900×600× h 750/900 mm
CZ/VRD/1200	Anti vibration table dimensions 1.200×600× h 750/900 mm
