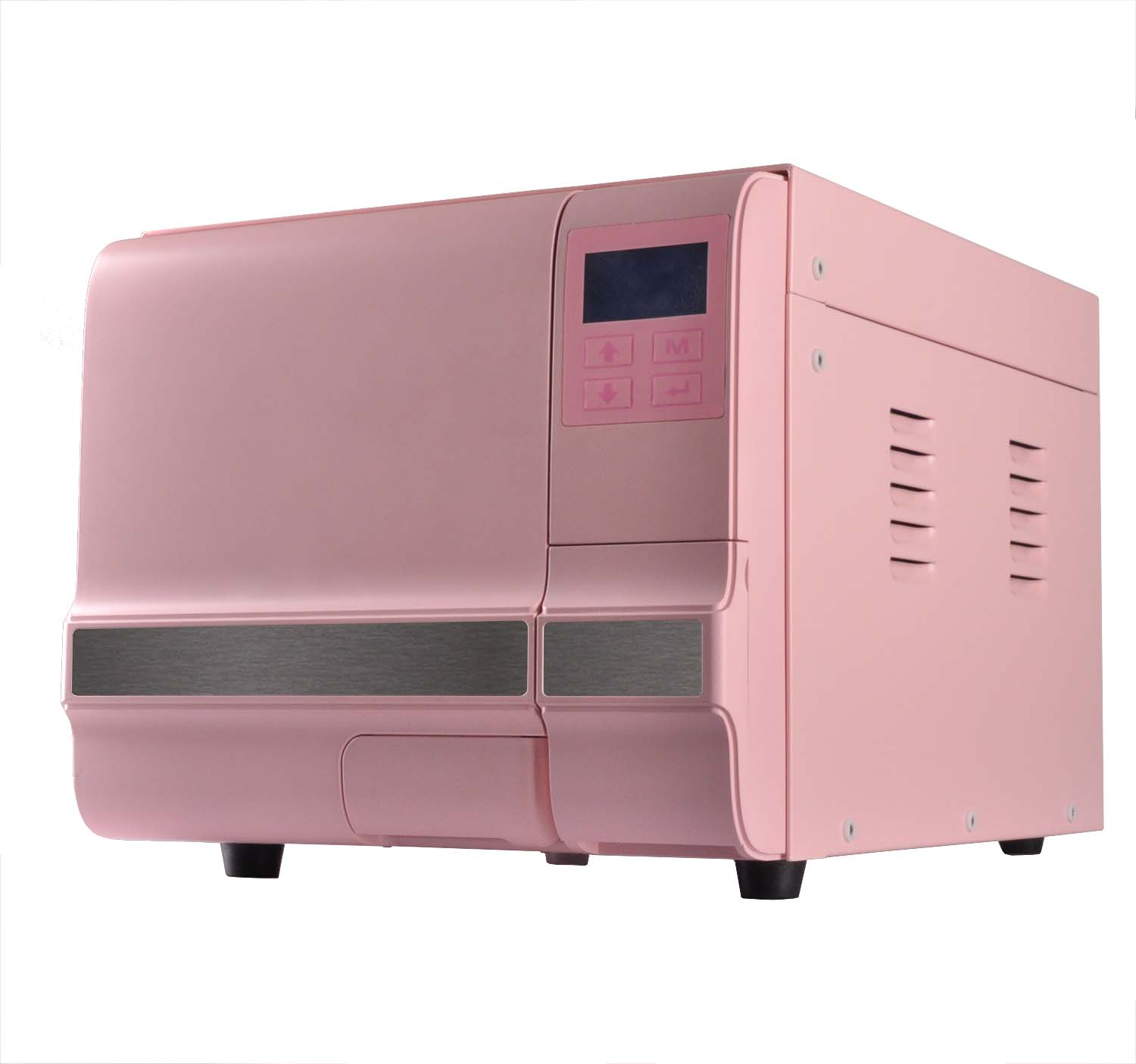

Autoclaves IC-D "Pink" Series Class B

Digital benchtop steam sterilizers with Class B pre & post vacuum type

IC-D line autoclaves, Green series.

Identical models to those of the standard IC-D line, but with green structure

Class B digital autoclaves available in 4 different capacities with pre & post vacuum functions.

Equipped with electronic door safety lock.an integrated printer is available as an optional accessory.models of excellent quality, robust and accurate with simple and fast use.

Overview

Benchtop steam sterilizers with Class B pre & post vacuum type, complies with the European standard EN13060
These autoclaves require minimal bench space making it an idea sterilization solution for small clinic such as dental, veterinary, beauty, podiatry and microbiology requirement

Excellent Performance

Full automatic table top autoclave with pre-set programs
Complies with European standard EN13060
Working very quietly
In built independent rapid steam generator ensures quick sterilization cycles
Rapid post sterilization vacuum drying
With one flash water tank and used one water tank
LCD screen displaying time, temperature and pressure, process alert and instrument conditions
User friendly interface
Self-initialization when work in different altitude
Multilanguage menu: Chinese, English, Spanish, German, Lithuanian, Polish, French, Czech, Hungarian, Romanian, Dutch, Latvian, Italian, Portuguese, Russian, Coratian

Safety and Monitoring

Double safety protection system prevents the cycle from starting if the door is not correctly locked
This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber
Pressure safety valve prevents over pressure in the chamber and steam generator
The power is automatically cut if a short circuit or electrical fault occurs
Able to detect and identify the exact cause of any problem, and to issue a specific error code to the operator
Water level main switch in the main tank controlling the min and max water level
Automatic warning for maintenance

Documentation

Printer (option): an internal printer is optional for all autoclaves
USB port : it is used for connecting a USB sticker, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically
Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time

Technical specifications

Code	IC/D/PIN208	IC/D/PIN212	IC/D/PIN218	IC/D/PIN223
Model Number	STE-8-D	STE-12-D	STE-18-D	STE-23-D
Chamber Dimension	Ø170x320 mm	Ø200x360 mm	Ø247x350 mm	Ø247x450 mm
Chamber Volume	8 L	12 L	18 L	23 L
Number of Trays	2/ Max. 3	2/ Max. 3	3/ Max. 4	3/ Max. 4
Material of Trays	Aluminium	Stainless Steel	Aluminium	Aluminium
Size of Trays	130x265 mm	156x295 mm	192x285 mm	192x380 mm
Voltage, Freq.	220/110V, 50/60Hz	220/110V, 50/60Hz	220/110v, 50/60Hz	220/110v, 50/60Hz
Power	2000 w	2000 w	2000 w	2200 w
Overall Dimension (WxHxD)	420x370x525 mm	420x370x595 mm	490x455x600 mm	490x455x690 mm
Weight	37 kgs	40 kgs	47 kgs	53 kgs

Cycles

Program	Temp. [·C]	Pressure [Mpa]	Sterilization time [min.]
SOLID	134	210	4
	121	110	20
LIQUID	134	210	10
	121	110	30
WRAPPED	134	210	10
	121	110	30
TEXTILE	134	210	10
	121	110	30
PRION	134	210	18
DRYING	-	-	-
B&D TEST	134	210	3.5
HELIX TEST	134	210	3.5
VACUUM TEST	-	-	-

Standards

93/42/EEC Directive on Medical Devices
97/23/EEC Directive on Pressure Equipment
EN 13060 Small Steam Sterilizers
EN 61326, EN 61000 Electromagnetic Compatibility
EN 61010-1, UL 61010-1Safety requirements
EN 61010-2-040, IEC 61010-2-040. Specific requirements for steam sterilizers used for treatment of medical materials
