Autoclaves IC-T Series Class B

The sterilization solution for larger instruments or larger loads

Tabletop “Class B” autoclaves with a bigger chamber which are 29 Liters 45 Liters, can provide the sterilization solution for bigger size instruments or bigger loads.

Overview

Benchtop steam sterilizers with Class B pre & post vacuum type, complies with the European standard EN13060
They have bigger chamber, can provide the sterilization solution for bigger size instruments or bigger loads, such as the instrument kit for dental implants etc.

Excellent Performance

Full automatic table top autoclave with pre-set programs
Electronic door locking
Complies with European standard EN13060
In built independent rapid steam generator ensures quick sterilization cycles
Rapid post sterilization vacuum drying
With one flash water tank and used one water tank
LCD screen displaying time, temperature and pressure, process alert and instrument conditions
User friendly interface
Self-initialization when work in different altitude
Choice of language setting including: English, Spanish, German, Polish, French, Hungarian, Romanian, Dutch, Lithuanian, Lavian, Czech, Italian and Chinese

Safety and Monitoring

Double safety protection system prevents the cycle from starting if the door is not correctly locked
This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber
Pressure safety valve prevents over pressure in the chamber and steam generator
The power is automatically cut if a short circuit or electrical fault occurs
Able to detect and identify the exact cause of any problem, and to issue a specific error code to the operator
Water level main switch in the main tank controlling the min and max water level
Automatic warning for maintenance

Documentation

Printer (option): an internal printer is optional for all ICANCLAVE autoclaves
USB port (option): it is used for connecting a USB stick, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically
Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time

Technical specifications

Order Code	IC/T/000229	IC/T/000245
Chamber Dimension	Ø 319x417 mm	Ø319x617 mm
Chamber Volume	29 L	45 L

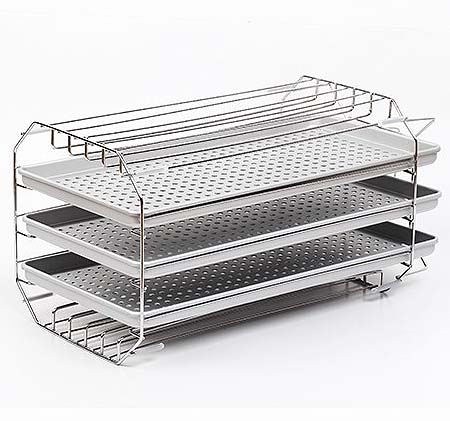

Number of Trays	3	3
Material of Trays	Stainless steel	Stainless steel
Size of Trays	240x340 mm	240x540 mm
Voltage, Freq.	220/110V, 50/60Hz	220/110V, 50/60Hz
POWER	2300 w	3800 w
Overall Dimension (WxHxD)	640x640x560 mm	840x640x560 mm
Weight	95 kgs	115 kgs

Cycles

Program	Temp. [·C]	Pressure [Mpa]	Sterilization time [min.]
SOLID	134	210	4
	121	110	20
LIQUID	134	210	10
	121	110	30
WRAPPED	134	210	10
	121	110	30
TEXTILE	134	210	10
	121	110	30
PRION	134	210	18
DRYNG	-	-	-
B&D TEST	134	210	3.5
HELIX TEST	134	210	3.5
VACUUM TEST	-	-	-

Standards

93/42/EEC Directive on Medical Devices
97/23/EEC Directive on Pressure Equipment
EN 13060 Small Steam Sterilizers
EN 61326, EN 61000 Electromagnetic Compatibility
EN 61010-1, UL 61010-1Safety requirements
EN 61010-2-040, IEC 61010-2-040. Specific requirements for steam sterilizers used for treatment of medical materials
