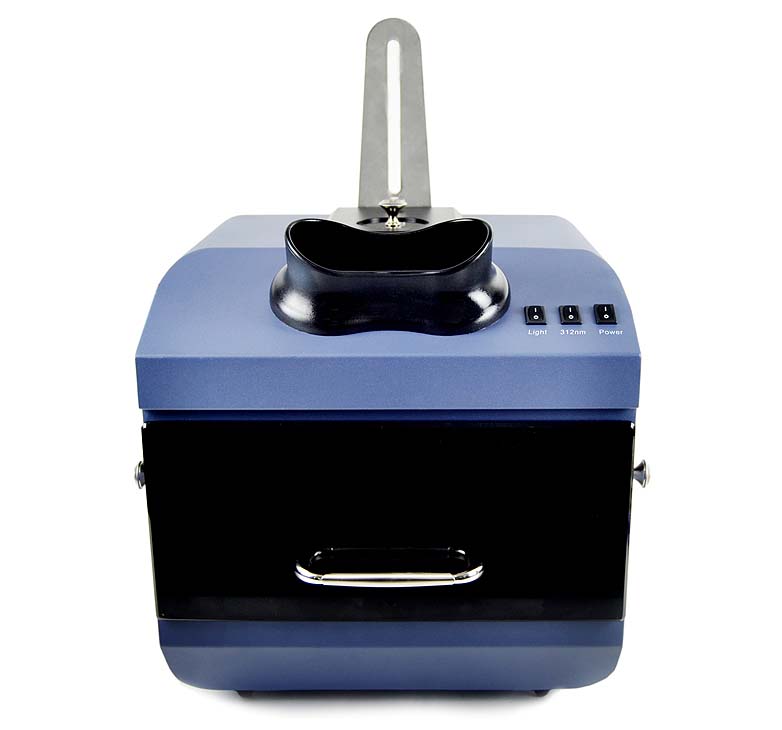

Black-box type UV analyzer
Fully enclosed with high quality metal black-box
Black-box type UV analyzer can send out long and short wave uv light with high UV intensity ,good stability and easy operation.
It’s reliable and popular among customers.
Mainly used in scientific research, production and other fields.
Use widely available in biochemistry, medicine, samples of DNA, RNA electrophoresis gel observation analysis, detection of protein, nucleotide, etc.
Features
- Instrument is installed 254 nm and 365 nm UV light source
- Transmission of uv light use 312 nm UV light bulb be arranged closely
- 312 nm wavelength has small damage to the sample with high sensitivity.
- Fully enclosed with high quality metal black-box
- No need to operate in darkroom
- Convenient to use, simple to operate.
- Equipment can be installed digital camera to shoot and take photos
- Drawer type table is convenienttotake samples
- Left and right sides of the opening door is convenient for visual operation
Applications
It can be widely used in genetic engineering, molecular genetics, microbiology, biological products, animal husbandry and medicine and health, pharmaceutical drug research and verification.
It is also applicable to epidemic prevention departments, food industry, textile, rubber oil prospecting industry, archaeological identification marks inspection, verification counterfeit fake tickets.
Apply for fluorescence analysis and verification department. It's the necessary instrument to be engaged in the modern scientific research departments and inspection supervision department .
Technical specifications
| Code |
MB/016/003 |
| Wavelenght |
- 365 nm
- 254 nm
- 312 nm optional |
| Transmission filter size |
200×150 mm |
| Observation window size |
140×60 mm |
| Lamp life |
>5.000 h |
| Voltage |
AC 220V/AC 110V,50Hz |
| Power |
≤6W |
| Dimensions |
350x315x520 mm |
| Peso |
6 kg |
