Block Heater/Cooler "Thermo-Lid"
Unique designed, smart and light, suit for various occasions
Mini block heater/cooler with heating cover.
The mini dry bath is a micro-processor controlled heating block with heater (heating types) and semiconductor refrigeration (cooling types) technology.
It adapts onboard use, smart, light and convenient for movement, suit for any kind of occasions.
Features
-
Unique designed. Smart and light, convenient movement, suit for various occasions
-
LCD simultaneously display setting and actual time and temperature. Temperature calibration function
-
Automatic fault detection function with buzzer alarm
-
24V DC input power, built-in over-temperature protection device
-
Various of blocks for optional choice
-
Convenient for replacement
-
Easy cleaning and disinfection
Technical specifications
| Code |
MB/004/007 |
| Temperature control Range |
-10°C ÷ 100°C |
| Temp. Stability |
≤±0.5℃ (100°C)
≤±0.3℃ (40°C) |
| Block Temp. Uniformity |
≤±0.3℃ |
| Temp. Display Accuracy |
0.1℃ |
| Heating Speed |
≤15 min (20℃ to 100℃) |
| Cooling Speed |
≤30 min (R.T. decrease 20°C) - @R.T. 26°C |
| Heating cover |
YES |
| Time Range |
1 sec ÷ 999 sec
or 1 min ÷ 1.000 min |
| Voltage |
DC24V adapter |
| Power |
120 W |
| Dimension (WxDxH) |
110x 156×103 mm |
| Net Weight |
1,4 kg |
Aluminium blocks (optional accessories)
| Code |
Description |

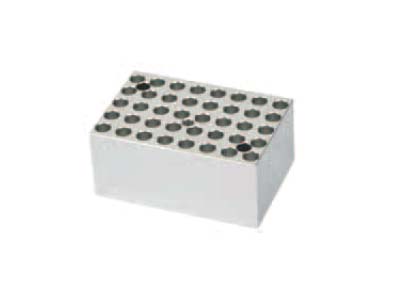

| MB/004/008 |
Block for 0,2 ml microtubes 40 holes Ø 6,1 mm conical bottom |

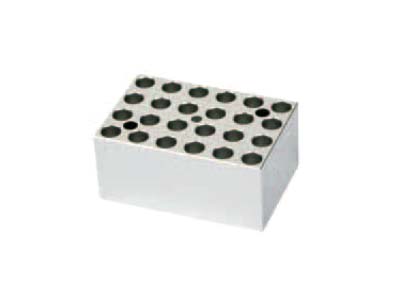

| MB/004/009 |
Block for 0,5 ml microtubes 24 holes Ø 8 mm conical bottom |

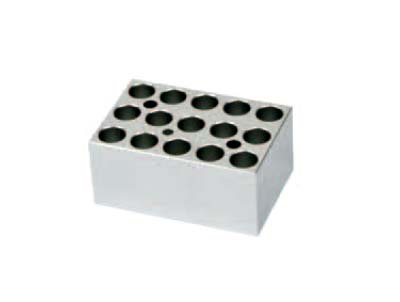

| MB/004/010 |
Block for 1,5 ml microtubes 15 holes Ø 10,8 mm conical bottom |
| MB/004/011 |
Block for 2,0 ml microtubes 15 holes Ø 10,8 mm round bottom |

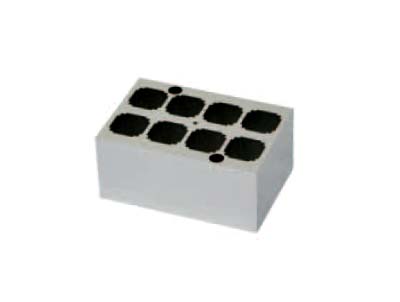

| MB/004/012 |
Block for cuvettes 8 holes 12,5×12,5 mm |

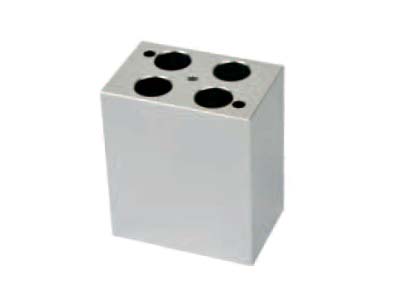

| MB/004/013* |
Block for 15 ml tubes 4 holes Ø 16,9 mm flat bottom |

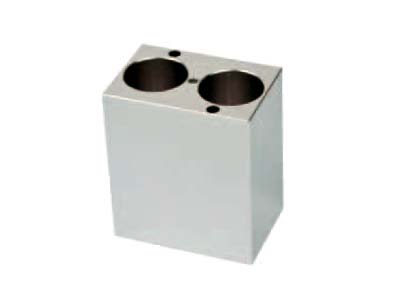

| MB/004/014* |
Block for 50 ml tubes 2 holes Ø 29,2 mm flat bottom |
*The MB/004/013 and MB/004/014 block codes, are not standard block; for their height the lid cannot be closed
