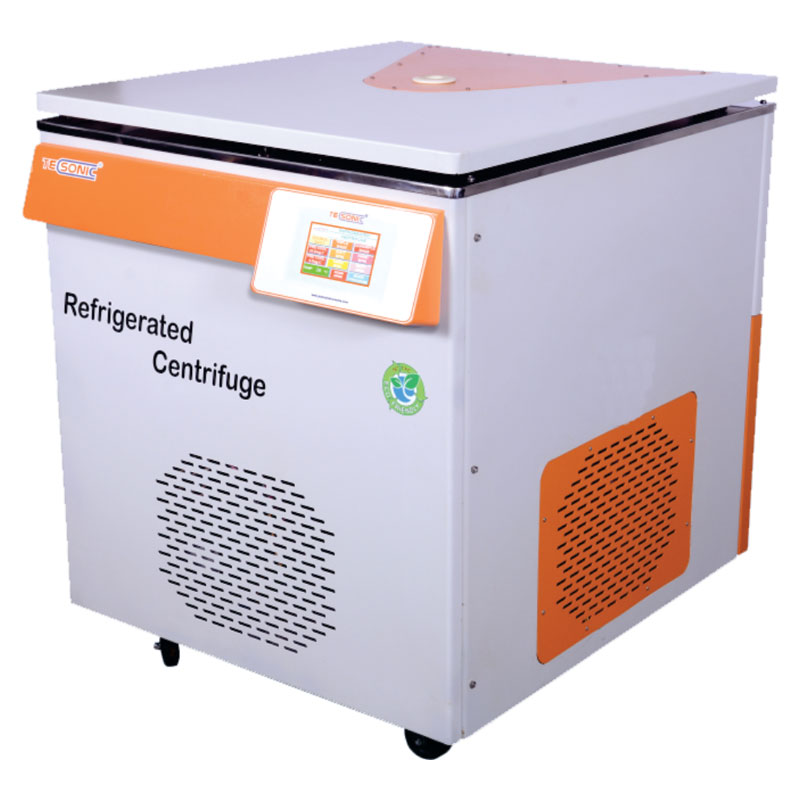

Blood Bank Refrigerated Centrifuge

Designed for blood banks components separation room

Microprocessor controlled based Blood Bank Refrigerated Centrifuge is designed for blood banks components separation room.

The instruments is specialized in separating blood component like Packed cells, Platelet rich plasma, Platelet concentrate, Cryprecipitate and buffy coat separation.

The instruments outer body is made of heavy gauge Mild steel duly powder coated with stainless steel (304) Inner chamber and prompt PUF insulation to ensure accurate cooling inside the chamber and built in brush less induction drive motor ensures low level of vibration and noise with smooth acceleration / deceleration.

Features

Program up to 99 . Precise speed control and reproducibility
Imbalance detector with cut-off
Password Protected Parameter Setting for authorised access
Audiovisual Alarm for process complete, imbalance & process terminate
Brush-less induction motor with frequency drive
Pre setting of speed, temperature and time
Safety lid interlock to prevent cover opening during centrifugation
Multicolor TFT Graphic of Set and Process Value of RPM, Temp., Time
Acceleation & Deceleration with RCF indicator
2 Pre cooling Program ie. 22°C & 4°C
Integrated Soft Key LID opening system with Extra safety manual opening in case of power failure
Viewing window for RPM Calibration . Safety Gas hinges to prevent immediate LID drop

Rotor configuration

Code	Rotor Detail	Max RPM	Max RCF	Bucket

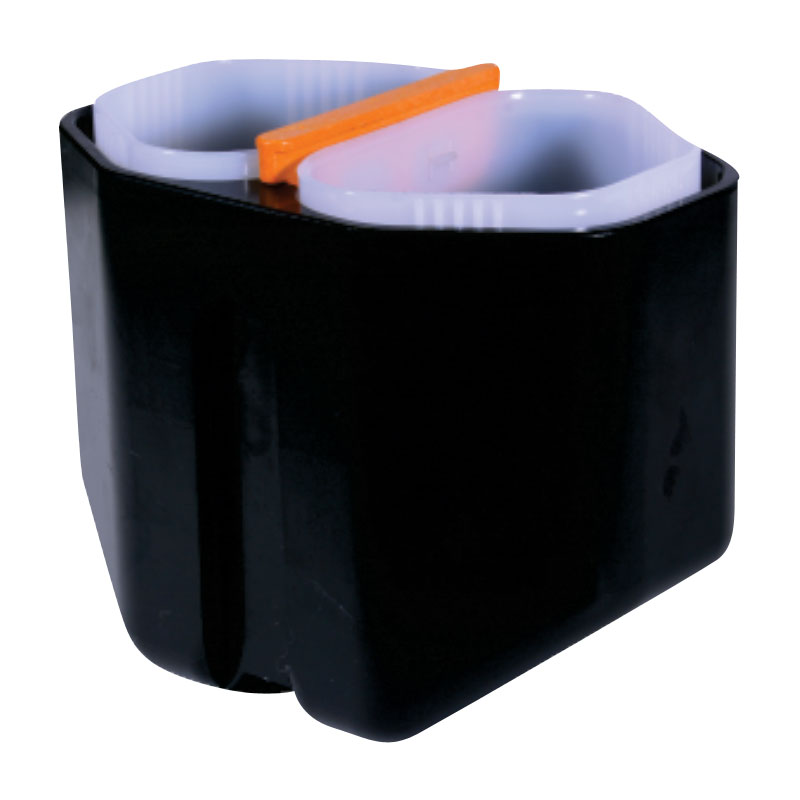

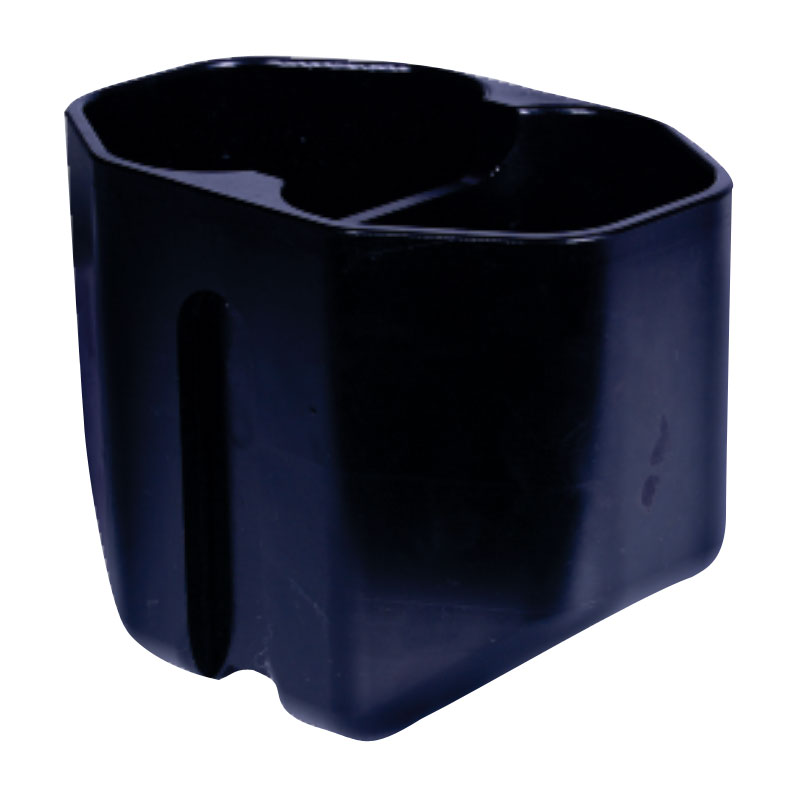

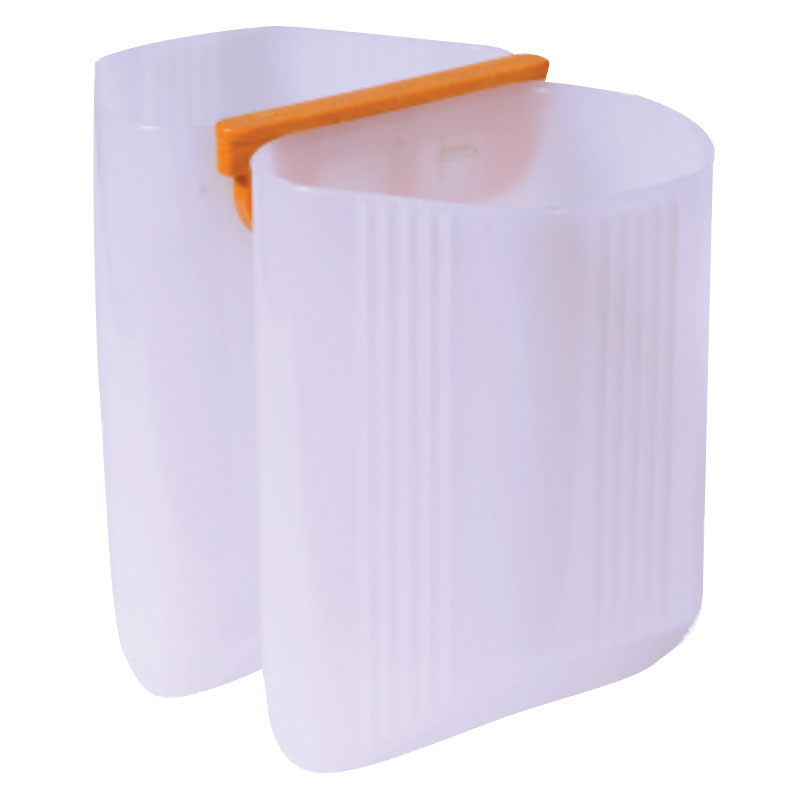

JH/TB/RC/070	4 place aluminium swing out rotor head to hold 4 metal carier having capacity to hold 2 Bags with plastic bucket & wind shield of 4 mm thick	4400	6125	1000 ml X 8

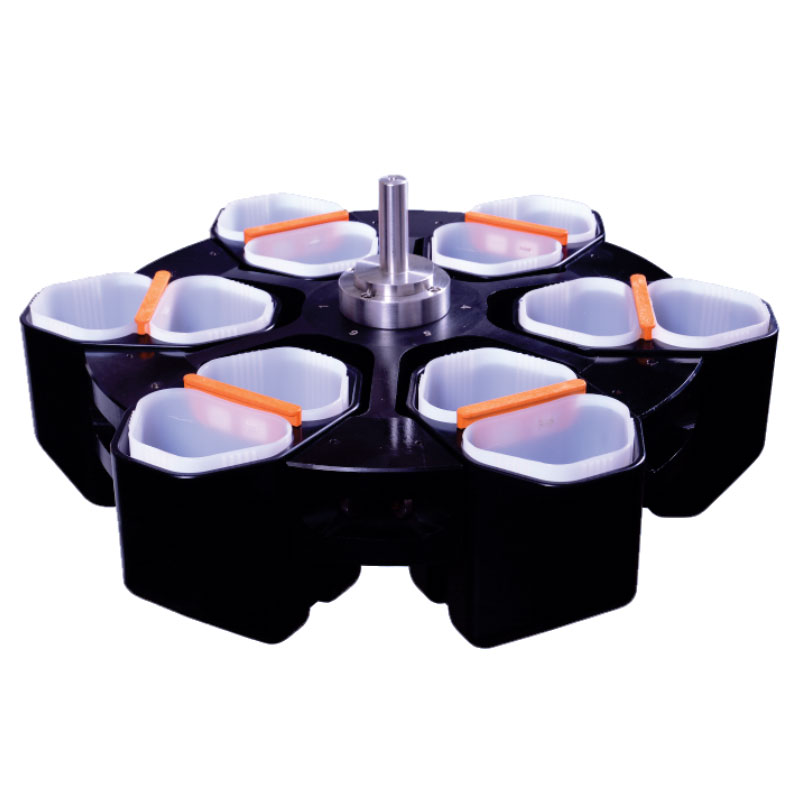

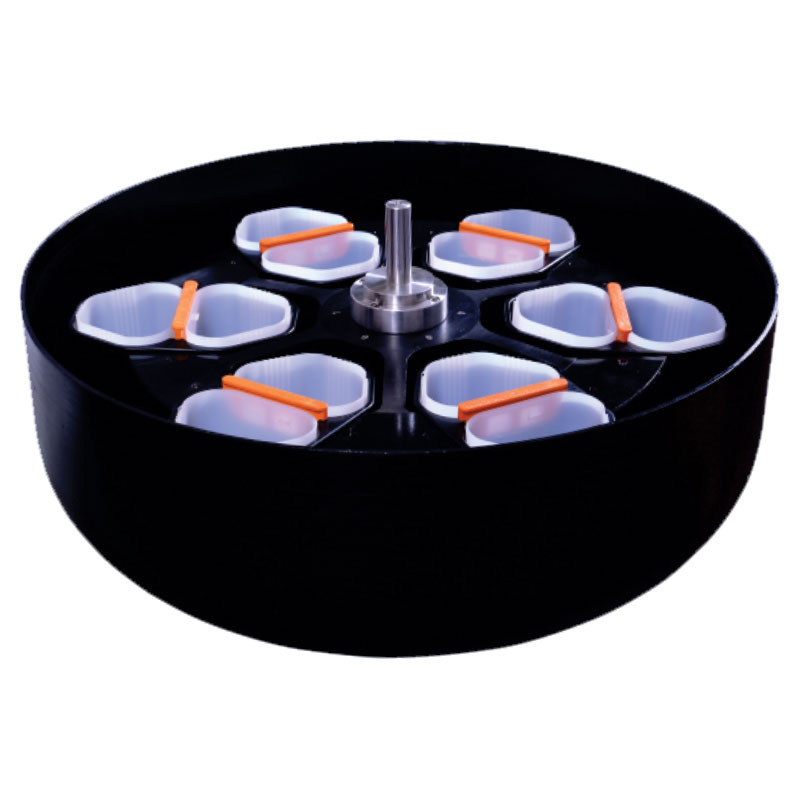

JH/TB/RC/090	6 place aluminium swing out rotor head to hold 6 metal carier having capacity to hold 2 Bags with plastic bucket & wind shield of 4 mm thick	4400	6385	1000 ml X 12

Technical specifications

Model No.	JH/TB/RC/070	JH/TB/RC/090
Width	875 mm	875 mm
Depth	990 mm	990 mm
Height	1015 mm	1015 mm
Input power supply	220-240V AC, 50Hz Single phase	220-240V AC, 50Hz Single phase
Temp Range	4°Cto 22.0°C	4°Cto 22.0°C
Weight	400 Kg Approx	400 Kg Aprox
Recommended Voltage Stabilizer	7.5 KVA	7.5 KVA

Optional Accessories

Data logging system of temp, time, RPM, ACC & DEC through RS 232/ 485 or USB port to collect all data of the centrifugation
Integrated Bar code system with software
