CLINICAL CENTRIFUGE 4.000 rpm

Versatile clinical centrifuge with microprocesso & brushless motor

This Centrifuge is an ideal centrifuge for blood processing .

The swing rotor is best suited with gel tubes where clear flat line separations are needed & the 2 fixed angle rotors can be used for other blood separations where the angled separation are fine.

It is widely used in PRP/PRF separations used in various medical applications.

The well designed compact centrifuge uses a long lasting maintenance free BLDC motor delivering speed upto 4000 RPM. The centrifuge is equipped with programming feature & safety features like imbalance detection & lid lock safety.

Features

  • Brushless DC motor for maintenance free long life
  • Microprocessor controlled: enable digital variable speed and time setting with last run memory function
  • Single instrument for different work protocols with appropriate choice of rotors
  • Precise rpm setting from 500 to 4.000 rpm with least count of 10 rpm
  • Automatic imbalance detection for safe operations
  • Lid lock safety-lid releases (automatically) after run completion
  • Compact design with low loading height for ease of operation
  • Programming feature: user can save and run up to 99 defined programs (protocols)
  • One touch short spin operation & change over from rpm to RCF
  • Supplied with reduction adaptors for various sizes of blood collection tubes, 9 ml, 6 ml, 4 ml, 3 ml and 2 ml tubes
Brushless DC motor for maintenance free long life
Digital display for ease of reading the parameters
Automatic imbalance detection for safe operation
Microporcessor controlled for accurate speed under
Single instrument with option of selecting 3 rotors

To order

Code Description
NT/0C4/000 Clinical centrifuge 4.000 rpm (without rotor)

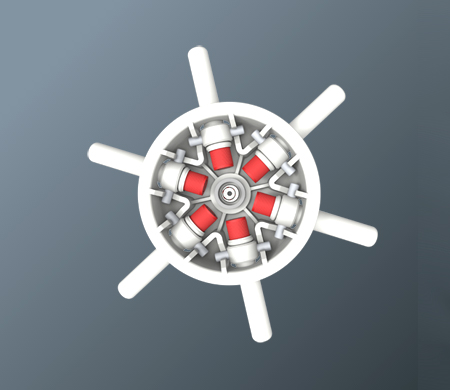

NT/00R/S06 6×10 ml swing rotor - RCF 2.270×g

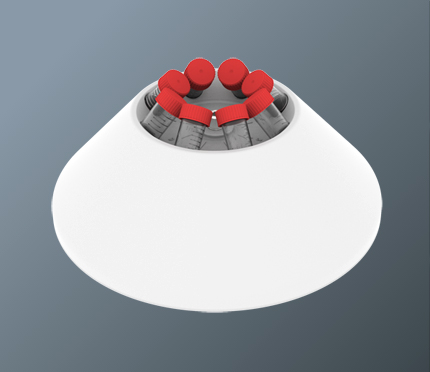

NT/00R/A08 8×15 ml fixed angle rotor - RCF 1.950×g

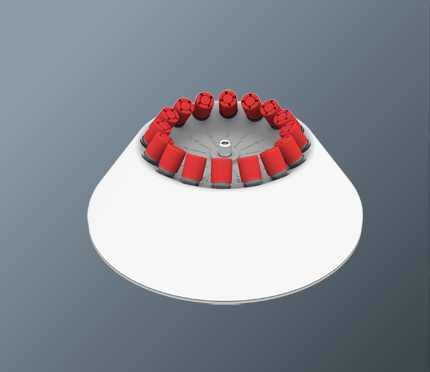

NT/00R/A16 16×10 ml fixed angle rotor - RCF  2.180×g

Technical specifications

Rotors - 6×10 ml Swing rotor
- 8×15 ml Fixed angle rotor
- 16×10 ml Fixed angle rotor
Max speed 4.000 rpm
Motor type Brushless DC
Digital display YES
Speed setting 500÷4.000 rpm in steps of 10 rpm
Timer setting 1÷999 mins / Infinite mode
Programmable feature User can set and save up to 99 user defined programs (protocols)
Lid lock safety YES
Imbalance detection YES
Dimensions 415×355×173 mm
Weight 7,7 kg (without rotor)
