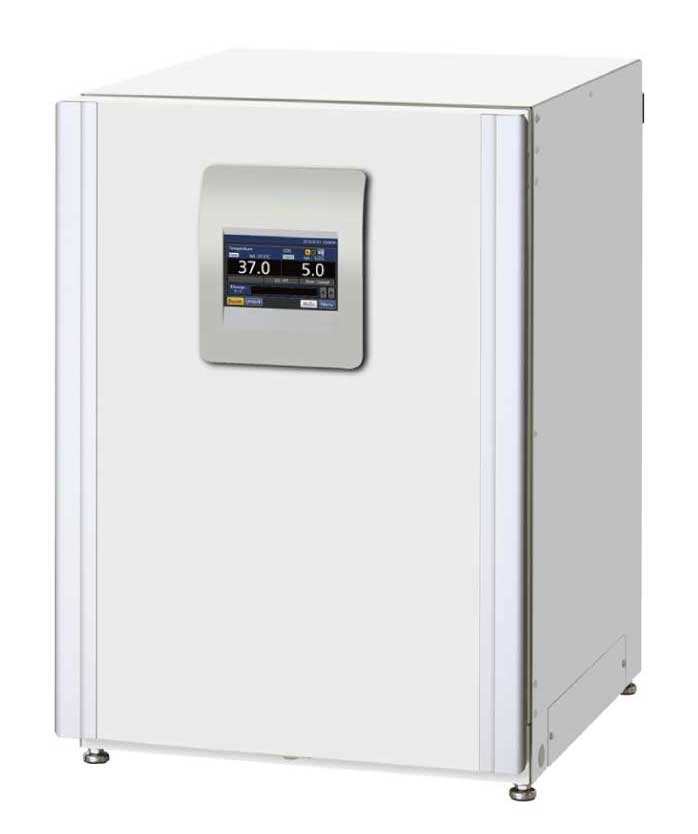

CO2 incubator - Volume 165 l
Optimisation of cell culture results and reproducibility
The CO2 incubators in this line offer precise control of the CO2 concentration and accurate, uniform and highly responsive temperature control within the chamber.
During cell culture, the continuous combined action of the germicidal interior in and the optional UV lamp prevents contamination.
Quick and easy cleaning and maintenance
The interior of the incubator is easy to clean and offers more space for plates thanks to new integrated shelf supports. Compared to the previous model, the number of internal parts has been reduced by around 80%.
Precise control and intelligent monitoring

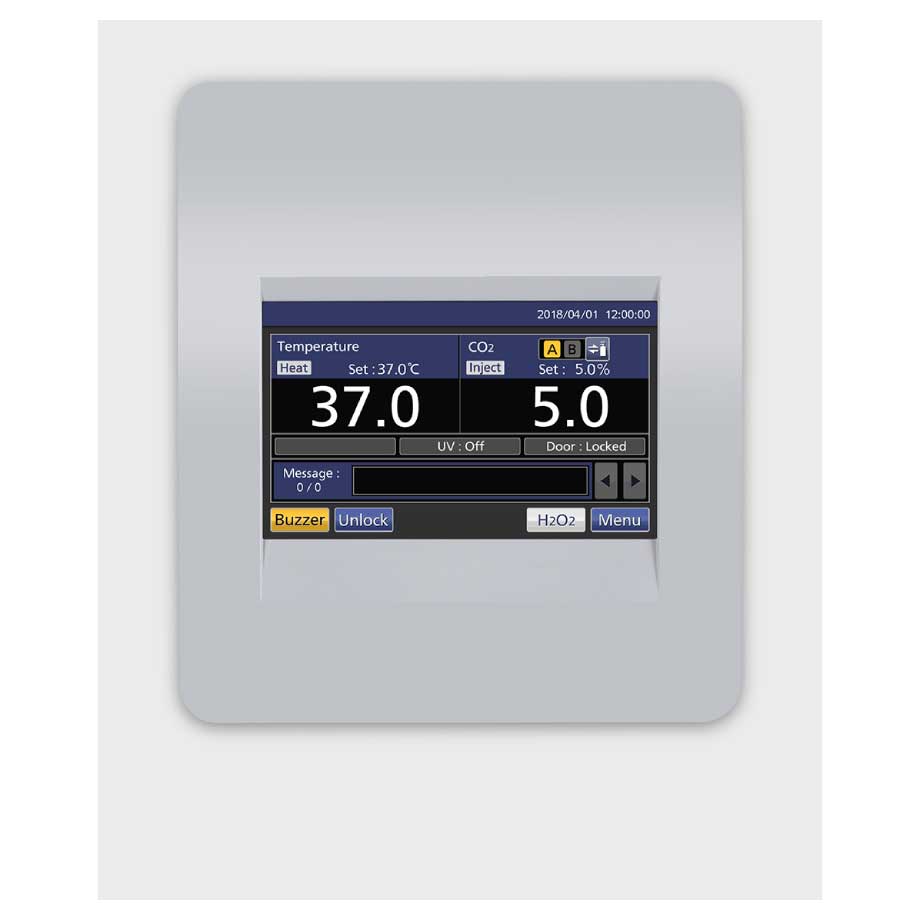

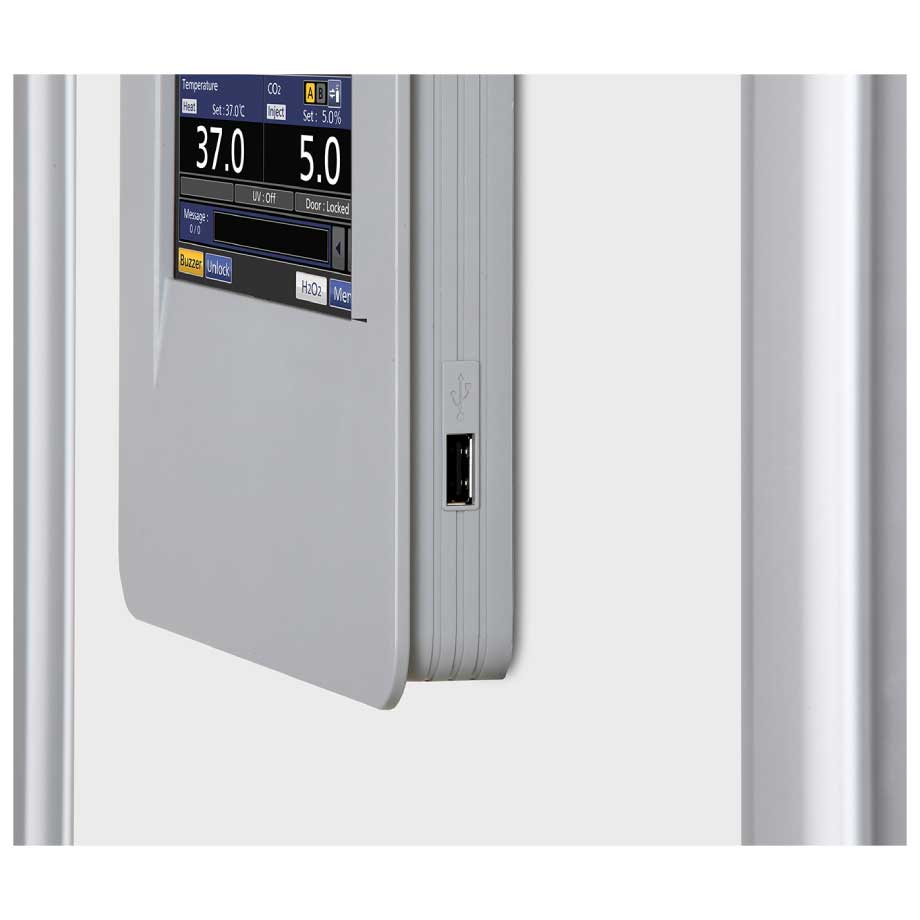

The OLED display with alphanumeric keypad enables convenient and safe user control. It provides visibility of internal conditions, such as CO2 level and temperature. Thanks to a USB port, data can be easily transferred.
Precise and regulated environment
The combined action of the inside in and the optional UV lamp prevents contamination. The D.H.A. (Direct Heat and Air Jacket System) regulates the temperature, while the thermal conductivity (TC) sensor monitors the CO2 level.
Efficient workflows

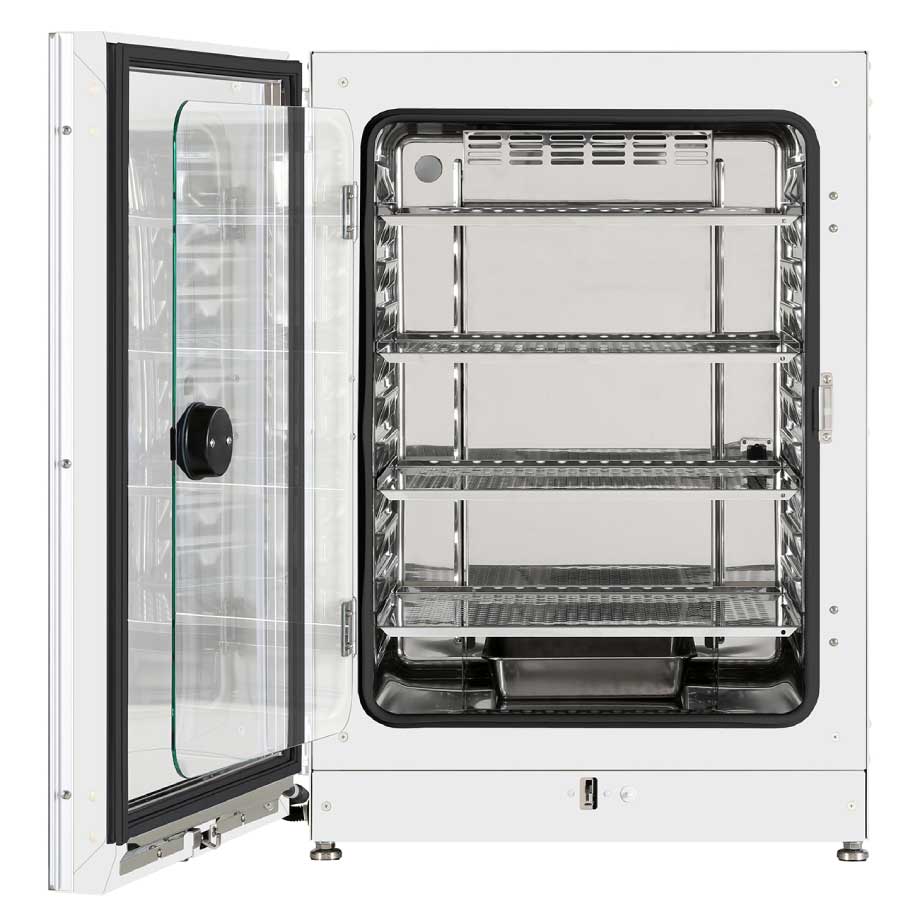

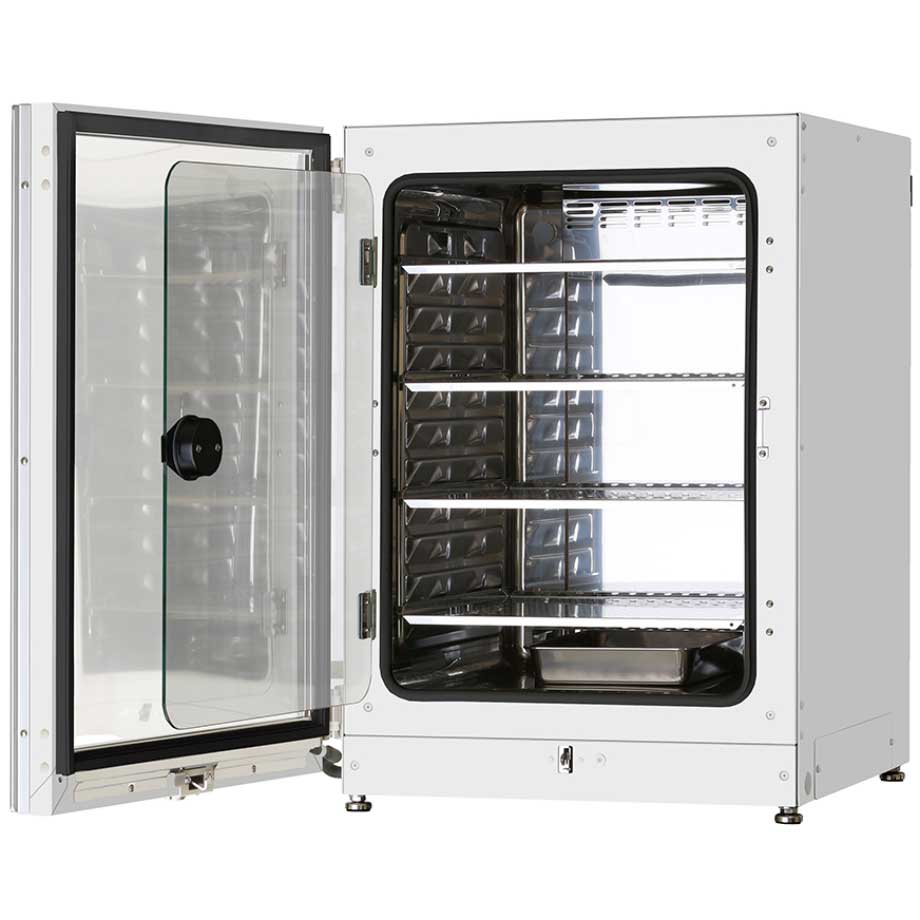

The inner chamber is much easier to clean, thanks to fully rounded corners and a design that does not require the removal of many internal parts. This makes laboratory procedures more efficient, with less downtime for the incubator.
Simple and intuitive operation
Standard equipment includes adjustable audible and visual alarms, integrated system diagnostics and preventive performance monitoring. The password-protected control panel ensures security and minimises the risk of accidental changes in reference values.
Optimal cell growth
Excellent quality and performance promote cell growth and offer optimal results and reproductivity. Ideal for the most rigorous and sensitive protocols.
Active background decontamination
Copper-coated stainless steel alloy offers the germicidal properties of copper as well as the corrosion resistance of stainless steel. The optional isolated UV lamp decontaminates circulating air and water in the humidification tray without damaging the cultured cells.
Condensate management
The condensate rod, equipped with a unique antibacterial coating and controlled by Peltier technology, condenses water vapour on its surface, which then drips into the humidification tray, preventing the formation of unwanted condensation and possible contamination in the chamber.
Technical specifications
| External dimensions | 620×730×905 mm |
| Internal dimensions | 490×523×665 mm |
| Volume | 165 l |
| Weight | 74 kg |
| Temperature range | Tamb da +5°C a +50°C, ±0,1°C |
| Temperature uniformity | ±0,25°C |
| CO2 Range control | da 0 a 20%, ±0,15% |
| Moisture level and fluctuation | 95±5 % U.R. |
| Temperature sensor | Termistore |
| CO2 Sensor | TC |
| Display | Digital (OLED white graph) |
| Insulating material | Acrylonitrile-styrene copolymer |
| Heating method | Sistema ad intercapedine ad aria e calore diretto |
| Internal door | 1 (toughened glass) |

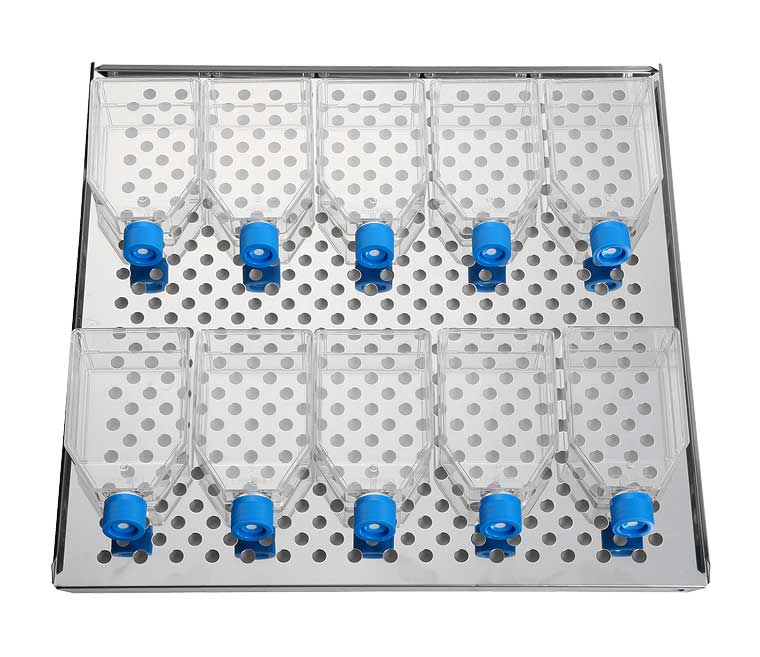

| Shelves | 3 copper-coated stainless steel alloy |
| Shef dimensions (LxPxA) | 470 × 450 × 12 mm |
| Maximum load per shelf | 7 kg |
| Access hole | 1 |
| Access hole position | On the back left top |
| Alarms | (R = remote alarm, V = visual alarm, B = buzzer [sound] alarm) |
| Power failure | R |
| Out temperature setting | V-B-R |
| High temperature | V-B-R |
| Out CO2 setting | V-B-R |
| Open door | V-B |
| Power supply | 230 V / 50 Hz |
| Noise level | <29 dB |
To order
| Code | Description |
| PH/170 | CO2 incubator - Capacity 165 l |
