Complete filtration system configuration

Designed for the filtration of liquid chromatography buffers and solvents under vacuum

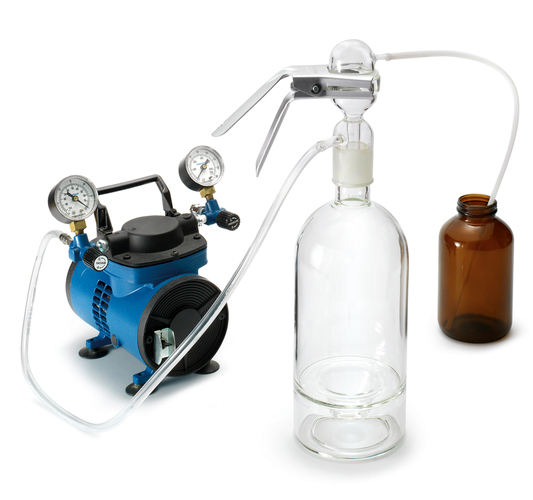

Filtration System - Kit - 47 mm, Bottle-to-Bottle Filtration System

This  Filtration System has been designed for the filtration of liquid chromatography buffers and solvents under vacuum.

  • The system uses a 0.45 µm membrane filter to eliminate particles which can shorten column life
  • Vacuum filtration with this system also removes a large portion of dissolved gasses from buffers, reducing the risk of air bubbles interfering with LC instruments
  • With automatic and continuous filtration, there is no need to add liquid into a funnel as filtration progresses
  • Filtration occurs in a closed system, which is important when filtering hazardous fluids
  • If open funnel filtration is required, the 300 mL funnel replaces the vacuum cover

Features & Benefits

  • Automatic, continuous solvent and buffer filtration eliminates the need to pour during filtration
  • 2L receiving flask includes plug and tubing for storage, eliminating filtered buffer transfer, reducing labor and lessening contamination risk
  • Conical 2L flask bottom allows access to all filtered solvent or buffer

Applications

  • Mobile Phase Preparation, Buffer Filtration

To order

Code Description
MK/XX16/147/00 47 mm, Bottle-to-Bottle Filtration System
Configuration elements:
-  Ground Joint Flask, 2L, Conical bottom
- Glass Base and Cap, 47 mm, Glass frit support
- Glass cover, 47 mm, For use with Millipore MilliSolve Kit
- Spring Clamp, 47 mm, Aluminum
- Tubing for Solvent/Buffer, PTFE, 70 cm
- Glass funnel, 300 mL, 47 mm, Borosilicate, Ground glass seal
 - Alignment Guide, 47 mm, 5/PK
