Customisable magnetic stirrer

Design the set-up plate by yourself.

This magnetic stirrer combines the excellent technical features of the popular and proven magnetic stirrers with the option of creative individualization.

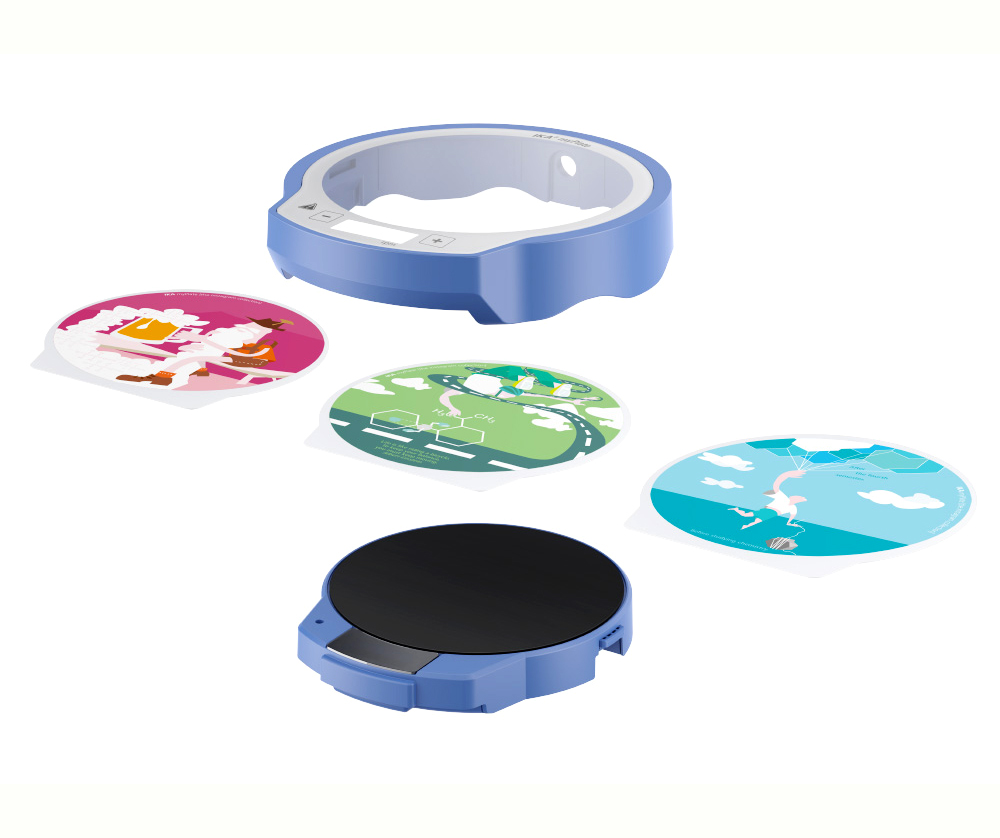

Personal interchangeable frame
Design the set-up plate by yourself
You receive the device with a decorative image template, that can be exchanged easily through the convenient interchangeable frame
Some people have family photos on their desk - you convert one of the best magnetic stirrers from your day-to-day lab work into a canvas for your favorite pictures.

Features

High chemical resistance
Electronically controlled motor
Digital speed indicator
Speed range between 100 and 2500 rpm

Technical data

Code	IK/02500/5156
Stirring quantity max. per stirring position (H₂O)	1.5 l
Motor rating output	2 W
Direction of rotation	left
Speed display set-value	LED
Speed display actual-value	LED
Speed control	Touch key
Speed range	100÷2500 rpm
Setting accuracy speed	10 rpm
Stirring bar length max.	30 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)	2 +K
Set-up plate material	glass
Set-up plate dimensions	Ø 135 mm
Dimensions (W x H x D)	152×30×164 mm
Weight	0.76 kg
Permissible ambient temperature	5÷40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
Voltage	100÷240 V
Frequency	50/60 Hz
Power input	4 W
Power input standby	1 W
DC Voltage	12 V=
Current consumption	300 mA
