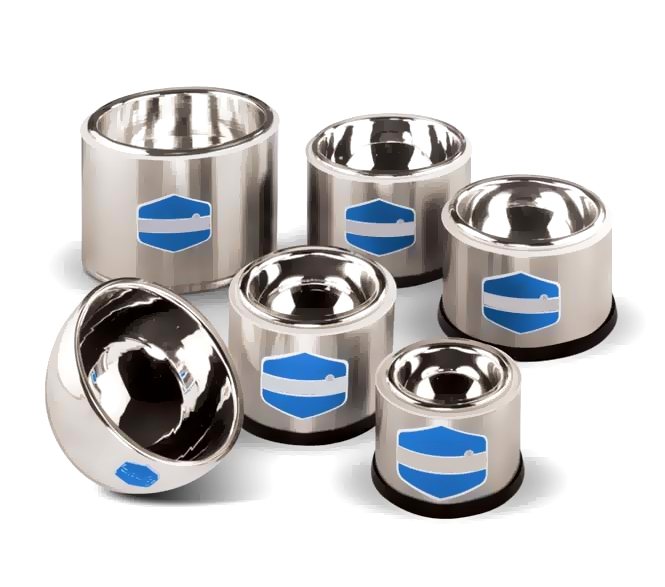

Dewar cryogenic flasks shallow form
Satin stainless steel, low open shape without lid
Wide-mouthed shallow glass Dewars, dish-shaped, fitted in stainless steel protective containers.
Can be used with magnetic stirrer, designed to accept standard boiling flask up to 2 litres in capacity, for rapid freezing tempering of stirring rods, pestles, etc.
The shallow form configuration allows for minimum amount of coolant to be used.
Dewar flasks in containers - all utilising the proven borosilicate glass inner vessels.
Offered in hygienic satin finish stainless steel.
Designed for safe use and transportation of liquid gases, all Dewar flasks are manufactured to exacting standards and represent the highest quality units available today for laboratory use.
The Dewars are designed with practicality and safety in mind.
Technical specifications
| Code |
Capacity (ml) |
Inner size Ø×h (mm) |
Total size (mm) |
| DL/3123/0170 |
170 |
Ø 77×50 |
Ø 105×75 |
| DL/3123/0380 |
380 |
Ø 100×65 |
Ø 130×90 |
| DL/3123/0570 |
570 |
Ø 115×70 |
Ø 150×95 |
| DL/3123/1000 |
1.000 |
Ø 138×80 |
Ø 175×105 |
| DL/3123/1900 |
1.900 |
Ø 155×120 |
Ø 186×138 |
