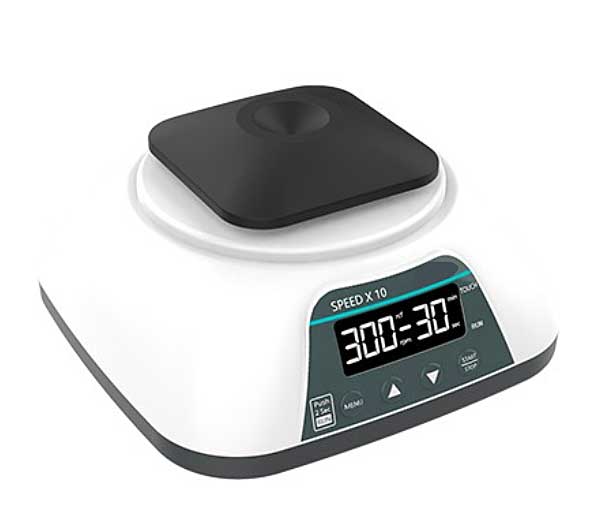

Digital Vortex/Mixer

Model with variable speed

Variable speed digital Vortex stirrer.

Instrument features.

  • Model with adjustable speed in the digital version: pressure operation on the cup or continuous operation
  • Compact, stable and equipped with a high-power "brushless" induction motor

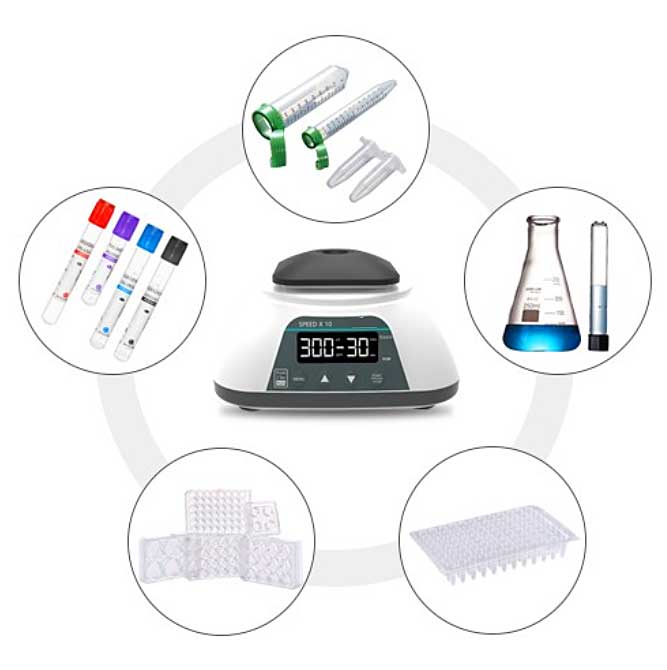

  • Wide range of media available. Instrument is configurable to meet all laboratory needs
  • Versatile instrument for any protocol requiring rapid and vigorous high-frequency agitation

Technical specifications

ModelDigital
Modes of operationTouch/run
ControlPWM speed adjustment
Displayyes
Motor "Brushless"
Amplitude4,5 mm (circular oscillation)
Max capacity 12 x 5/10/15 ml / 30x2 ml / 96x0,2 ml
Speed range0÷3000 rpm touch
100÷3000 rpm run
Timer 1÷99 min /1÷59 s
Protection classIP21
Power20 W
SupplyAC 100-240V / DC24V
Operating conditions5÷40°C / max 80% U.R.


To order

CodeDescription
JL/021/094Digital vortex mixer
JL/021/094/PKDigital vortex mixer "Full Set" version full equipment with supports

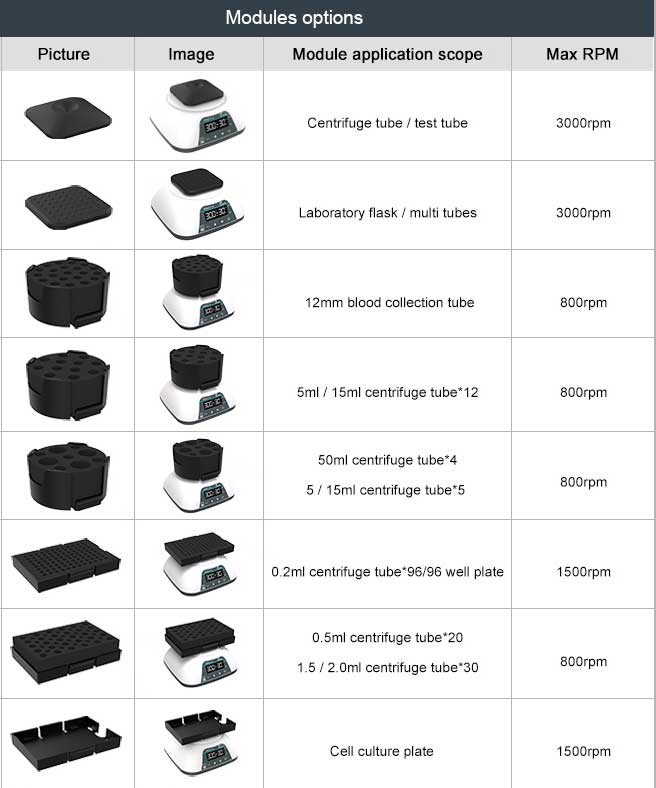

Accessories/Supports

CodeDescription
JL/0VM/501Centrifuge tube / Test tube
JL/0VM/502Flask / Multi tube
JL/0VM/503Φ12mm(Blood collection tube)*21
JL/0VM/50550m（l Centrifuge tube）*4
5m l/ 15ml（Centrifuge tube）*5
JL/0VM/5060.2m（l Centrifuge tube）*96
96 well plate
JL/0VM/5070.5m（l Centrifuge tube）*20
1.5 / 2.0m（l Centrifuge tube）*30
JL/0VM/507Cell culture plate
