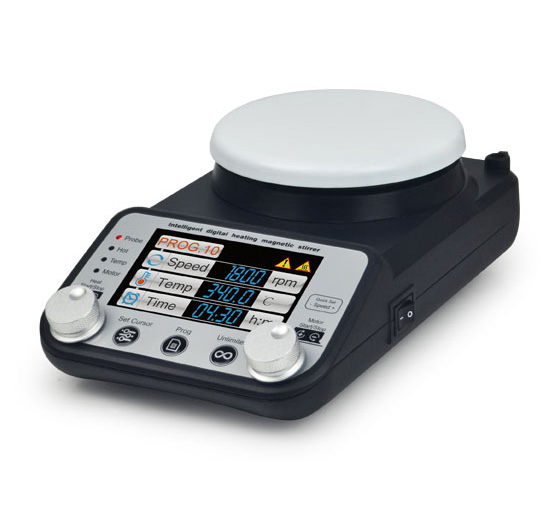

Digital hotplate stirrer

Magnetic intelligent color display heating stirrer

Magnetic intelligent color display heating stirrer.

Using specially made ceramic disc heating surface, beauty, anti-corrosion and easy to clean.

Unique heating method, the surface maximum temperature can reach 340 ° C.

Features

  • PID for temperature control, high accuracy of measurement, low overshoot, single button control
  • Inner and outer PT1000 thermometry
  • Silicon controlled rectifier for output
  • With couple broken protection function
  • The stirring function can be used for heating and stirring 50ml-20L standard or non-standard reaction bottles
  • Brushless DC motor, stable performance, low noise, long life and no sparks
  • Adopt aluminum alloy shell, high strength, quick heat dissipation, anti - corrosion
  • 30 ° slope control panel, suitable for seated and standing point of view
  • Magnetic stirring technology, low speed steady, high speed strong
  • Adopts 4.3-inch color screen holographic display, which is convenient and intuitive

Technical specifications

Code MB/013/000
Platform size Ø 137 mm
Platform material Enamel ceramic
Speed range 0÷1.800 rpm
Temperature range 30÷340°C
Temperature stability ±3℃
Timer 1 min ÷ 99 h 59 min
Stirring position 1
Max stirring capacity 20 l (H2O)
Max size of stirring bar 80 mm
External temperature sensor PT1000
Adjustable safety loop min. temp. 50°C
 Adjustable safety   loop max. temp. 350°C
Voltage AC 220 V /  AC 110 V, 50/60 Hz
Power 600 W
Dimensions (W×D×h) 160×270×90 mm
Weight 2,4 kg
