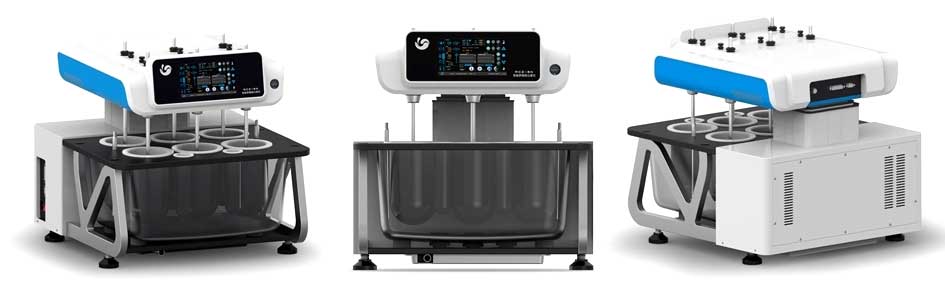

Dissolution Tester "Intelligent" 6 places

Model equipped with control panel with touch screen display

Pharmaceutical dissolution test instrument with ‘Intelligent’ configuration equipped with 6 stations for high accuracy, reproducibility and repeatability protocols.

Multi-level user access, audit trail, test record management; through the interface of the connection device, data can be printed or test reports can be issued via USB
Easy-to-use tool for managing the most common sample information
Constant temperature control in real time and with high accuracy; double protection against over-temperature conditions
Integrated temperature controller calibration function
Settings for starting heating at a specified time
Dissolution vessel and stirring rod are automatically centred with high accuracy
Adopts internationally advanced design protocols and manufacturing technologies
Ultra-modern design and compact, stable structure
Highly accurate microprocessor speed control, stable operation and low power consumption
Ideal for pharmaceutical industries, pharmaceutical research, teaching and university research, drug inspection departments
High-definition touch screen
Fault self-diagnosis function

Tecnical specifications

Stirring paddel swing amplitude	< 0,5 mm
Basket swing range	< 1 mm
Deviation between rotating rod and vessel axis	< 2 mm
Speed range	10÷300 rpm
Turn around	Clockwise/ counterclockwise
Steady speed error	< +/- 1 rpm/min
Temperature range	Tamb ÷ + 45°C
Temperature resolution	0,1°C
Sampling points	< 100
Timer	999 h / 59 min / 59 s
Numero of baskets	6
Basket dimensions	Altezza 185 mm / 1.000 ml
Power supply	AC 220 V / 50 Hz

To order

Code	Description
JX/0RC/Z6N	Dissolution tester "Intelligent" 6 places
