Heater/Mixer with one fixed block 24×1,5 ml
Programmable ramps allow for automatic execution of mixing and heating tasks

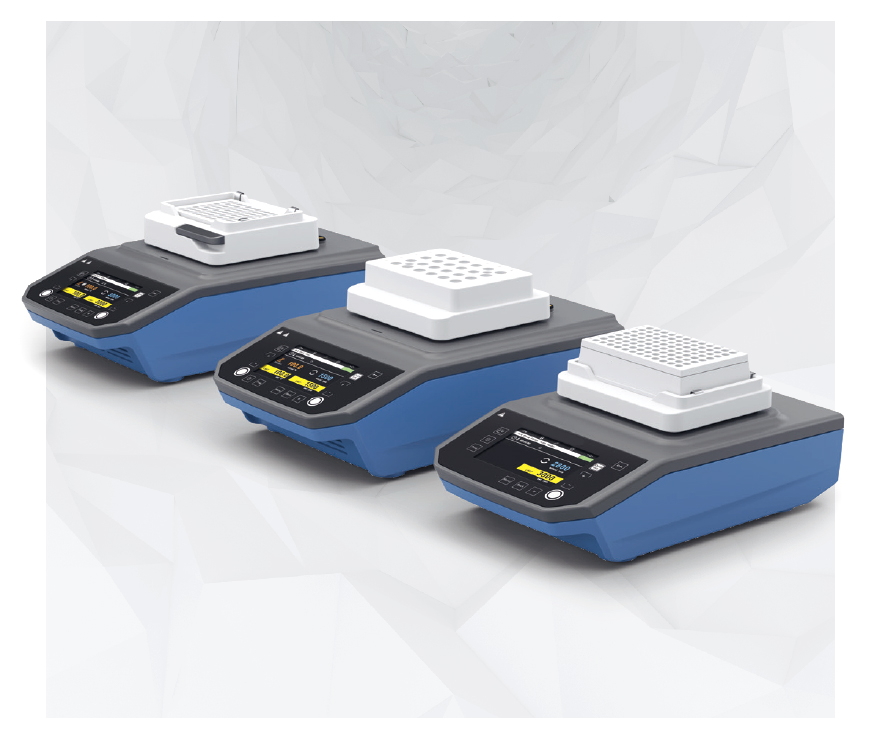

This heater/mixer is part of a new and powerful product family of thermoshakers available.
This instrument mixes and heats with a fixed insert for 24 x 1,5 ml tubes.
Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications.
No cross-contamination and an optimal mixing result.
In addition, it comes with numerous user-friendly features:

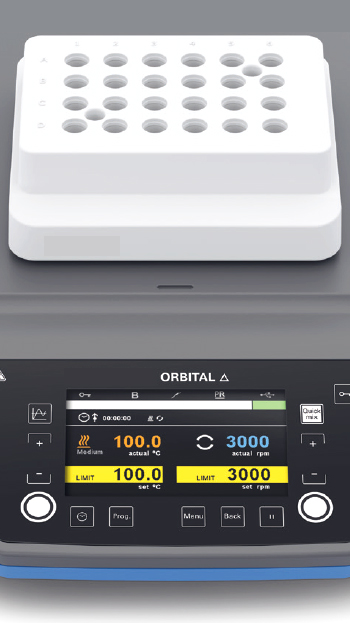

- Large and clear display with a convenient menu structure allows for intuitive operation
- Speeds of up to 1,500 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
- Two different speed modes for gentle heating of the samples
- Programmable ramps allow for automatic execution of mixing and heating tasks
- Smart speed adjustment according to insert, attachment and filling volume
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
Technical specifications
| Code |
IK/1000/6249 |
| Type of movement |
orbital |
| Shaking stroke |
3 mm |
| Maximun load |
0.3 kg |
| Permissible ON time |
100 % |
| Speed min (adjustable) |
300 rpm |
| Speed range |
0 - 1500 rpm |
| Speed display |
TFT |
| Speed deviation |
30 ±rpm |
| Speed control |
10 RPM Steps |
| Timer |
yes |
| Timer display |
TFT |
| Time setting min. |
1 s |
| Time setting max. |
6000 min |
| Operating mode |
timer, continuous and program operation |
| Heating temperature range |
room temp. +4° - 100 °C |
| Heat output |
100 W |
| Heat control |
TFT |
| Set temperature resolution |
1 ±°C |
| Temperature control accuracy |
0.5 ±°C |
| Temperature stability |
0.5 °C |
| Temperature homogenity |
0.5 (@ 20°C ... 45°C); 1.5 ±°C |
| Heating rate |
11 °C/min |
| Temperature display |
yes |
| Number of reaction vessels |
24x 1.5 ml |
| Dimensions (W x H x D) |
216 x 158 x 351 mm |
| Weight |
9.2 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 21 |
| RS 232 interface |
yes |
| USB interface |
yes |
| Voltage |
100 - 240 V |
| Frequency |
50/60 Hz |
| Power input |
240 W |
| Power input max. |
240 W |
