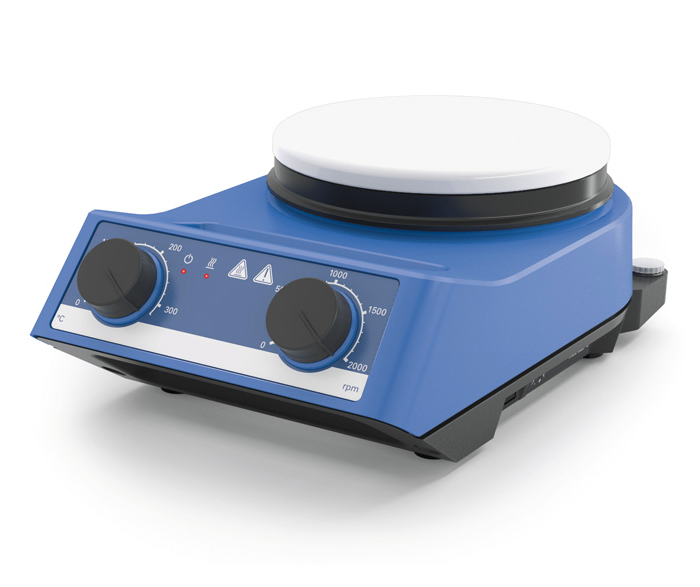

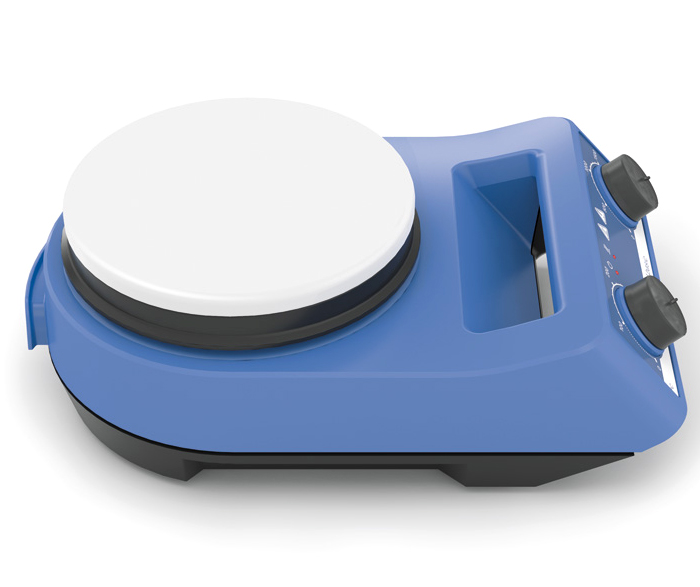

Heating magnetic stirrer 2.000 rpm / T 320°C

White ceramic heating plate ensures rapid heating and a very good chemical resistance

Newly designed, economic magnetic stirrer with heating.

Bushing according to DIN 12878 for connecting an electronic contact thermometer.

Highly accurate temperature control is possible with sensor placed directly in the medium.

High heat output of 600 watts and white ceramic heating plate ensures rapid heating and a very good chemical resistance.

Adjustable safety temperature from 100 to 360 °C.

Technical data

Code	IK/0502/9700
Stirring quantity max. per stirring position (H₂O)	15 l
Motor rating output	2 W
Direction of rotation	left
Speed display set-value	scale
Speed control	Turning knob
Speed range	100 - 2000 rpm
Stirring bar length	20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)	28 +K
Heat output	600 W
Temperature display set-value	scale
Temperature unit	°C
Heating temperature range	50 - 320 °C
Heat control	scale
Temperature setting range	0 - 320 °C
Connection for ext. temperature sensor	ETS-D5
Characteristics in the medium with temperature sensor	1l M50 Oil at H1500
Heating rate medium	6 K/min
Adjustable safety circuit	100 - 360 °C
Set-up plate material	technical enamel
Set-up plate dimensions	Ø 135 mm
Dimensions (W x H x D)	160 x 100 x 250 mm
Weight	2.8 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	620 W
