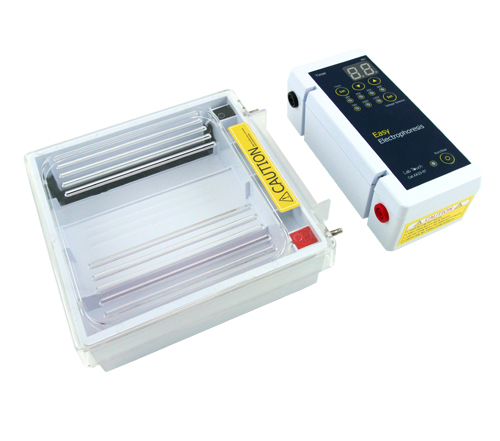

Horizontal electrophoresis unit

All-in-one Horizontal Electrophoresis System

Horizontal electrophoresis system in "all-in-one" configuration complete with power supply unit.

  • Compact and easy-to-use model
  • Separable power supply and chamber; the tank is easy to clean
  • Transparent lid for optimal gel visualisation
  • Equipped with memory function: the most recent timer and output voltage options are memorised


Technical specifications

  • Input voltage: AC 100V ~ 240V, 50/60Hz
  • Output voltage: 18V, 25V, 35V, 50V, 70V, 100V, 135V
  • Timer. Time interval: 1~99min
  • Dimensions: 163 (W) × 73 (D) × 62 (H) mm
  • Weight: 361g

Tank dimensions

  • Outer dimensions: 158 (W) × 161 (D) × 50 (H) mm
  • Inner size: 150 (W) × 135 (D) × 48 (H) mm
  • Weight: 220 g
  • Buffer capacity: max. 500ml

Gel Maker Set

  • Gel tank: 122(W) × 130(D) × 15(H) mm
  • Gel tray (L): 124(W) × 121(D) × 15(H) mm
  • Gel tray (S): 124 (W) × 59 (D) × 15 (H) mm
  • Comb: 13 wells (6 (W) × 1 (D) mm)/ 26 wells (2 (W) × 1 (D) mm)
  • Gel Divider: 135(W) × 16(D) × 3(H) mm

Safety cover

  • Dimensions: 171(W) × 167(D) × 23(H) mm
  • Weight: 139 g

Equipment

  • Gel Tank
  • Large Gel Tray
  • 2 Small Gel Trays
  • 4 Combs
  • 2 Gel Dividers
  • Power Cord
  • Power Supply
  • Safety Cover
  • Water Tank

Code

  • KA/033/097
