ISE Benchtop meter

Instrument for measuring pX, ion concentration, MV and temperature

ISE Benchtop meter, complete configuration of stand and accessories.

ISE electrode of your choice, to be purchased separately.

Features

Complete instrument, ideal for pX measurements, ionic concentration, MV, temperature
M-Log version
Simple and immediate use: New operating mode: Edit → save → load
GLP, datastorage
Equipped with RS 232 and USB interfaces
Supplied with support stand, protection cover, buffer, power supply and instruction manual
Large Color touch screen LCD display with 800 × 480 resolution

Technical specifications

Code	NS/8500/1339
Measuring method	pX ion concentration mV temperature
Measuring range
pX	-2.000÷20.000
mV	-2000.00÷2000.00
Ion concentration	1.00E-9÷9.99E+9 mg/L、g/L、mol/L、mmol/L
Temperature	MTC: -5.0 ～ 135.0℃ ATC: -5.0 ～ 130.0℃
Resolution
pX	0.1/0.01 /0.001
mV	0.01/0.1/1
Ion concentration	0.1/0.01 /0.001
Temperature	0.1℃
Accuracy
pX	pXI: ±0.002pX; pXII: ±0.005pX
mV	±0.1
Ion concentration	CI: ±0.3%; CII: ±0.5%
Temperature	±0.1℃
Others
Calibration	5 points
Measuring Methods	Direct test, Sample addition, Standard addition, Gran method
Database	2000 groups data
Interface	RS232, USB InsMark I Printer（Optional）
Display	5 inches touch screen, color LCD,Resolution 800x480
Electrode Input	BNC
Temperature Input	NTC 30 kΩ
Optional Ion electrodes	F^-,CI^-,Na⁺,S^2-,NH₄⁺,Ca²⁺,K⁺,NO₃^-
Weight	700 g
Dimensions	380×300×100 mm

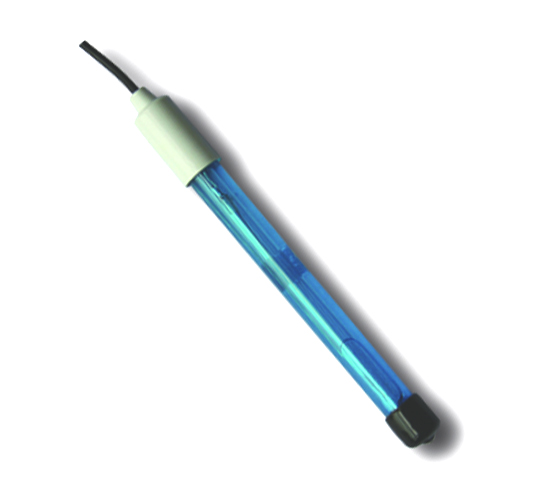

Optional ISE electrodes of your choice

ISE Electrodes of the NS line, complete the configuration of the measuring instrument.

Note: For significant import/customs costs, the price of ISE electrodes is for the purchase of one or more units supplied with the ISE measuring instrument; You cannot buy them individually without the tool.

Codie	Description
NS/8530/0072	Combined ISE electrode ion fluoride (F^-) range 1÷10^-6 mol/l
NS/8530/0073	Combined ISE electrode ion chloride (Cl^-) range 1÷5×10^-7 mol/l
NS/8530/0074	Combined ISE electrode ion sodium (Na⁺) range 1÷10^-6 mol/l
NS/8530/0075	Combined ISE electrode ion sulphide (S^2-) range 10^-1÷5×10^-7 mol/l
NS/8530/0076	Combined ISE electrode ion ammonium (NH4⁺) range 1÷10^-5 mol/l
NS/8530/0077	Combined ISE electrode ion calcium (Ca⁺²) range 10^-1÷10^-5 mol/l
NS/8530/0078	Combined ISE electrode ion potassium (K⁺) range 1÷10^-6 mol/l
NS/8530/0084	Combined ISE electrode ion nitrate (NO3^-) range 1÷10^-5 mol/l
