Incubator "Basic" 55 l
Natural convection incubator, net volume 55 l, with "Basic" digital PID controller
Natural convection incubator, net volume 55 l, with "Basic" digital PID controller with limited number of adjustment keys for easy parameter setting.
The organic materials used in the typical laboratory applications require a constant and soft heating. The temperature distribution in the incubators is obtained without forced air circulation but using only the natural convection, which does not stress the sample and allows its uniform growth.
Features
- Working range: 5 °C above ambient temperature up to 70 °C
- Net volume 55 Lt
- Stainless steel door with wide glass window
- Digital PID controller system with limited number of adjustment keys for easy parameter setting
- Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters
- Visual and audible Alarm be disable by the operator
- Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function
- Possibility to set a delay in the start of the heating cycle
- Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature')
- Safety Class 2.0 with double digital limiters of temperature and additional fluid expansion limiter
- Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature
- Stainless steel chamber with supports for the shelves completely removable for easy cleaning

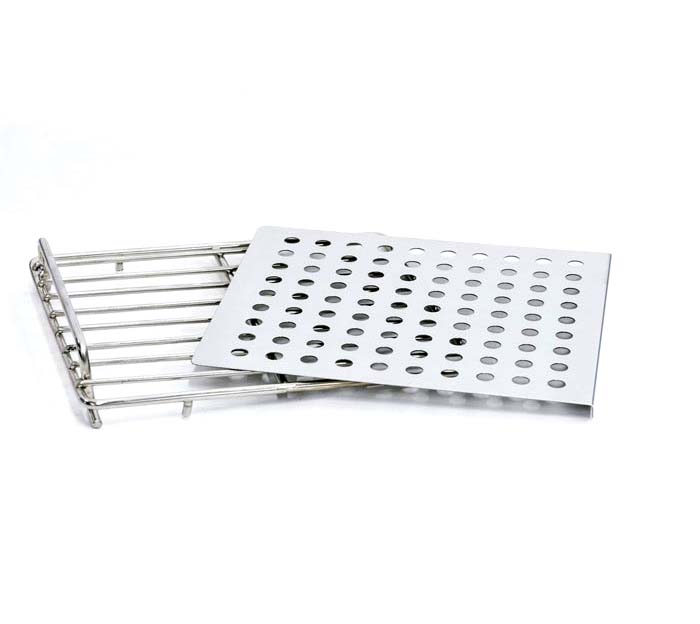

- Supplied with two wire shelves
- The power consumed by this model is the lowest of the whole category and saves 50% energy with the same heating times
- Supplied with calibration report at 37 °C, executed with instrument Accredia certificated
Controller "Basic"
"Basic" the new version of the line regulators, allow an easy setting of all operating parameters and an optimal temperature control.
The large backlit display clearly shows in every moment the temperature set and that one inside as well as other parameters.
The introduction of user friendly icons makes interpretation of the functions and commands extremely intuitive.
Moreover the limited number of adjustment keys ensures operability very simple and intuitive.
- Wide backlit LCD display
- Icons easy to read
- Timer and continuous function
- Visual and sound alarm
- Fan speed control (High, Medium, Low)
- Delay of starting
- Safety temperature limiter for samples protection
Specifications
| Code |
RG/41101022 |
| Usable volume |
55 l |
| Max temperature / Resolution |
+70 / 0,1 °C |
| Temperature homogeneity at 37 °C |
± 0,5 °C |
| Temperature variation at 37 °C |
± 0,3 °C |
| Heating up time at 37 °C |
25 min |
| Timer |
99:59 hh:min e ∞ |
| Safety class |
2 |
| Power supply / Nominal wattage |
230 V / 250 W |
| Internal dimensions (W x H x D) |
400x 360 x 385 mm |
| Number of shelves (standard/max) |
2/5 |
| Useful min. distance between shelves |
50 mm |
| Max load for shelf |
10 kg |
| External dimensions (W x H x D) |
635 x 500 x 545 mm |
| Weight |
42 kg |
