Incubator 118 l / Tmax 80°C

Natural convention, heating technology with Swiss precision

Natural convention incubator, volume 118 l.

Discontinued model on special offer until stock availability!

Features

Natural convection incubator
Maximum temperature +80°C
Microprocessor PID controller
Fuzzy-Logic LCD display
Keypad
Timer up to 0-999h59m
Real-Time Clock
Programming: 50 Programs with 15 steps (Temperature, Gradient, Time, Fan Speed)
RS 232 Interface
2 shelves

Biosphere by design

Our precise natural covection Incubator serie, is especially designed for the long-term and continuously stable incubation in basic research / research institutes, food and beverage industry as well as microbiology laboratories
The exclusive EasyMenu controller provides an uniform constant level of temperature conditions at any and all locations within the chamber
Ideal for gentle incubation of organism as well as conditioning of heat-sensitive media or microbiological heating

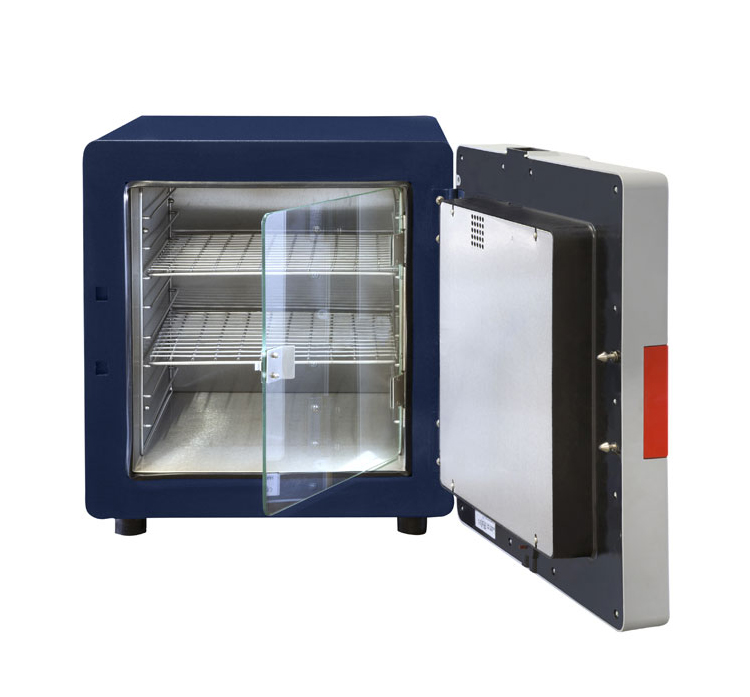

The inner glass door made of safety glass permits optical process supervision without heat energy loss
For support of decontamination, the units can be heaten up to +80°C

Swiss quality and design

This incubator is setting standards in quality and design
The unit is manufactured in typical Swiss quality according to ISO 9001 norms and convince of accuracy, dependability and design

High payload

Each Incubator comes with two wire shelves as standard equipment
They are designed for high payload and their grid design allow unimpeded air convection
The unique door system makes the incubator to one of the most compact units in their volume class

Programmable independence

50 programs at 15 program steps each (set temperature, gradient, hold time, fan speed) may be stored in incubator with a program duration up to 999 hours 59 minutes
The built-in realtime clock simplifies programming. In case of power failure, the Incucenter will restart automatically

Full control with the EasyMenu

This series developed the EasyMenu which leads you through operation and programming of the Incucenters in plain steps
The illuminated LCD display of the PID controller features fuzzy logic capabilities and keeps you informed with all required data during the full process cycle

Safety through cleanliness

This incubator is a well-rounded affair
All transitional points between walls, ceiling and chamber bottom are deep-drawn, thus promoting easy cleaning
Unwanted germs and dirt do not find any place to hide.

Precise temperature characteristics

The PT100 temperature probe guarantees accurate temperature characteristics exactly as required by the programmed defaults
The units are equipped with a pass-through (dia. 6 mm) for the installation of additional temperature probes or electric cables

Technical specifications

Code	SV/INC/0118
Outside dimensions (WxHxD)	570x650x720 mm
Clearance distance from back/side wall	100/100 mm
Inside dimensions (wxhxd)	450x500x530 mm
Internal volume	118 l
Shelves standard/max	2/8
Shelf dimension (WxD)	437x495 mm
Distance between shelves	40 mm
Max. load per shelf	10 kg
Max. load per incubator	40 kg
Weight (empty)	55 kg
Temperature Range approx. >5°C oRt to	80°C
Temperature variation 1) at 37/50°C	± 0.5/0.8 °C
Temperature fluctuation 2) at 37/50°C	± 0.1/0.2 °C
Heating up time 3) at 37/50°C	41/70 min
Power supply (±10%) 50/60 Hz	230/115 volt
Nominal Wattage	550 W
Energy consumption at 37°C	130 W
Timer	hours/min. 999/59
RS 232 interface	Yes
Adjustable print interval	Yes
Programming	program/step 50/15
Ramp function	Yes
Safety class	class 3.1

1) measure with 3 temperature probes on horizontal level / divides in 1/3 of the chamber size
2) maximum temperature deviation in time for one temperature probe
3) to 98% of set temperature
