LAB/20 Binocular head stereomicroscope
With continuous zoom magnification (0.7x ….4.5x) and double LED incident and transmitted illuminator
LAB/20
Binocular stereomicroscope with continuous zoom magnification (0.7x ….4.5x) and double LED incident and transmitted illuminator, for bright and uniform illumination.
- Observation mode: Brightfield

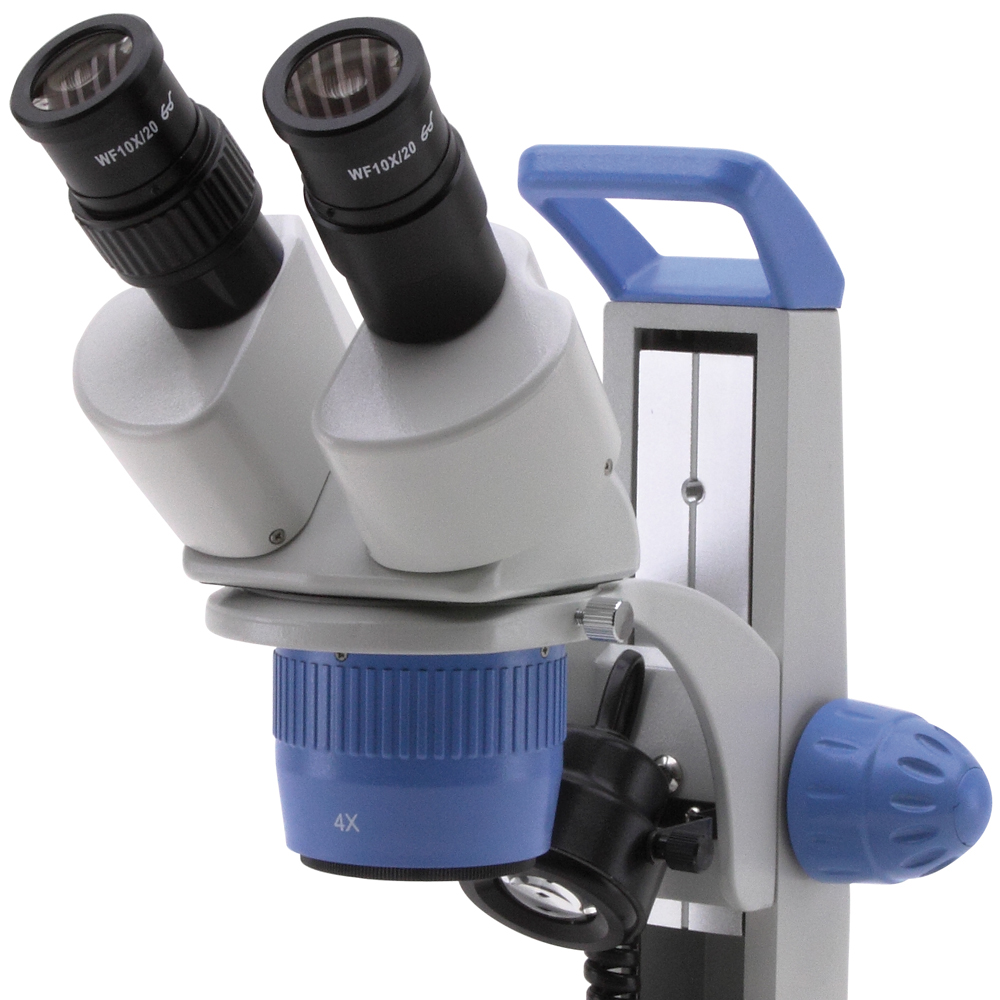

- Head: Binocular head, 45° inclined and 360° rotating
- Interpupillary distance: Adjustable between 51 and 75 mm
- Dioptric adjustment: Dioptric compensation adjustable on both eyepiece tubes

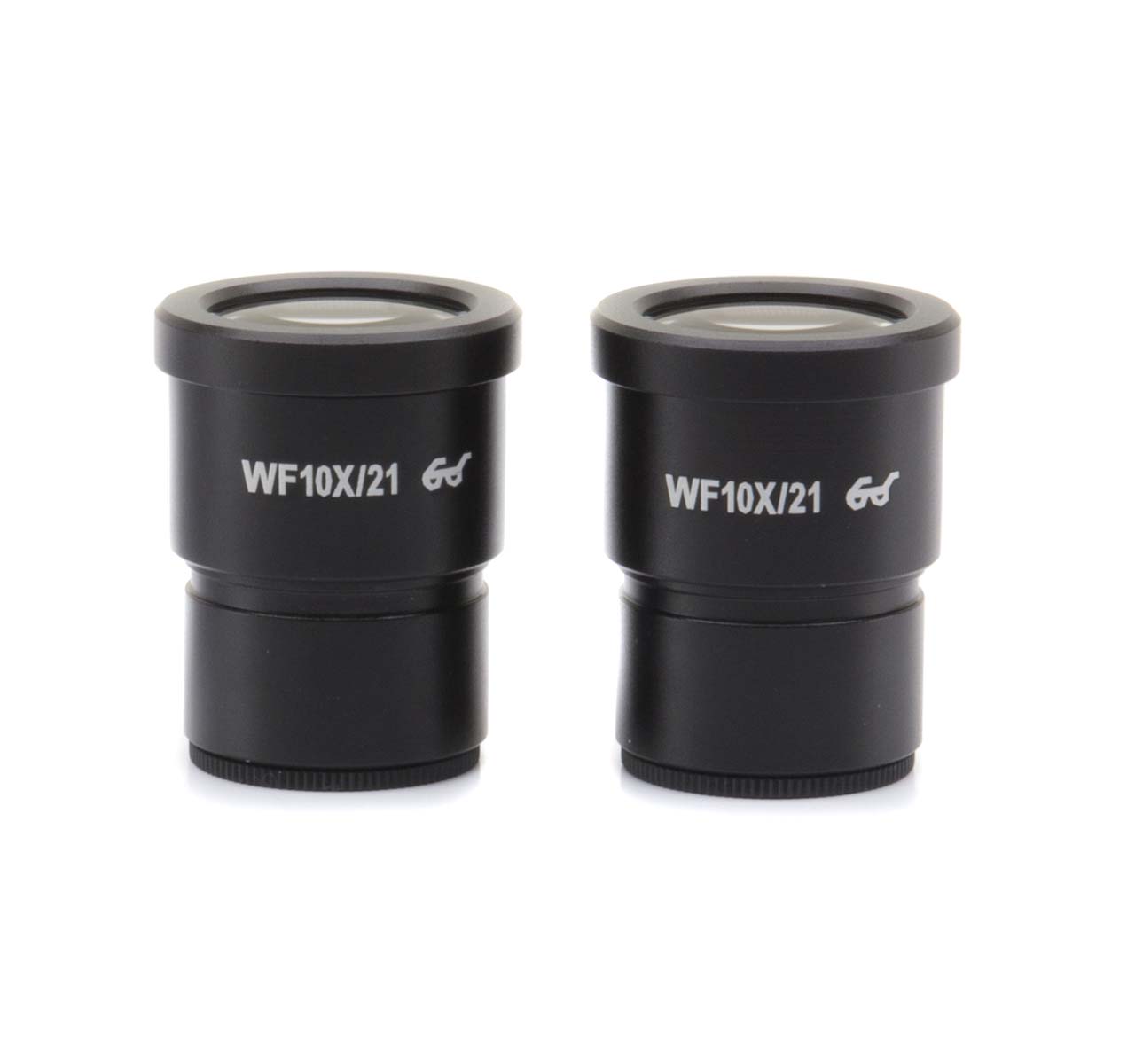

- Eyepieces: WF 10x/21 mm, high eye-point, secured by screw with rubber cups
- Objective: Parfocal achromatic zoom 0.7x…4.5x (zoom factor 6.43:1)
- Stand: High-grade fixed stand with focus and handle
- Focusing: Rack and pinion controlled by a pair of knobs placed on both sides of the stand

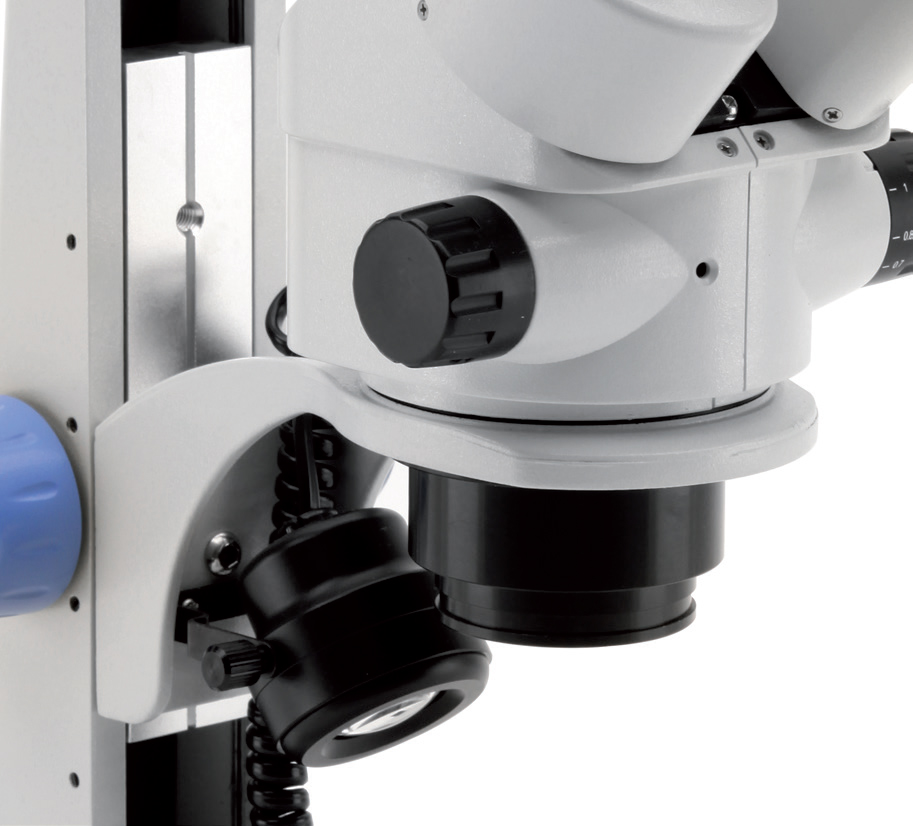

- Illumination:
- Incident: 3W LED
- Transmitted: 3W LED
- Brightness control
- The angle of the incident illuminator is adjustable
- Color temperature: 6,300 K
- Multi-plug 100-240Vac/5Vdc external power supply
LAB Series - General characteristics
The LAB Series is ideal in secondary school and higher education, providing an exclusive and attractive design combined with premium quality components and optics.
Obtain clear stereoscopic view and comfortable, ergonomic operation.
Greenough optical system
- The V-shape optical path of Greenough allows us to design a very compact and a slim unit, highly versatile and appreciated for the 3D viewing
- Samples with significant depth can be quickly inspected
A range of quality microscopes designed for students and teachers
- Extremely reliable microscopes for education
- Particularly recommended for schools
- Ideal for biology, zoology and material science
Complete stereomicroscopes
- Dual magnification or continuous zoom available
- 21mm field number
- High-efficiency LED for incident and transmitted light
Attention to detail handy, yet extremely stable
- Compact, practical and intuitive to use
- Optics ensuring good quality images
- Sturdy rack-and-pinion focusing stand
Easy to take care of
- Durable for extended lifetime

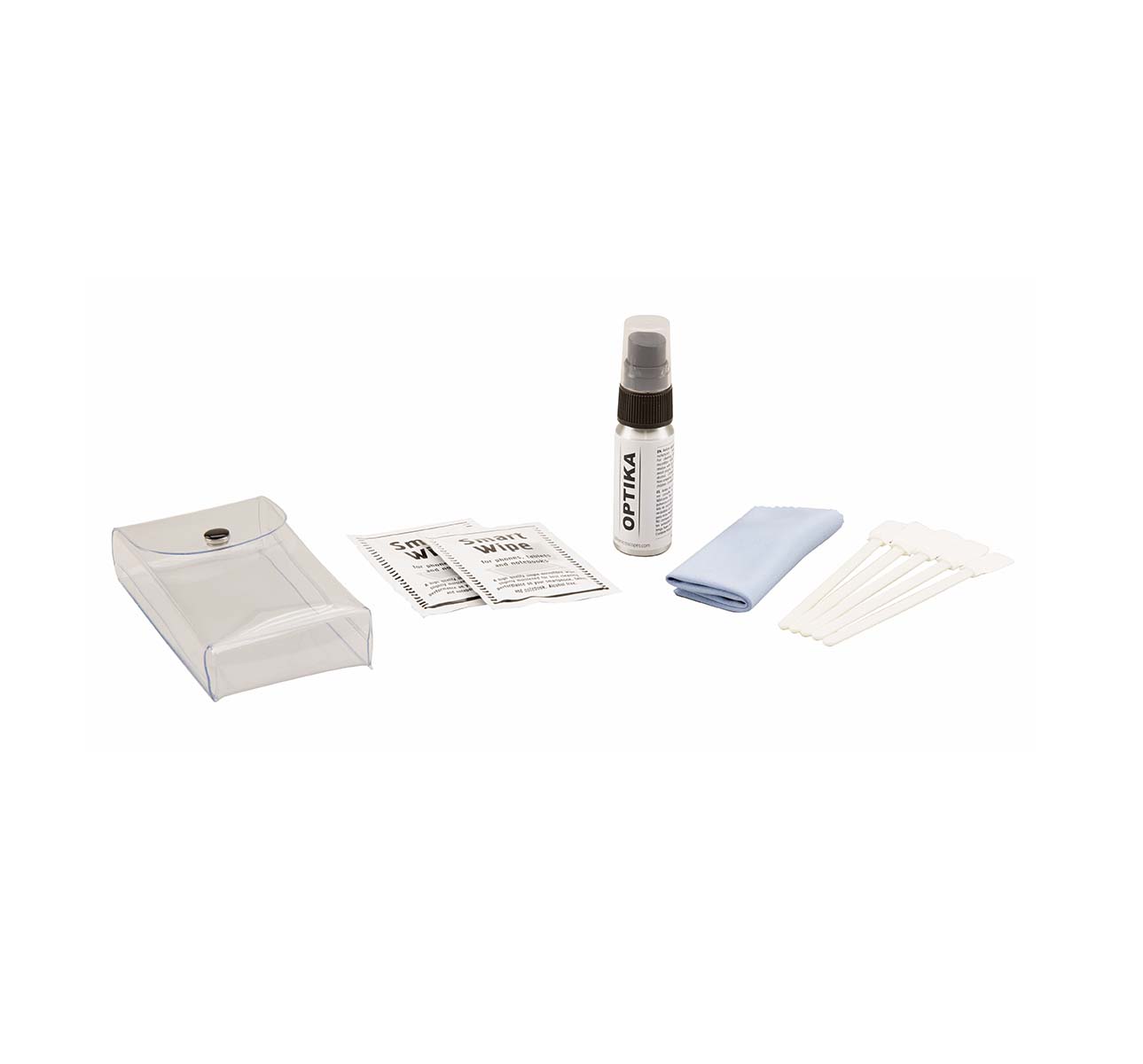

- Only simple lens cleaning is required time to time

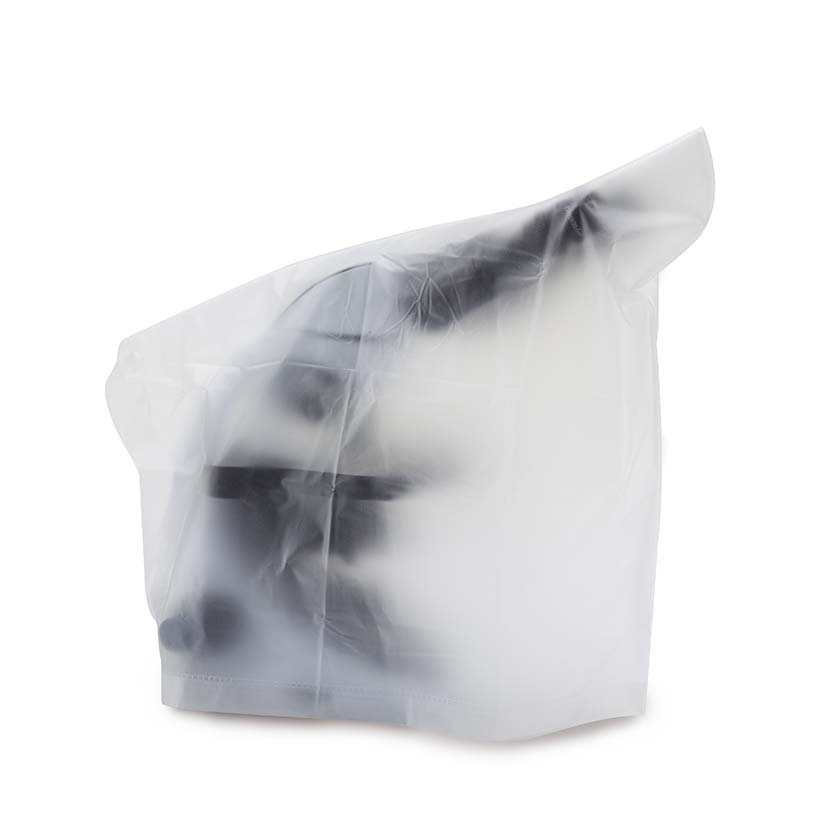

- Dust cover protects from environmental contaminants
6.4:1 zoom ratio
- LAB/20 and LAB/30 have 0.7x-4.5x zoom range (6.4:1 zoom ratio), being purposely designed for routine inspections
- This zoom ratio enables most samples to be observed at the appropriate magnifications

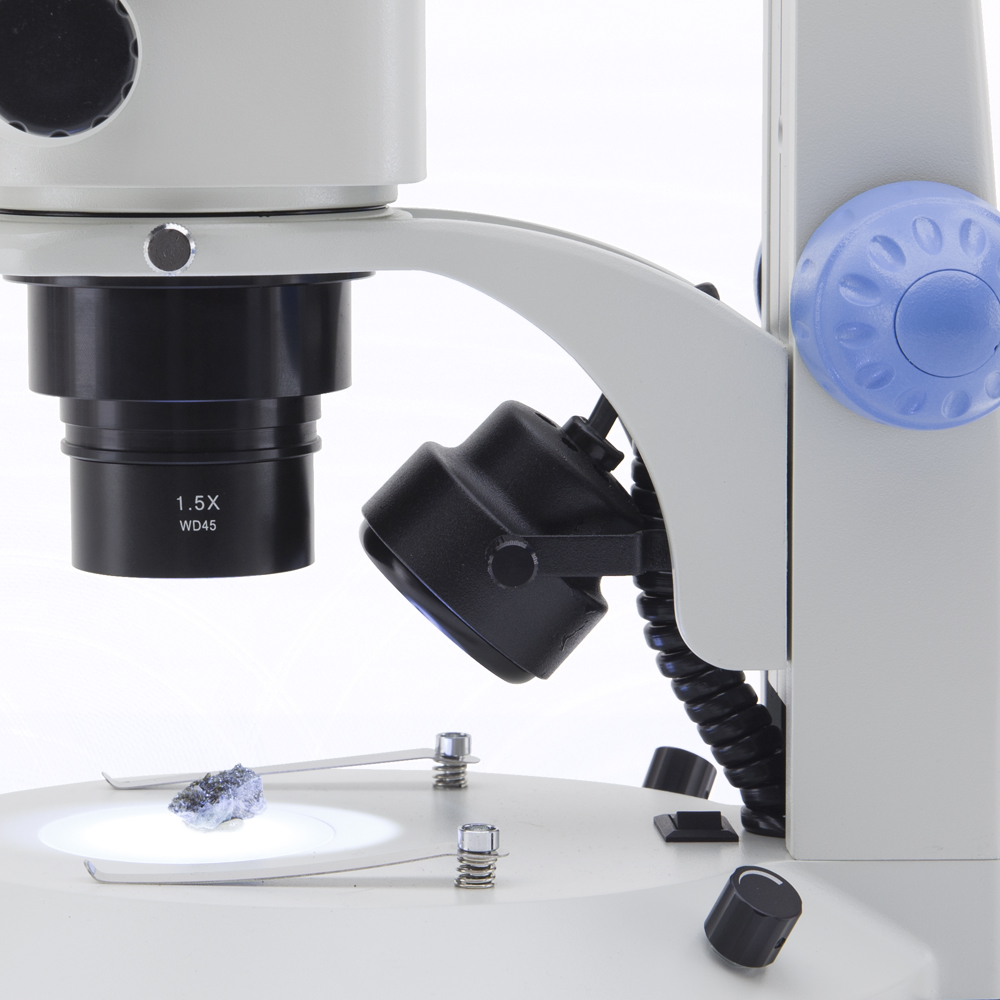

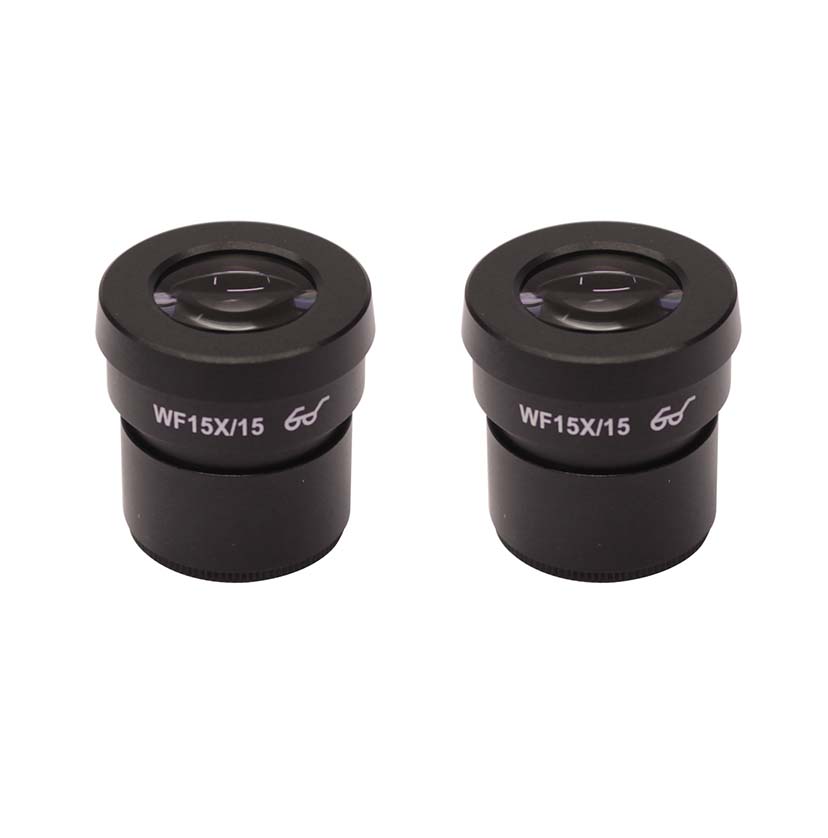

- When combined with proper accessories (1.5x additional lens and 20x eyepieces), LAB/20 can reach 135x maximum magnification, an excellent result in this class

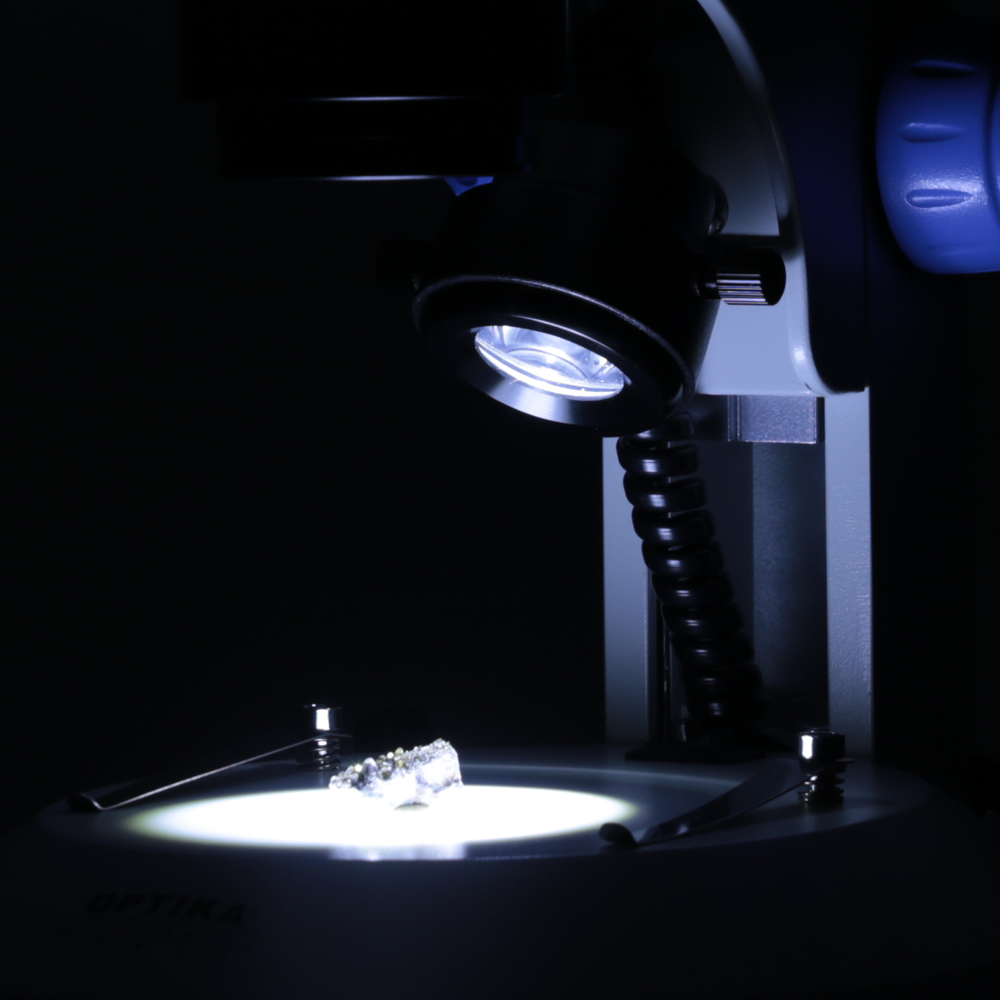

LED optimized illumination
- Money & energy saving thanks to LED long lifetime (50.000 hours, 20 years in case of 8 hours/day) which is more than 20 times compared to a standard halogen bulb
- LED illumination is available as transmitted and incident illuminators
