LEGATO 101 SYRINGE PUMP

Dual syringe infusion pump

LEGATO 101

Infuse only dual syringe pump. Accommodates syringes 0.5 µl to 10 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Nanoliter syringe pump is ideal for organic synthesis and other applications with small volumes under 10ml
Ideal for applications where dual syringes are required with small volumes under 10ml
The Legato 101 has a wide flow rate range from 1.26 pl/min to 25.99 ml/min depending on syringe size
The large touch screen color display allows the user to see all of the pumps operating parameters to ensure proper operation during the experiments
Syringe size and flow rate are easily displayed as well as the volume delivered and the elapsed time

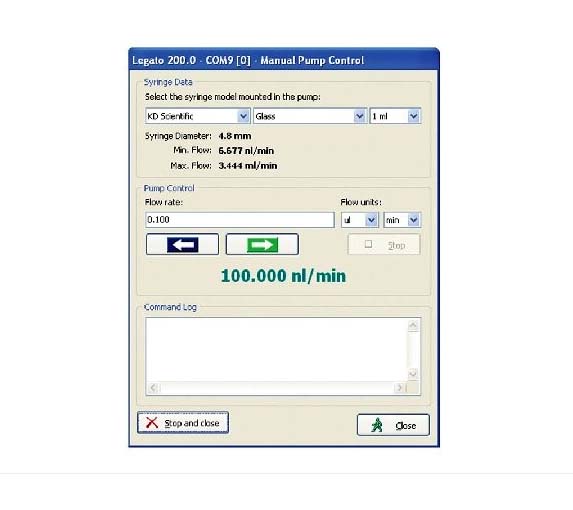

Set up is easy using the icon driven software

Features

Holds one or two syringes from 0.5 µl to 10 ml
High resolution color touch screen
Unparalled ease of use
Touch pad "lock" feature
LED light on front panel
Full metal chassis
Built in syringe table
Up to 30 lbs linear force
Advanced microstepping techniques
Built in RS485 interface
USB port
I/O & TTL interface
Continuous mode of operation
Spill dam

Specifications

Accuracy ±0.5%
Reproducibility ±0.05%
Syringes (Min/Max) 0.5 µl to 10 ml
Minimum Flow Rate (0.5 µl syringe): 1.28 pl/min
Maximum Flow Rate (10ml syringe): 25.99 ml/min
Display 4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory - Stores all Settings
Connectors RS485 - IEEE-1394 6 posUSB - Type BI/O & TTL - 15 pin D-Sub Connector
Linear Force (Max) 13.6 kg (30 lbs) @ 100% Force Selection
Drive Motor 0.9 Stepper Motor
Motor Drive Control Microprocessor with 1/16 microstepping
Number of Microsteps per one rev.of Lead Screw 15,360
Step Revolution 0.069 µm/step
Step Rate - Minimum 27.5 sec/µstep
Step Rate - Maximum 26 µsec/µstep
Pusher Travel Rate - Minimum 0.15 µm/min
Pusher Travel Rate - Maximum 159 mm/min
Power 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)Weight 2.66 kg (5.9 lb)
Operating Temperature 4 degree C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature -10 degree C to 70 degree C (14 degree F to 158 degree F)
Humidity 20% to 80% RH non condensing
Mode of Operation Continuous
Classification Class 1
Pollution Degree 1
Installation Category II
Regulatory Certification CE, UL, CSA, CB Scheme, EU RoHS
