Liquid suction vacuum system 42 l/min

Built in high quality oil-free vacuum pump

This liquid suction filtration vacuum pump series is mainly used for separation of culture fluid and culture tissue after biochemical culture, extraction of cell culture waste liquid, and suction of various waste liquids in the laboratory.

Different flow specifications are available to meet more experimental needs and it is the best experimental assistant indispensable for the laboratory aseptic workstation.

Features

Pumping filter brackets are equipped on both sides of the instrument, easy to store and select the suction filter accessories

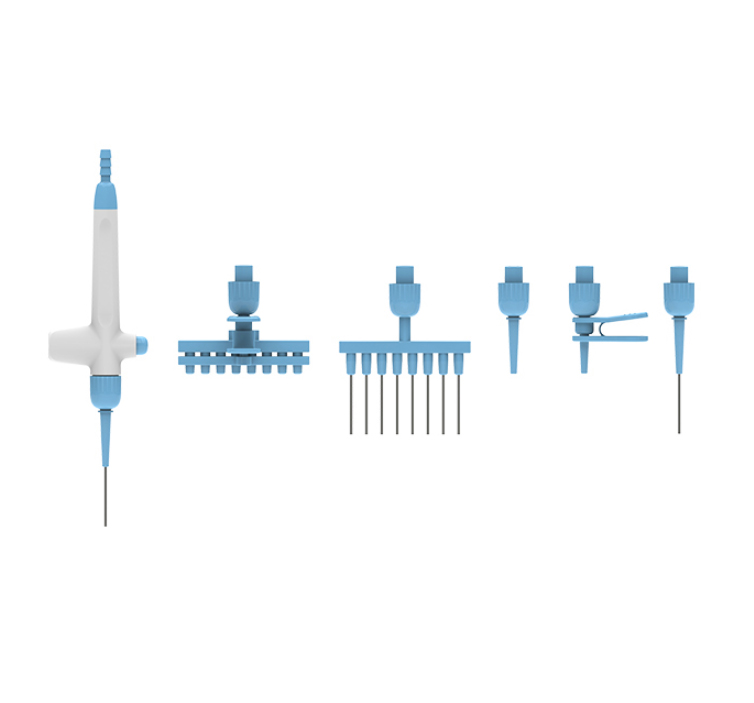

Standard equipped with multi-function suction filter handle and 5 kinds of suction head accessories to meet more requirements of suction experiments
Sealed waste liquid bottle cap design, quick-insertion sealing point, convenient to get out of the fuselage bottle and clean up waste liquid
Normally open control mode and foot switch control mode, to meet more experimental requirements
Waste liwuid bottle, suction filter fittings and dish filter can all be used for autoclave sterilization
There is a liquid level protection switch in the waste liquid bottle to prevent the waste liquid from overflowing and being sucked into the pump chamber to ensure no troubles in suction filtration
There is a PTFE dish shape filter between the bottle and the pump to protect the environment from hamful gas pollution
The self-locking quick connector can be quickly and easily separated from the pipeline wich is convenient for safety cleaning the waste bottle
Built-in high quality oil free vacuum pump, no maintenance, low noise and long life

Technical specifications

Code	MB/ZK0/042
Max flow rate	42 l/min
Vacuum degree	-0,08 Mpa
Vacuum display mode	Vacuum gauge
Negative pressure range	0÷ -0,08 Mpa
Bottle capacity	2.500 ml
Foot switch	Yes
Voltage	AC 220 V / 50/60 Hz
Power	180 W
Dimensions	248×475×350 mm
Weight	9,2 kg
