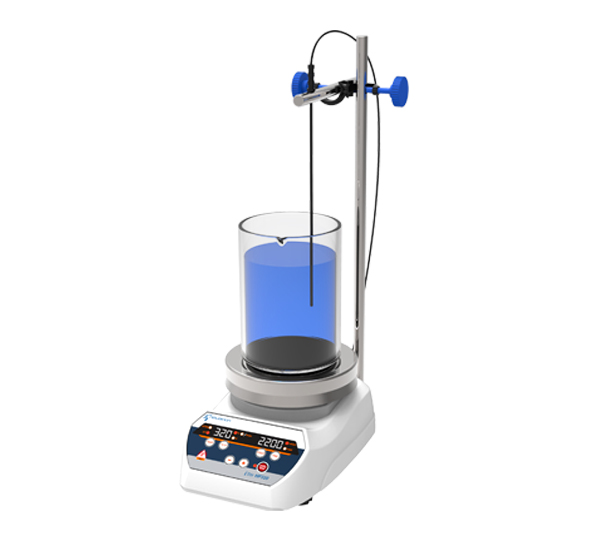

Magnetic stirrer with heating plate

Digital model with a-corrosive ceramic plate

Magnetic stirrer with heating plate made of special anti-corrosion ceramic material for accurate and uniform temperature distribution.

Complete configuration with temperature sensor and support stand.

  • Digital model with temperature and RPM control with control panel
  • Accurate temperature control with T measurement directly in the liquid sample with closed loop
  • Excellent mixing capability
  • Safety protection from overheating conditions
  • Virtually infinite life, maintenance-free and extremely quiet brushless induction motor

Technical specifications

ControlDigital
MotorInduction "brushless"
Plate dimensions190×190 mm
Speed range200÷2000 rpm
Max Temperature350°C +/- 10%
Max Stirring Volume5 l (H2O)
Power600 W
Plate materialCeramic

To Order

CodeDescription
JL/020/110Digital magnetic stirrer with anti-corrosion ceramic material heating plate complete with temperature sensor and stand
