Manual blistering machine

2 blisters for stroke - 90×70 mm

This sealing machine was designed to meet the packaging needs of the pharmaceutical industry and pharmacies.

The blisering machine effortlessly pack product such as capsules and tablets of various dimensions.

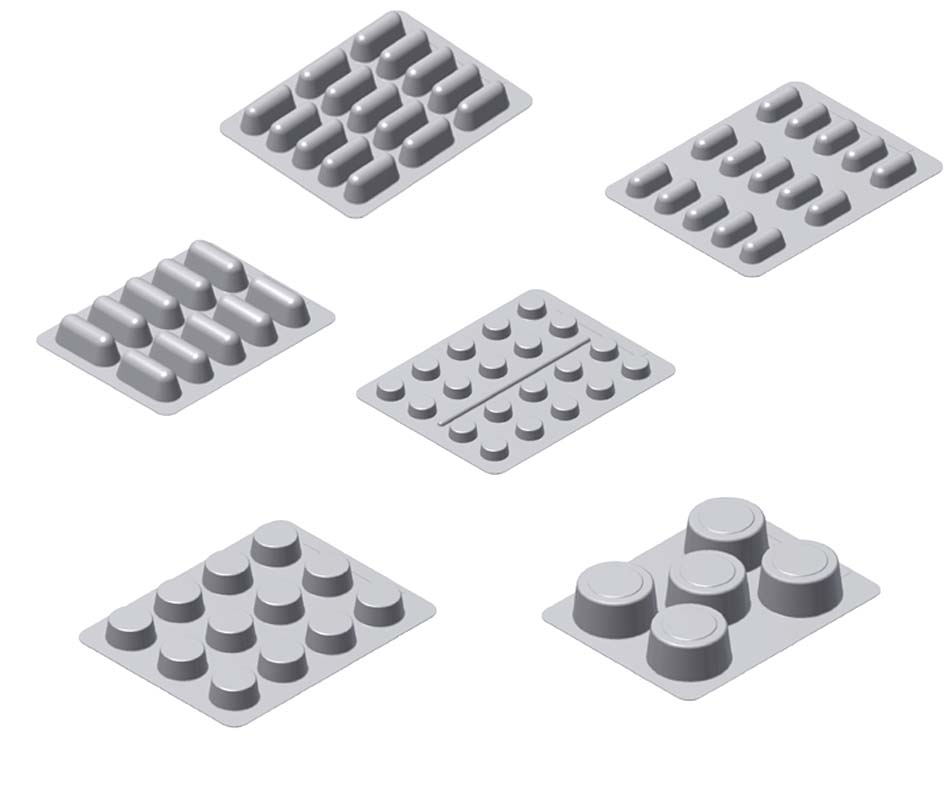

In a single operation it seals and codes two blisters per stroke with dimensions of 90×70 mm (wich were previously preformed and sealed on one side with one of the sven formats offered.

The preformed blister, sealed on one side and cut with rounded corners in a single operation, guarantees the perfect positioning of the aluminium lid foil on the PVC blister.

It also ensiures a perfect sealing quality.

Features

Code: OR/ST/HT/MX
Manual blistering machine
2 blisters per stroke
7 standard formats available
Pressure with mechanical multiplier system (about 900 kg)
Customized moulds upon request

Production

Daily production (7-8 hours) of blisters made of PVC-ALU approcimate 6.000 units
Maximum blister format 90×70 mm (2 blisters per stroke)

Technical specifications

Dimensions: 340×300×530 mm
Weight: 14 kg
Main electrical voltage: 230 V/ 50 Hz
Power: 0,6 kW
Machine working temperature range: 30°C ÷ 200°C
Machine ambient temperature working range: 20÷45°C

Supply equipment

Basic machine
Set of an upper + lower mould of your choice for the desired capsule size (7 types available)
