Microplate Incubator

Well-designed micro processing techniques incubator which well combined with PID controlling

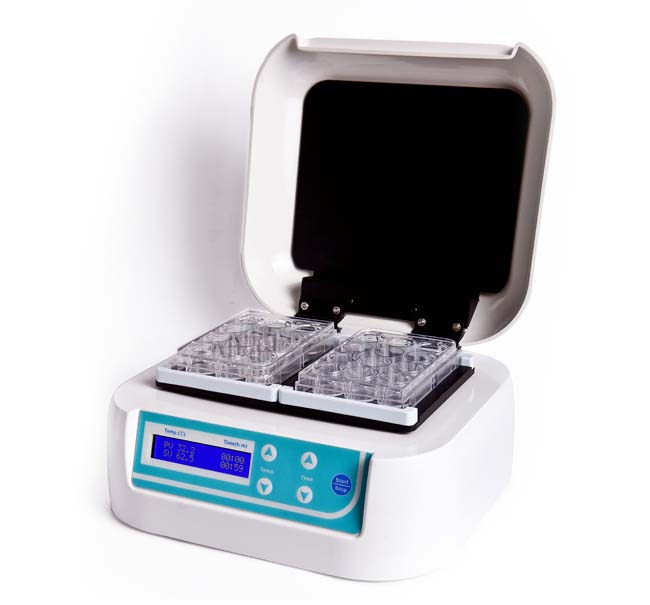

Micro-Plate Incubator

Micro-plate incubator is a well-designed micro processing techniques incubator which well combined with PID controlling.

It is mainly used for solution incubation of ELISA plate (96-/384-well), cell culture plate (24-/48-/96-well) at proper temperature.

Features

LCD display
Setting temperature and actual temperature simultaneously displayed
Diminishing time displayed
Friendly human-machine operation interface
Streamline shape, pretty and elegant
Convenient for cleaning
Uniformly upper & down heating for samples in micro plates
The experiment effect is exact correspondence of the setting and actual temperature
Microprocessor controlling time and temperature
Good linearity of temperature control
Four standard plates configured
Alarm signals when operation completes

Technical specifications

Code	MB/004/001
Temperature control range	R.T. +5°C ÷ 70°C
Temperature stability	±0.2℃
Platform temperature uniformity	±0.5℃
Temperature display accuracy	0.1℃
Heating speed	≤25 min ( 20°C to 70℃)
Sample capacity	4 microplates height<40 mm
Timer	1min ~99h59min
Voltage	AC 220V /AC 110 V 50/60Hz
Power	250 W
Dimensions (WxDxH)	345 x 310x 178 mm
Weight	4,9 kgs
