Mini Infusion Pump

Over 1000 history records, convenient for user to trace infusion records

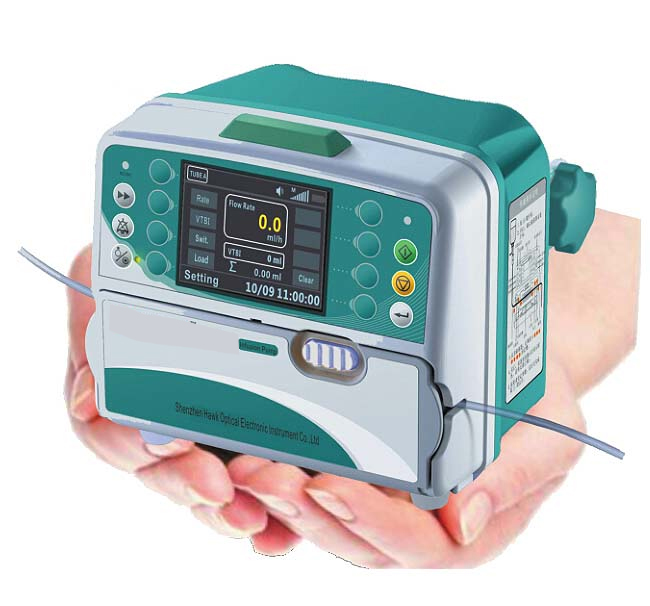

Mini Infusion Pump - HW Series

Compact & lightweight design. Two infusion modes (Rate mode, Drip mode).

90°rotatable pole clamp, removable pump body, easy to clean, with soft key, user-friendly.

Open system, compatible for various brands of IV set.

KVO, Air in line detection & various visual and audible alarms.

Features

Technical specifications

Code	HW/001/001
Flow rate range	0.1~1200 ml/h Micro mode: 0.1-99.9 ml/hr in 0.1 ml increments 1～400drops/min
Volume to be infused (VTBI)	0 ~ 9999 ml
Volume Infused (∑)	0 ~36000 ml
Infusion accuracy	±5%
Applicable infusion set	Support a wide variety brands of infusion set including major manufacturers & selected local brands
KVO rate	1 ~ 5 ml/h
Bolus rate	300 ~ 1200 ml/h
Purge	600 ml/h
Air bubble detection	Ultrasound sensor detection with four levels of air in line alarm adjustable
Occlusion pressure	3 adjustable occlusion pressure settings: low, middle and high
Alarms	Visual and audible alarms: Door open, Air-In-Line, Occlusion, Infusion completion, Low Battery, Battery depleted, malfunction etc
Power supply	AC:100~240V,50/60Hz DC:12V ±1V
Battery	Rechargeable lithium polymer battery, 7.4V,2100mAh Can operate for more than 3 hours after fully charged at 25ml/h.
Battery recharge time	10h with power on, 3h with power off
Power consumption	25 VA
Mode of operation	continuous
Dimensions	145×100×120 mm
Operating conditions	Temperature:5℃~40℃, relative humidity: 10~95%, Atmosphere pressure:86～106kPa
Transport conditions	Temperature-20℃~+60℃, relative humidity: 10~95%, Atmosphere pressure:50～106kPa
Storage conditions	Temperature-20℃~+45℃, relative humidity: 10~95%, Atmosphere pressure:50～106kPa
