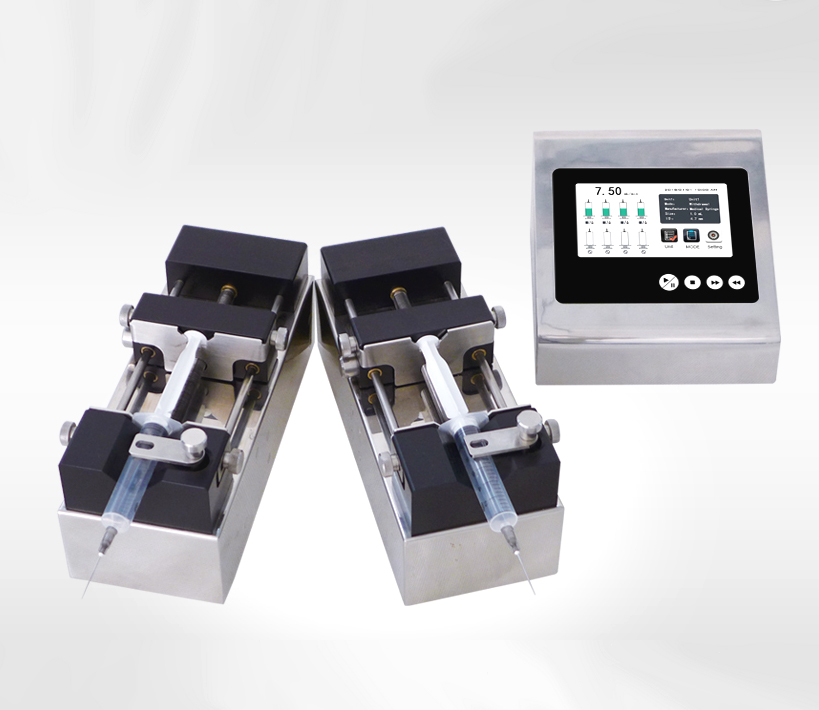

Multiple control syringe pumps system

Simultaneous control of 8 syringe pumps independently

Innovative centralised system consisting of a digital controller unit with touch screen display that can be remotely connected to 8 syringe pumps operating with completely independent parameter settings.

This solution allows simultaneous testing with syringe pumps operating with completely independent volumes, speeds, flow rates and experimental conditions controlled by a single central unit.

Central controller with 4.3 inch touch screen display, compact design with minimal footprint
Allows the display of test parameters of all connected syringe pumps (up to 8 units simultaneously)
Simple and intuitive interface, easy to use, modern and functional design
Each unit operates independently: it is possible to select parameters for a single model or for all the units you want to use
Configuration syringe pumps operate in both infusion and withdrawal as desired and can accommodate different syringe capacities in the same trial or set up trial parameters at different times
Intelligent automatic calibration: ensures high accuracy performance even for microvolumes
On Line Micro" adjustment function to adjust the volume of each individual unit to minimise error margins
Real-time monitoring, with animated display of current and set data
The controller can receive alarm signals and interact with each individual unit simultaneously
Test distance selection, eliminates bubbles in the syringe and optimises volume accuracy

Technical specifications

Working mode	- Infusion - Withdrawal - Infusion/Withdrawal - Withdrawal/infusion
Connectable Syringe pump units #	1÷8
Syringe range volume	10 µl ÷ 60 ml
Syringe selection	Available of the mainly manifacturer type and syringe from also can define syringe ID in same time
Linear speed range	1 µl/min ÷ 132 mm/min (Flow rate=linear speed * syringe inner cut area)
Min. linear rate	1 µm
Linear force	>16 Kgf
Max. stroke	90 mm
Stroke resolution	0,078 µm per microstep
Accuracy	Stroke >30% of maximum stro Error < +/- 0.5%
Back distance	0,01÷5 mm
Working mode	Indipendent
Stored modes	Can save 10 group working modes
Display	4.3" LCD color
Display control	Touch screen/keypad
Power off memory	Display the previous data parameter after power on again
External control signal	Start/stop signal active switch signal (5V -24 V)
Communication interface	RS232/RS485 Modbus protocol (RTU mode)
Controller power supply	DC5V/24W
Syringe pump power supply	DC24V/24W
Working range temperature	0÷40°C
Working range humidity relative	<80% U.R.
IP rate	IP31
Dimensions/weight controller	160×150×95 mm / 1 kg
Dimensions/weight syringe pump	257×110×131 mm / 2.6 kg

To order

Code	Description
DK/SPM/CT	MULTIPLE SYRINGE PUMP SYSTEM CONFIGURATION CONTROLLER - Standard model with touch screen display (4.3 inch) - Control system to manage up to 8 syringe pumps simultaneously with independent setting of test parameters
DK/000/SY	SYRINGE PUMP - Syringe volume range 10 µl ÷ 60 ml / Adjustable flow rate range 0.001 ul ÷ 127 ml/min to be configured with controller cod. DK/SPM/CT (up to 8 units simultaneously)
