NEYA 16 16.000 rpm / 4×175 ml
Benchtop centrifuge maximum capacity 4×175 ml, maximum speed 16.000 rpm, 10 Programs
Centrifuge "High-Speed" mod. NEYA 16, 4x175 ml, 16.000 rpm, 10 programs.
Features
Automatic rotor detection, check of presence of accessories and compatibility with maximum speed.
- Safety speed limiter function
- 10 storable programs with protection function
- Setting of speed in RPM and RCF
- Short Spin function
- Controlled by microprocessor and backlit color LCD display with contemporary visualization of all parameters
- Digital adjustment of acceleration and deceleration levels
- Stainless steel internal bowl with optimal height for load and download of samples
- Imbalance detection system with automatic functioning stop to avoid accidents
- Automatic locking system of the lid, safety opening of the lid in case of absence of electric power
- Brushless motor maintenance free and no deposits
Technical data
| Model | NEYA 16 "High-Speed" |
| Code | RM/4010/0322 |
| Maximum capacity | 4×175 ml (swing out) - 6×100 ml (fixed angle) |
| Maximum speed | 4.500 rpm (swing out) - 16.000 rpm (fixed angle) |
| Setting RPM | YES |
| Setting RCF | YES |
| Display RCF | YES |
| Timer | 00:30¸99:50 (mm:ss) / continuos mode |
| Date and time | YES |
| Acceleration levels | 0÷9 (0= min - 9=max) |
| Deceleration levels | 0÷9 (0= min - 9=max) |
| Spin function | YES |
| Programs | 10 programs with protection function |
| Indication of rotor | YES |
| Noise | 55 dB |
| Directive / Standard | IEC 1010-1; IEC 1010-2-020 |
| External dimensions | 450×590×330 mm |
| Weight | 40 kg |
| Voltage | 220 +/- 10% V / 50 Hz |
| Power | 450 W |
Rotors
This table will show just some rotor configurations; to explore all the rotors, accessories, inserts, visit the page of RM Series rotors.
| Codice | Descrizione |

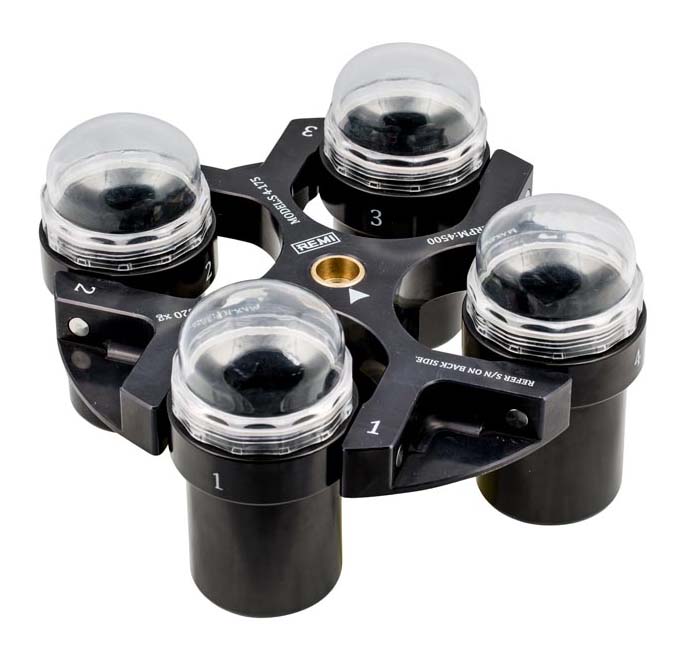

| RM/40100502 | Swing rotor SB 4-175 with 4 bucket and BIO SAFE caps; Kit composed by swing out rotor S 4-175, 4 buckets B 175 and 4 Biosafe lids L 175. Maximum capacity 4x175 ml; Maximum speed 4.500 rpm; Maximum acceleration 3.600 xg |

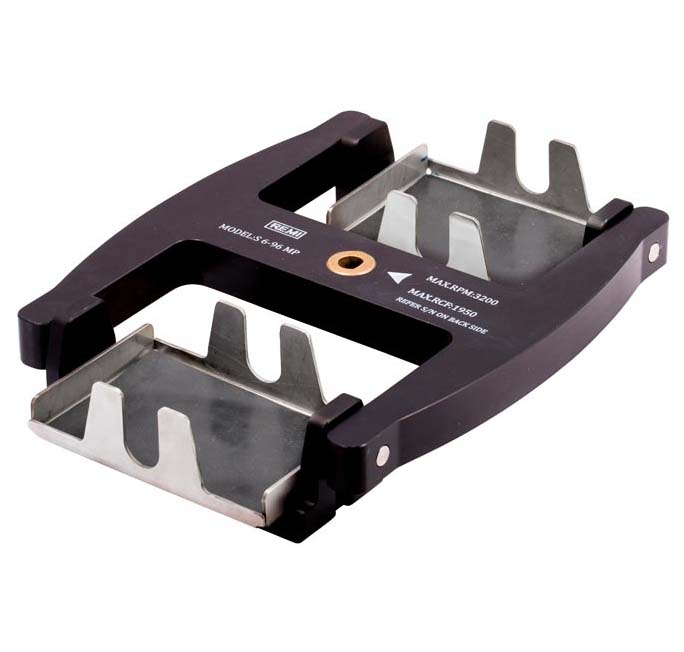

| RM/40100522 | Swing rotor S 6-96 MP for MICROPLATE with 2 supports. Swing out rotor for microplates. Max plates for tray 3. Max plates for rotor 6. Max speed: 3.200 rpm. Max acceleration: 1.950 xg |

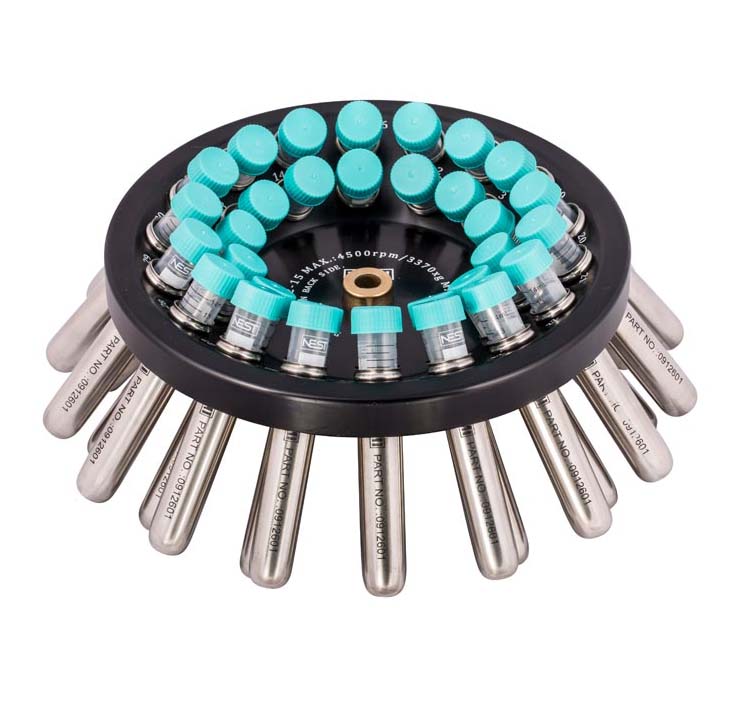

| RM/40100802 | Fixed angle rotor A 32-15 ( 32 tubes 15 ml ). Fixed angle rotor 37°. N° tubes for rotor 32. Max speed: 4.500 rpm. Max acceleration: 3.280 xg. Including n 32 metal bucket B 15F with conical Falcon tube type 15 ml. |

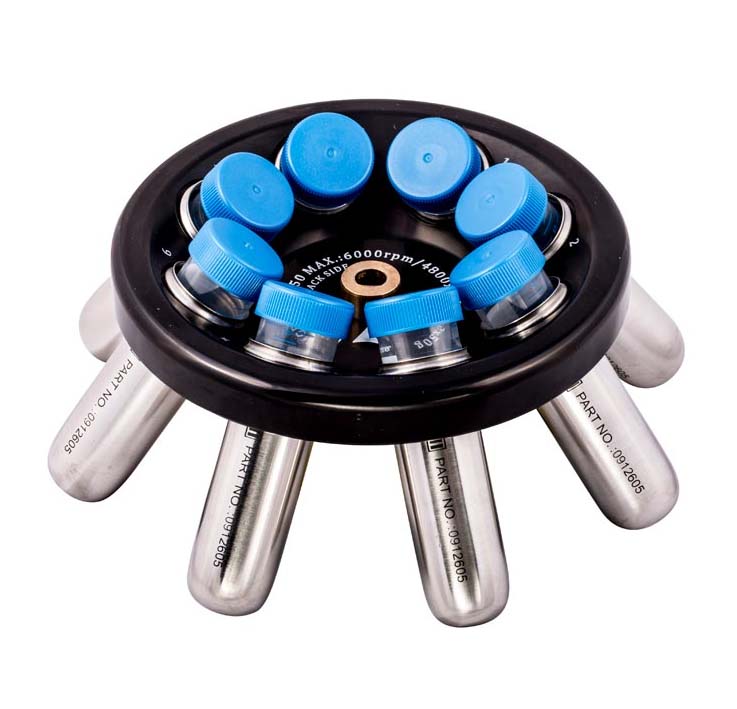

| RM/40100812 | Fixed angle rotor A 8-50 ( 8 tubes 50 ml ). Fixed angle rotor 37°. N° tubes for rotor 8. Max speed: 6.000 rpm. Max acceleration: 4.800 xg. Including n 8 metal bucket B 50XF with Falcon tube type conical 50ml. |

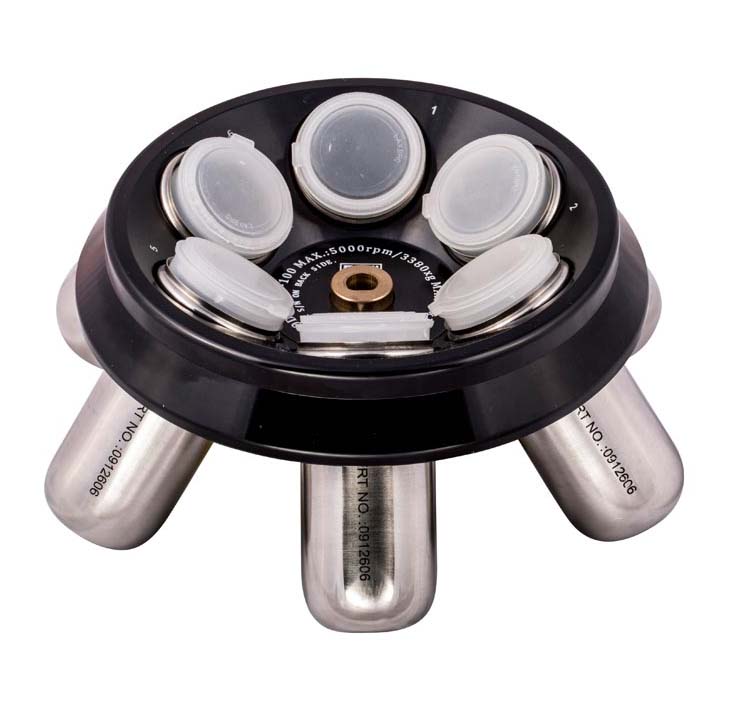

| RM/40100822 | Fixed angle rotor A 6-100 ( 6 tubes 100 ml ). Fixed angle rotor 37°. N° tubes for rotor 6. Max speed: 5.000 rpm. Max acceleration: 3.330 xg. Including n 6 metal bucket B 100-P for rotor A 6-100 with plastic tube round bottom 100 ml. |

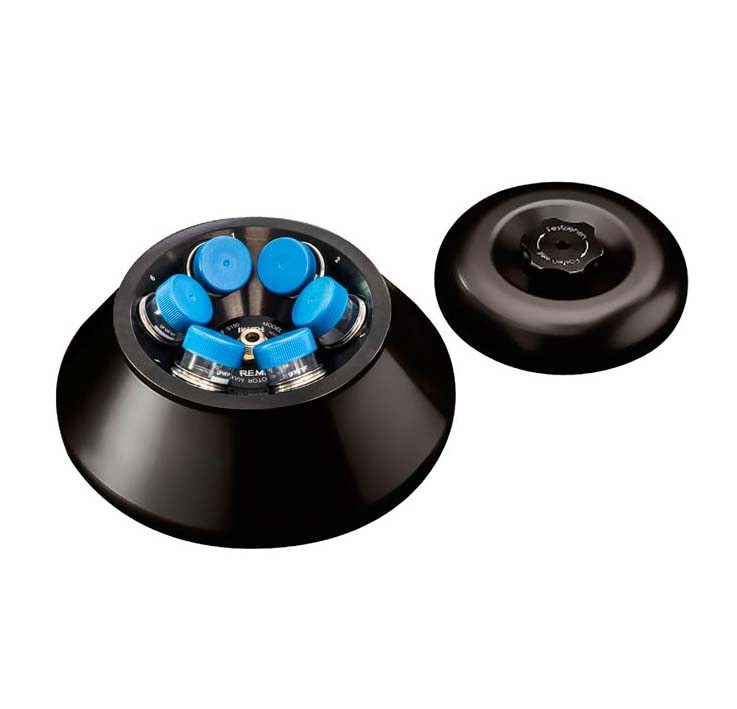

| RM/40100862 | Fixed angle rotor A 6-50 HIGH SPEED (6 tubes 50 ml ). lid included |

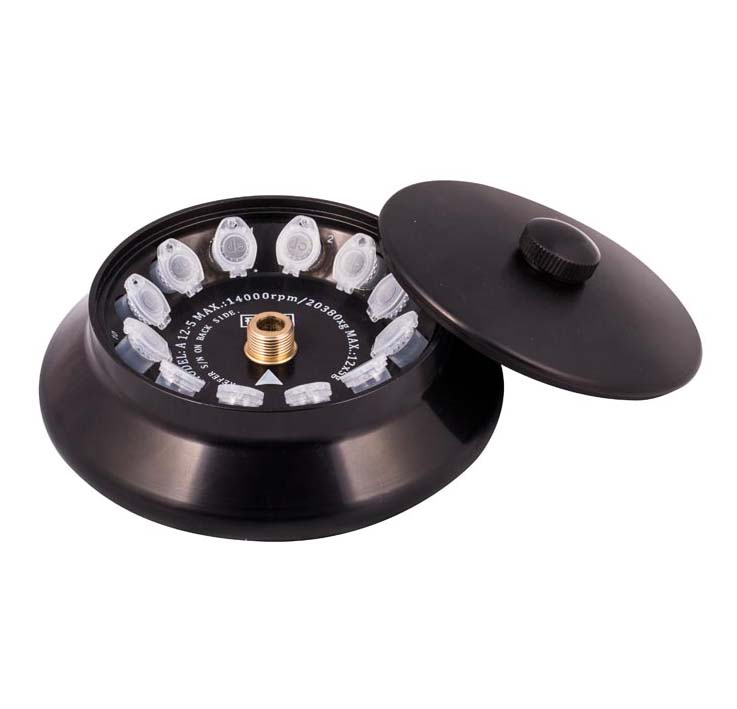

| RM/40100832 | Fixed angle rotor A 12-5 (12 microtubes 5 ml Eppendorf).lid included |

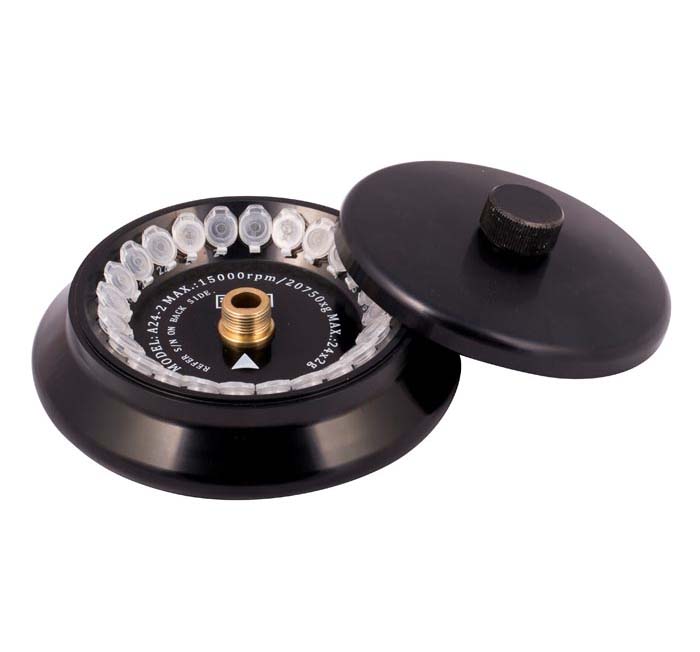

| RM/40100842 | Fixed angle rotor A 24-2 (24 microtubes 1,5-2 ml ).lid included. |
| RM/40100852 | Fixed angle rotor A 36-05 (36 microtubes 0,5 ml ).lid included. |
| RM/40100872 | Fixed angle rotor PCR 4-8 (4 strip with 8 cuvets each for PCR ).lid included. |
| RM/40100882 | Rotor for Hematocrit HE 24-75 (24 capillaries).lid included. |
