Peristaltic pump BT/0102/S
Microflow Variable-Speed digital Peristaltic Pump
Microflow Variable-Speed Peristaltic Pump.
BT/0102/S microflow variable-speed peristaltic pump provides flow range from 0.00011 to 480 mL/min with variable pump heads and tubings.
It offers not only the basic functions such as reversible direction, start/stop and adjustable speed, but also Easy Dispense feature.
With MODBUS RS485 interface, pump is easy to communicate with external device, such as PC, HMI or PLC.
Functions and Features
- Four-digit LED displays speed and working mode
- LED indicator shows working state
- Membrane keypad
- Reversible direction, start/stop control and adjustable speed
- Easy Dispense Mode
- 0.5% high precision rotating speed control with 0.1 rpm speed
- External logic level signal can control start/stop, direction and dispense function; external analog signal can adjust the rotating speed. Signal is optically isolated
- With RS485 MODBUS interface, easy to communicate with external device
- Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof
- Anti-electromagnetic interference feature, wide input voltage range for complex power environment
- Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents
Specifications
- Flow range: 0.00011-480 mL/min
- Speed accuracy: 0.5%
- Speed range: 0.1-100 rpm
- Speed resolution: 0.1 rpm
- Power supply: AC 220V ± 10%, 50Hz/60Hz (standard); AC 110V ± 10%, 50Hz/60Hz (optional)
- Power consumption: < 25W
- External logic level control signal: 5V, 12V (standard), 24V (optional). External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
- External communication interface: RS485 MODBUS
- Ambient temperature: 0-40 °C
- Relative humidity: < 80%
- IP grade: IP31
- Dimensions (L x W x H): 225 x 132 x 128 mm (8.86 x 5.20 x 5.04 inch)
- Weight: 2.7 kg (6.0 lbs)
BT102S Suitable Pump Heads and Tubings, Flow Parameters
Drive type |
Pump head |
Ch |
Tubing size (mm) |
Flow rate per channel (mL/min) |
BT/0102/S (304SS case)
|

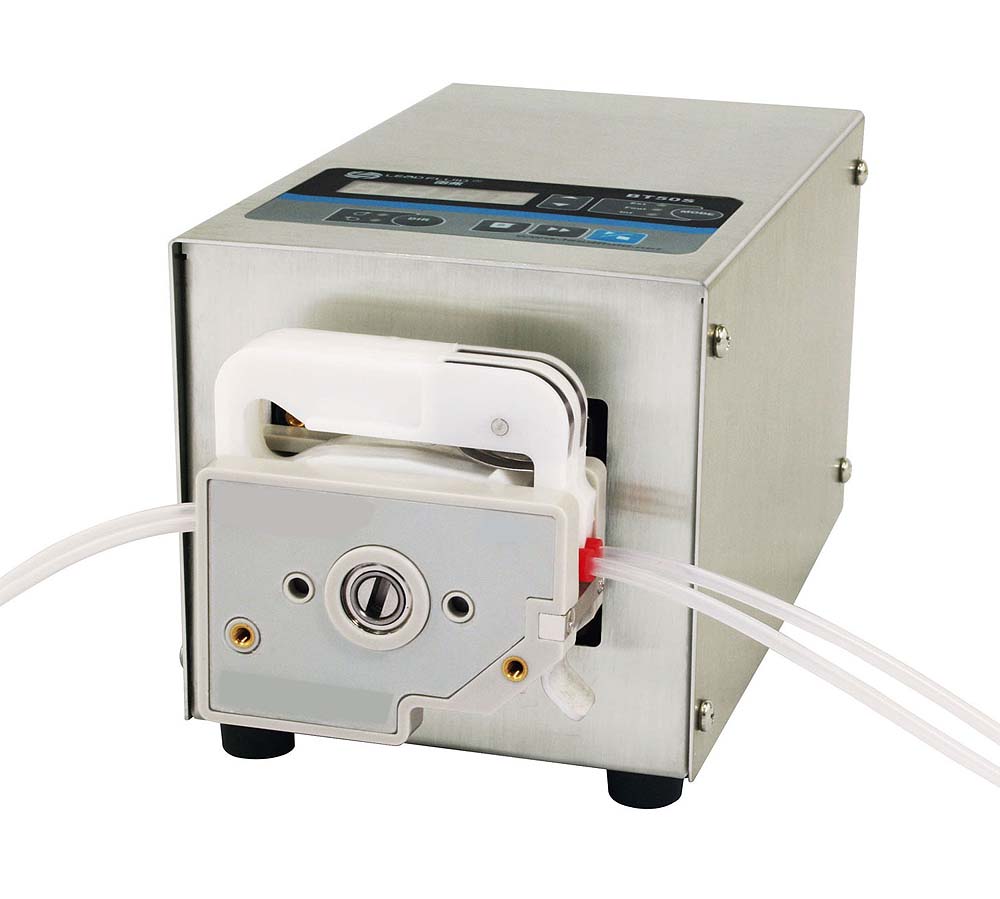

DG/010/1-2 |
1.2 |
Wall: 0.8~1 ID:≤3.17 |
0,0001÷49 |
DT/010/18 |
1 |
13# 14# ,Wall:0.8~1 ID:≤3.17 |
0,0002÷82 |

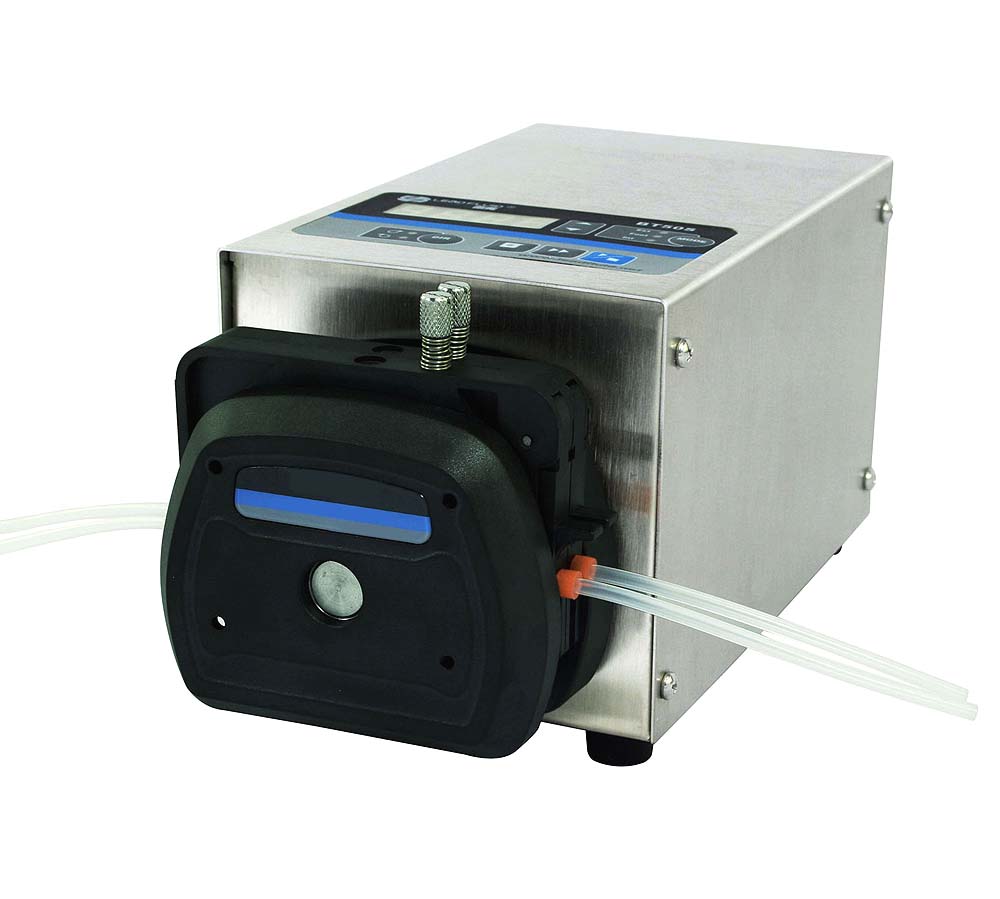

DT/010/28 |
2 |
13# 14# , Wall:0.8~1 ID:≤3.17 |
0,0002÷82 |
YZ/015 |
1 |
13# 14# 16# 19# 25# 17# |
0,006÷280 |
YZ/025 |
1 |
15# 24# |
0,16÷280 |

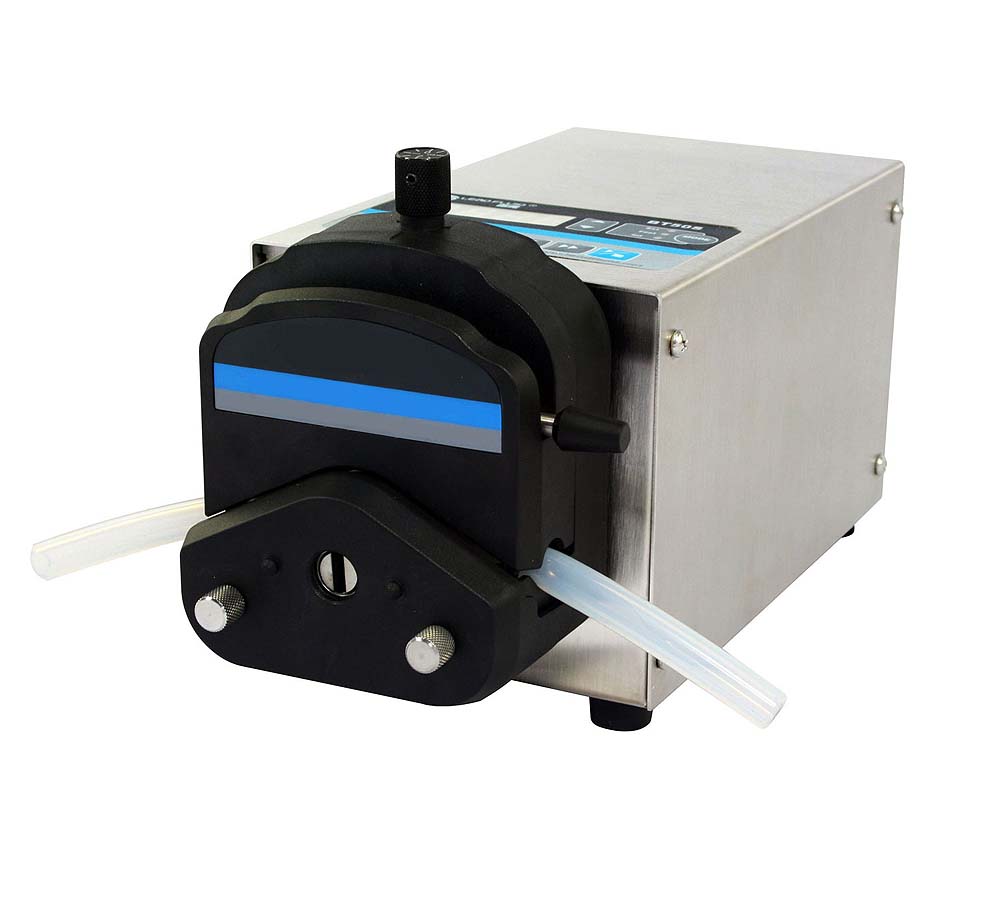

YT/015 |
1 |
13# 14# 16# 19# 25# 17# |
0,006÷380 |
|
YT/025 |
1 |
15# 24# 35# 36# |
0,16÷480 |
