Rotary evaporator 10 l Explosion-proof

With vertical glassware set Vertical, main condenser + vice-condenser

50 l Rotary evaporator.

Rotary evaporator is an extraction system that using the different boiling point of material to seperate target material from a mixture.

It always match with vacuum pump and chiller:

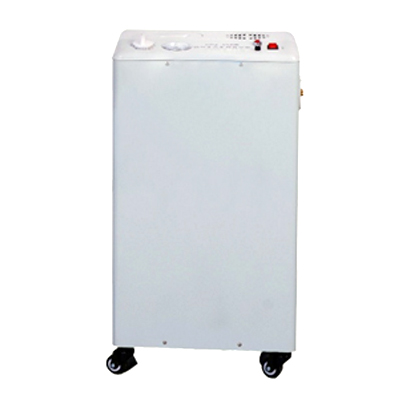

  • Vacuum pump can keep the system at better vacuum degree, and lower the boiling point of the liquid

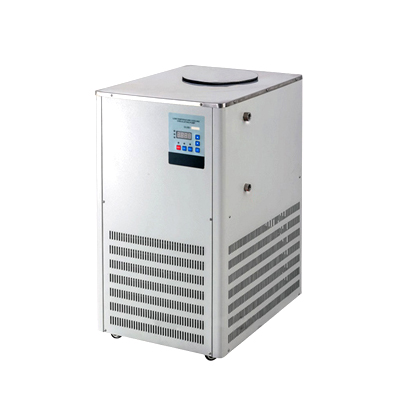

  • Chiller can cooling the condenser, improve the efficiency of collection

Rotary Evaporator is widely used in the process like Concentration, Refining, Separation, Crystallization, etc. and mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.

Al the configuration of the rotary evaporator is Explosion-proof.

The chiller and the vacuum pump are optional. The complete configuration is represented below

The lowest temperature of standard chiller is -20C, we can customize the chiller with -120C but the price will be higher.

Technical specifications

Code SB/HRE/050
Rotary flask 50 l
Collection flask 20 l
Evaporating speed (H2O) >9 l/h
Condenser surface   1,5 m2
Condenser pipe Vertical main condenser + vice condenser
Motor power  250 W
Range rotation speed 3÷90 rpm (digital display)
Bath power 6 kW
Reachable vacuum rate <133 Pa  (1,33 mbar, 1 Torr)
Static temperature control Range & Wave Water: RT ÷ +99°C
Oil: RT ÷ +180°C
(±0.2°C)
Power 220 VF / 50 Hz AC motor
Glass material GG-17 (3.3 HIGH BOROSILICATE GLASS)
PTFE Sealing Standard
PTFE Dump valve Standard
Vacuum meter Standard
Heating bath Stainless steel
