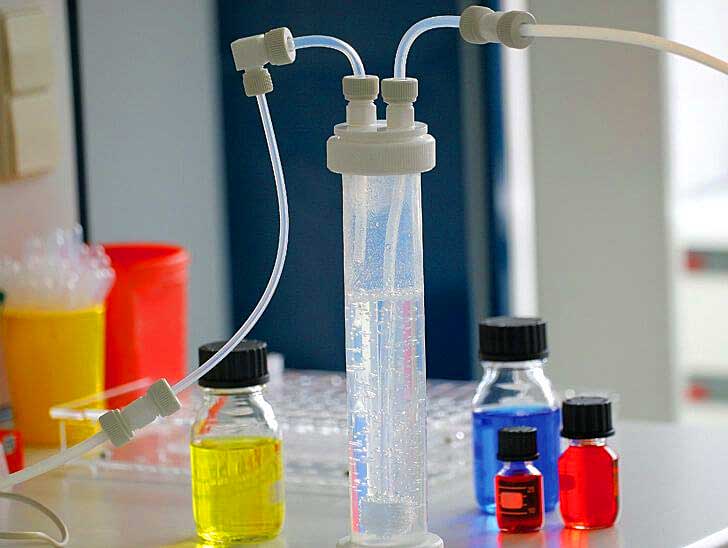

Tall, slim scrubber column made of FEP.
Inlet and outlet tube as well as riser tube are made of FEP (5,6 x 8 mm), bottom and top are made of pure PTFE.
The standard PTFE frit has a pore size of approx. 5µm and is screwed on the riser tube with an M8x1 thread.
It can be exchanged with the PTFE gas distributor with fine bores (Cat. No. N BH/150/116) which needs a lower primary pressure.
The flow rate values for the two models of 500 ml and 1,000 ml at the indicated system pressures are as follows:
500 ml column
1-000 ml column
Available volumes
