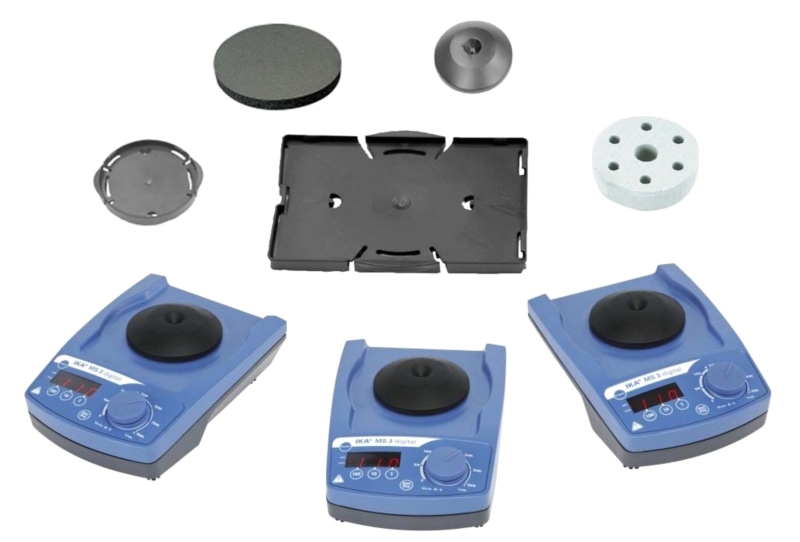

Single microplate shaker

Compact, universal small shaker suitable for shaking 1 microplate

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates.

Features

  • Wide range of attachments
  • Attachment detection
  • Timer with countdown function
  • Continuous or touch operation (with standard attachment)
  • Stable in all speed ranges
  • Sturdy zinc die cast casing.

Two operating modes

  • Mode A (safe mode with attachment detection) the maximum speed of 3.000 rpm is only reached with the standard attachment in touch mode; when using other attachments the speed is limited to 1.300 rpm
  • Mode B (without attachment detection); a speed of 3,000 rpm is possible with all attachments, depending on the application (see accessory list in the manual)

Technical specifications

Code IK/331/9000
Motor rating input 10 W
Motor rating output 8 W
Shaker diameter 4.5 mm
Speed range 0÷3.000 rpm
Permissible shaking weight (incl. attachment) 0,5 kg
Timer 1/60 min ÷ 999 min
Weight 2.9 kg
Dimensions 148×205×63 mm
Number of microtiter plates 1
Protection class according to DIN EN 60529 IP 21
Type of movement Orbital
Operating mode Timer and continuous operation
Speed display Scala
Timer display LED a 7 segmenti
Voltage 100÷240 V
Frequency 50/60 Hz
Permissible ambient T/relative Humidity 40°C / 80% U.R.
