Sonicator 600 W / 20÷500 ml

Complete configuration with anti-noise box, probe Ø 16 mm, software, temperature probe

Ultrasonic Processor FS/000600/N

In the complete configuration that includes the Ø 16 mm probe, the sound isolation box, the lift table, the temperature probe and the PC use software.

Supplied

Ultrasonic disintegrator FS/000600/N
Probe Ø 16 mm (range 20÷500 ml) *
Noise insulation box
Lift table
Temperature probe
Software

* Also available Ø 13 (10÷300 ml) and Ø 18 mm (50÷1.500 ml) optional probes

Major Function

Auto-tuning for convenience of use and optimal processing efficiency
99h total working time controller, 1s – 99h, count-down time display
Working time can be displayed as aggregate number
On/off impulse timer: make sure to deal with temperature sensitive sample. On and off can be set from 1s to 99min
Automatic amplitude compensation to make the amplitude not changed following the carring.
All the function can be displayed in the large LCD screen , operation easy, Fully microprocessor controlled and completely programmable.
Configure : temperature probe , temperature display and protection when the temperature is over limition

Common applications

Mixing, blending, emulsifying, and processing solutions
Reducing particle size of suspensions
Dispersing suspensions
Disrupting cells
Catalyzing chemical reaction

Technical parameters

Model: FS/000600N
Output Power: 600W
Net weight: 4.5Kg
Frequency: 20KHz
Timer: LED 1s – 99 hours adjustable
Power adjustable: 0%--100%,
Impulse : number closed loop, open loop: set:1s-99min
Piezoelectric frequency energy converter: CV33,
Lead zirconate titanate (PZT) pyroelectric ceramics
Converter dimensions: Diameter:73 mm / Length:170 mm / Weight: 870 g Length of cable: 150 cm

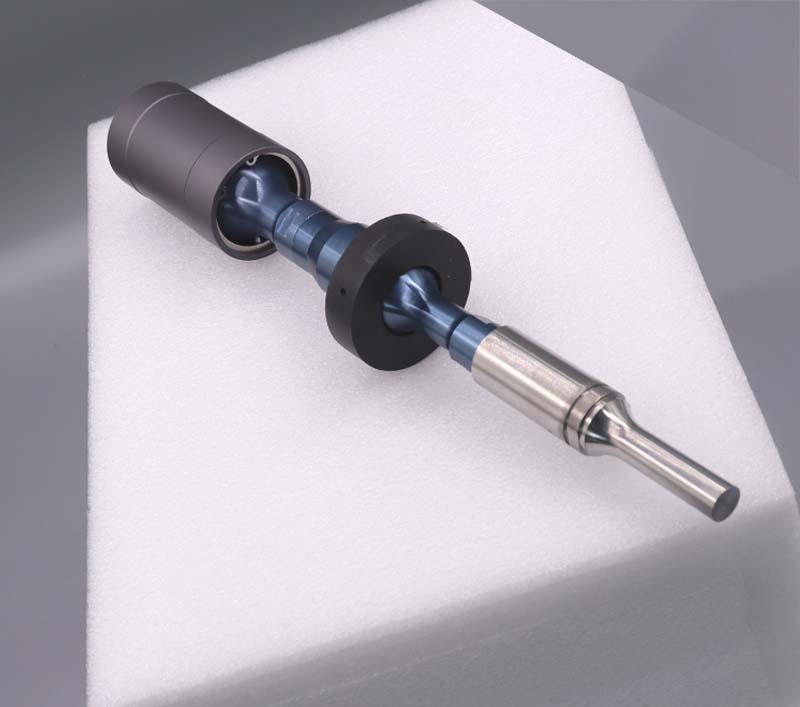

Standard probe: titanium alloy material TI-6AL-4V
Diameter(probe): 16 mm (can also choose 8/10/12/13/18 mm)
Processing volume: 20÷500 ml
Total length:139 mm
weight: 400 g
Temperture sensor:0--300°C
Power Supply: 220 V 50 Hz
Free accessofies: ABS Plastic soundproof box / A stainless steel lifting platform included
