Stirring/Heating system with controller

Simultaneous wireless control for an unlimited number of stirrers

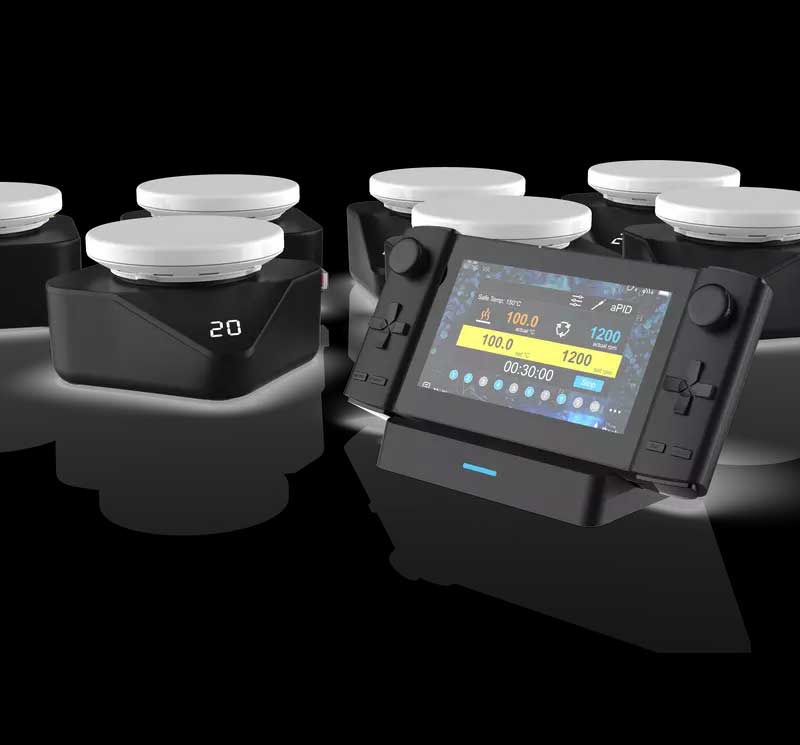

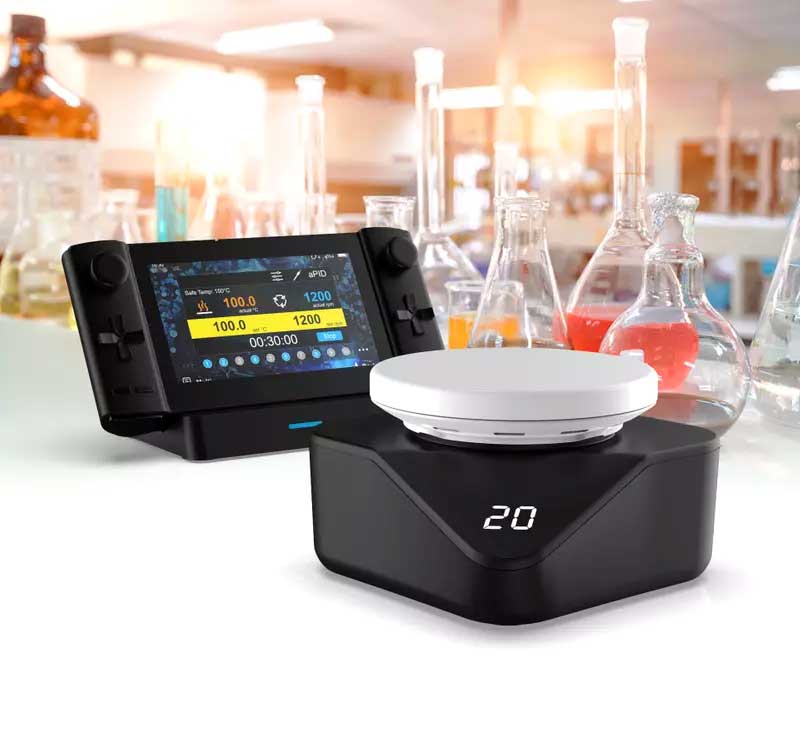

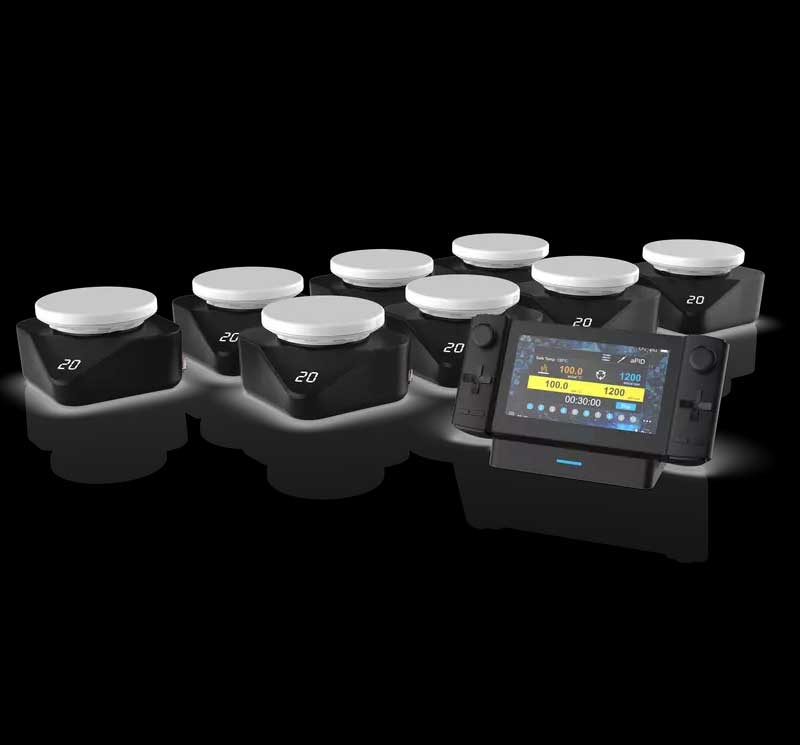

Multiple magnetic stirrer system with heating plate with centralized controller.

  • This multiple configuration is designed to maximize productivity in the laboratory for protocols that require accurate repeatability and reproducibility of tests.
  • The central hub connected to the different stirrers allows highly accurate temperature and stirring speed control.
  • Equipped with a large touch screen display, it allows viewing of the set and current parameters of the different stirring and heating units
  • Plates ensure uniform stirring and heating and are ideal for comparison tests of different liquids and solutions undergoing simultaneous testing
  • The plates are equipped with advanced ceramic material coating, resistant to corrosive agents, easy to clean.
  • The controller is connected to the individual units via bluetooth, wireless 2.4G and USB, for a wiring that can realize real-time data transmission with accurate control ensuring a wide versatility of use for users

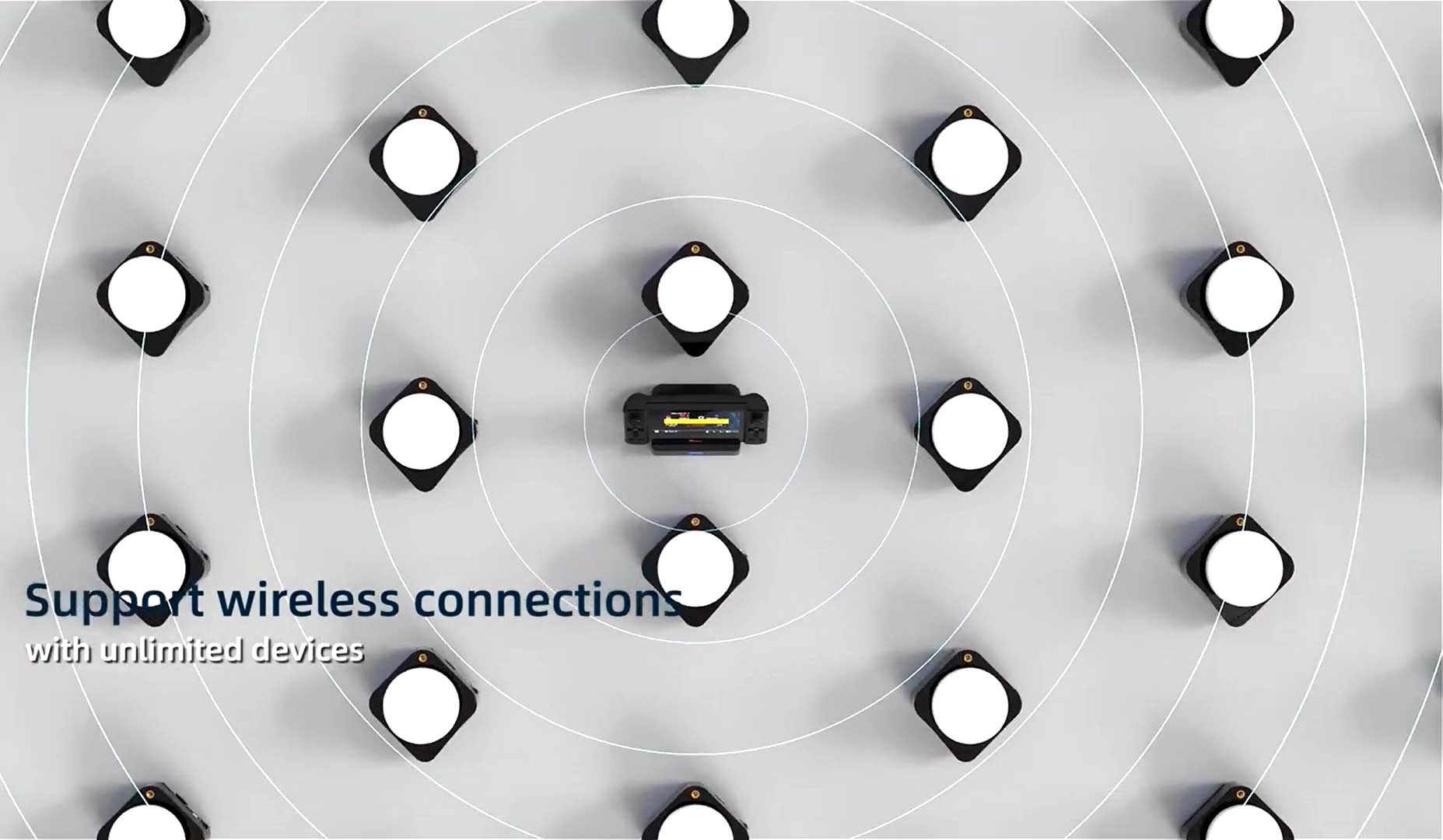

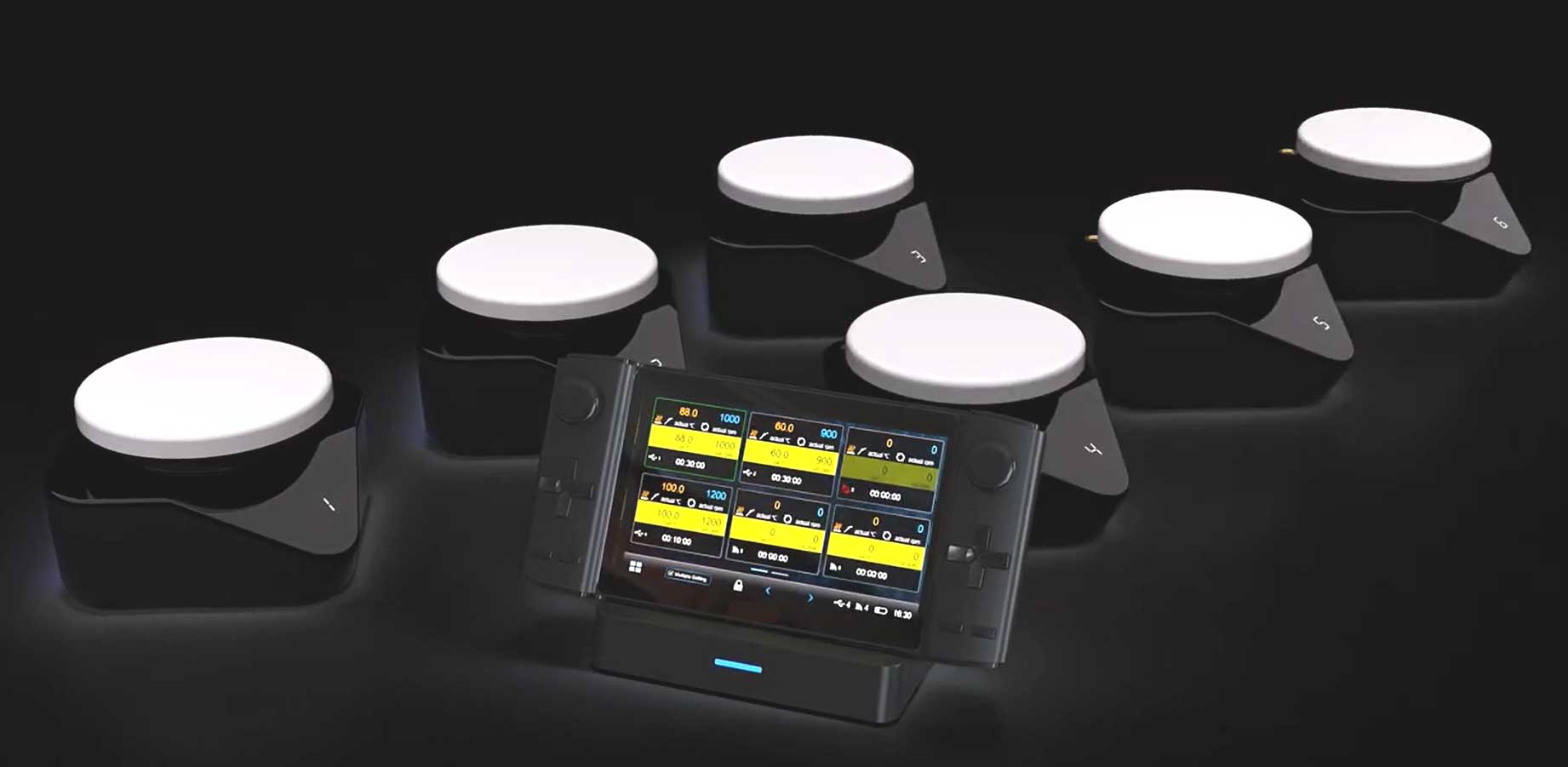

  • The instrument therefore can operate with both wired and wirelesse connections: when using the wired connection, the controller hub can be connected to up to 6 heated magnetic stirrers, while for wireless connections there is no limit to the number of stirrers
  • You can therefore configure your stirring station according to your needs and also integrate new units in the future
  • Another advantage is to be able to arrange the stirrers freely on the workbench allowing space optimization.

Instrument features

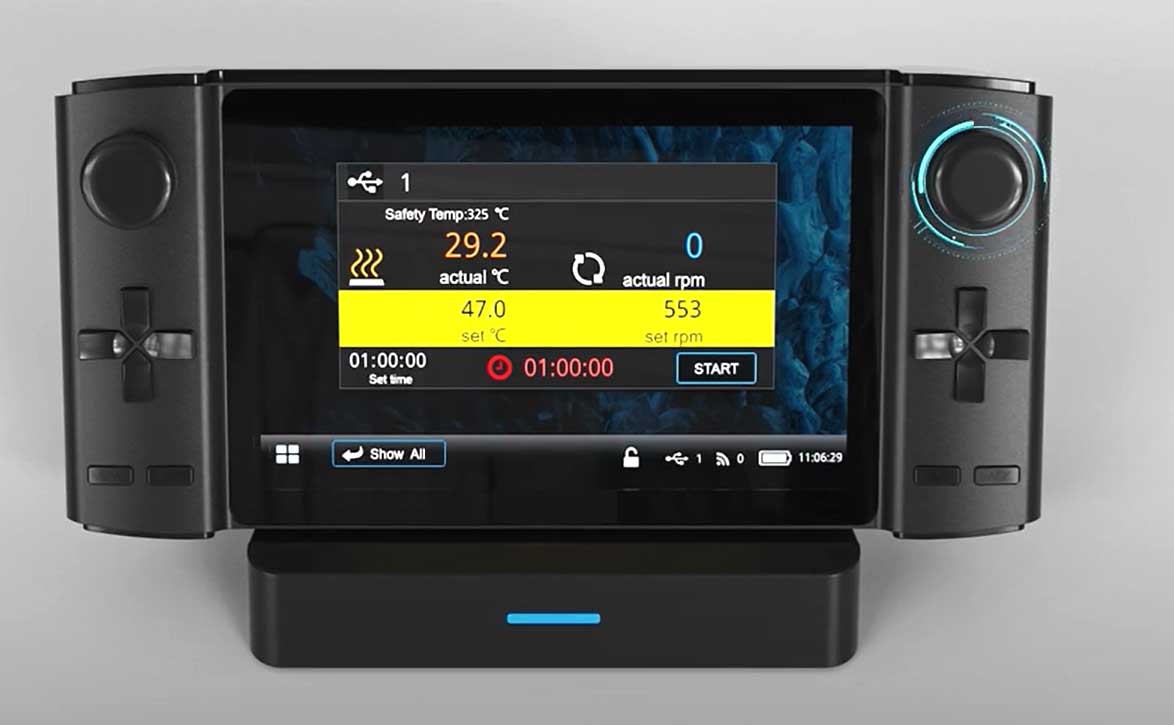

  • The hub controller is equipped with a high-resolution 7-inch LCD touch screen display
  • Temperature, stirring speed and test time can be set independently for each heated magnetic stirrer connected to the controller hub
  • Bluetooth, wireless 2.4G and wired USB connectivity options enable real-time data transmission and precise control
  • Maximum plate temperature can reach 310°C, while the safety temperature range is 50°C to 325°C
  • PID control system that ensures rapid heating and accurate temperature setting
  • Ceramic-coated heating plate is resistant to high temperatures and chemical corrosion and is easy to clean
  • Virtually maintenance-free and long-life “brushless” DC induction motors
  • LED display of stirring units shows instrument tracking number for easy identification on control and test speed and temperature
  • Controller is equipped with fast and convenient charging station

Technical specifications

Controller dimensions263×126×40 mm
Charge stand dimensions167×134×92 mm
Stirrer dimensions166×166×106 mm
Plate materialAluminum alloy with special ceramic material coating
Ø Plate130 mm
Max temperature310°C
Speed range50÷1.500 rpm
Speed accuracy+/- 1 rpm
Safety temperature range50÷325°C
Temperature accuracy+/- 1°C
Timer99 h / 59 MIN
Motor input24 V / 30 W
Motor  "Brushless"
External temperature sensorOptional
Max stirrer capacity20 l
Power supply200÷240/ 100÷120 VAC / 50/60 Hz
Magnetic barMax 60 mm
Display stirrerLED
Display controller7-inch Touch Screen
BatteryLitium 7.4 V
Charging time3 h
Wireless effective connection distance10 m

To order

CodeDescription
FS/MS/321/002Controller with touch screen display

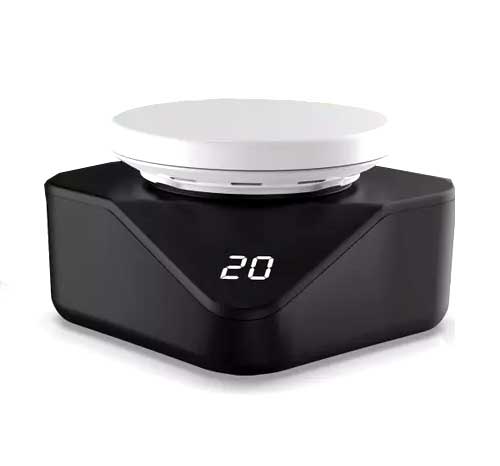

FS/MS/321/001Magnetic heating stirrer
FS/MS/321/PKComplete controller configuration + 6 heating magnetic stirrers
