Swing rotor 4×175 ml

rotor configuration with wide assortment of bascules, buckets, inserts

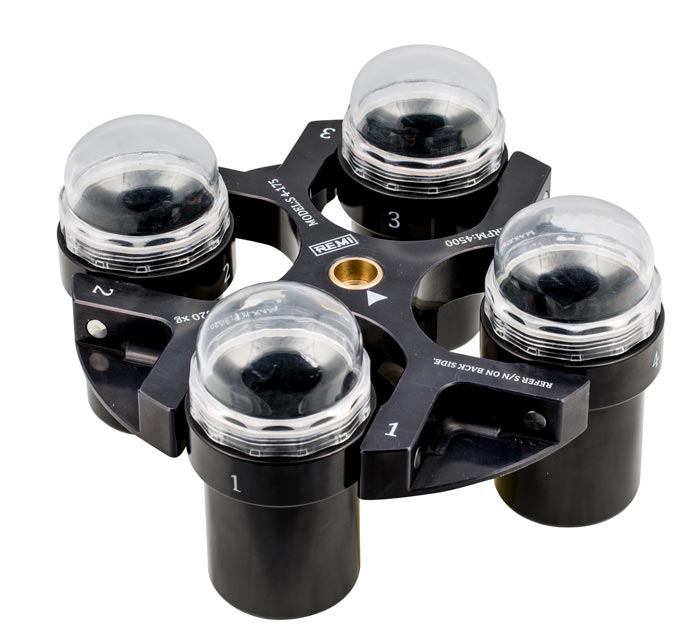

Swing rotor SB 4-175 with 4 bucket and BIO SAFE caps.

Kit composed by swing out rotor S 4-175, 4 buckets B 175 and 4 Biosafe lids L 175

Maximum capacity 4x175 ml
Maximum speed 4.500 rpm
Maximum acceleration 3.600 xg

I'ts possible to buy only the cruise rotor and get the configuration with a wide range of buckets.

The range of inserts complete the accessories for the buckets of the swing rotor.

Swing rotor complete or only cruise

  Code Description
RM/40100502 Swing rotor SB 4-175 with 4 bucket and BIO SAFE caps. Kit composed by swing out rotor S 4-175, 4 buckets B 175 and 4 Biosafe lids L 175

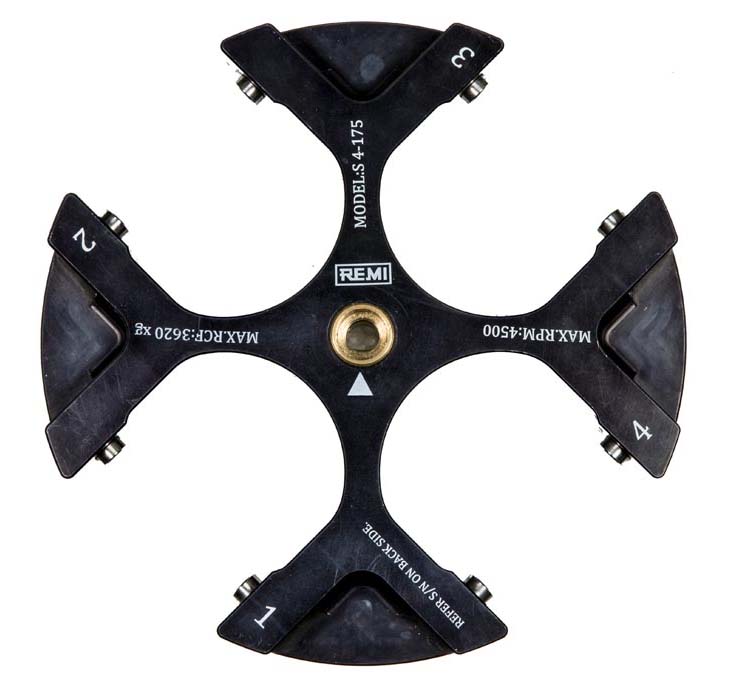

RM/40101502 Swing-out rotor S 4 - 175 only rotor
Swing out rotor for aluminum carriers



Inserts for beakers B 175

  Code Description

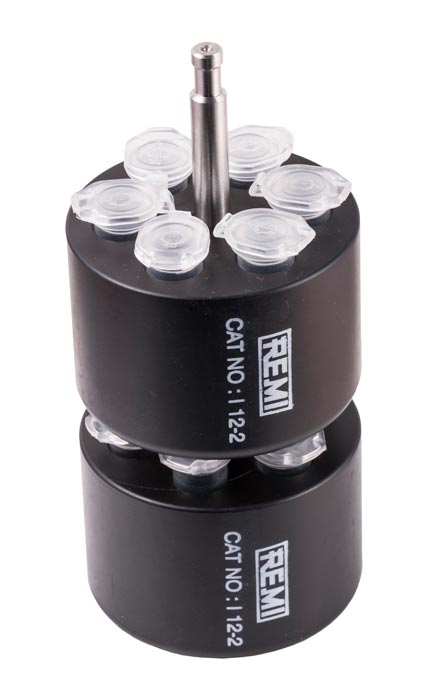

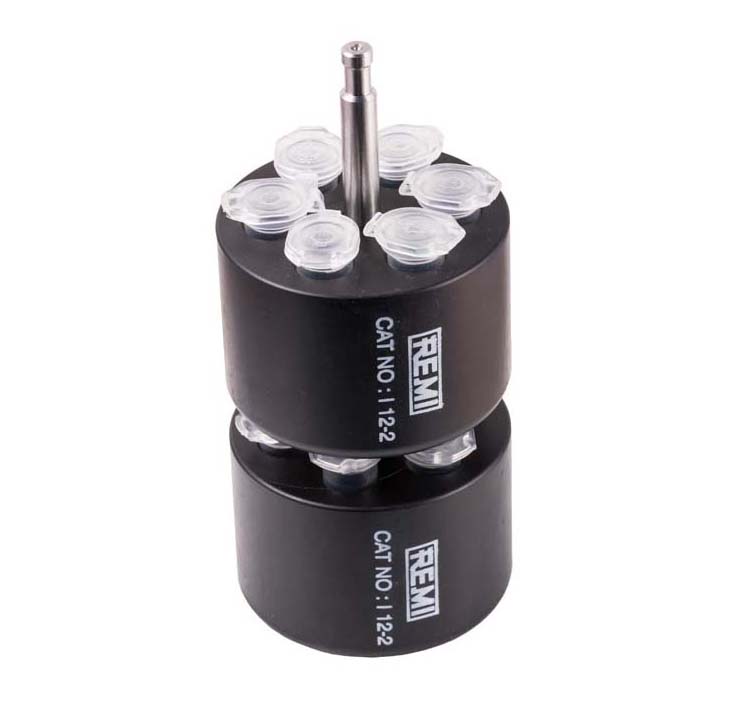

RM/40100602 Insert I 12-2 (12microtubes 1,5-2 ml) for rotor SB 4-175. set of 4pcs.
For microtubes Eppendorf®
Max tubes for insert 12
Max tubes for rotor 48
Capacity 1,5-2 ml
Ø max. 10,6 mm
H max. 42 mm

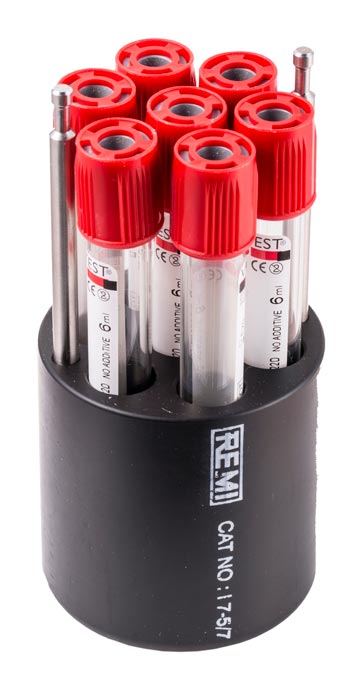

RM/40100612 Insert I 7-5.7 (7 tubes 5-7 ml) for rotor SB 4-175. set of 4pcs.
For collection tubes Vacutainer®
Max tubes for insert 7
Max tubes for rotor 28
Capacity 5-7 ml
Ø max. 13 mm
H max. 116 mm

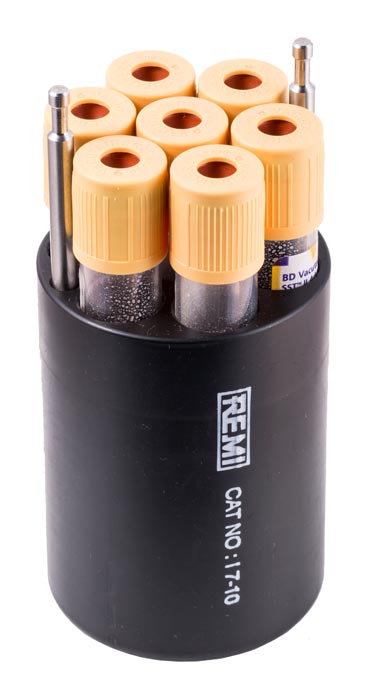

RM/40100622 Insert I 7-10 (7 tubes 10 ml) for rotor SB 4-175. set of 4pcs.
For collection tubes Vacutainer®
Max tubes for insert 7
Max tubes for rotor 28
Capacity 10 ml Ø max. 16 mm
H max. 114 mm

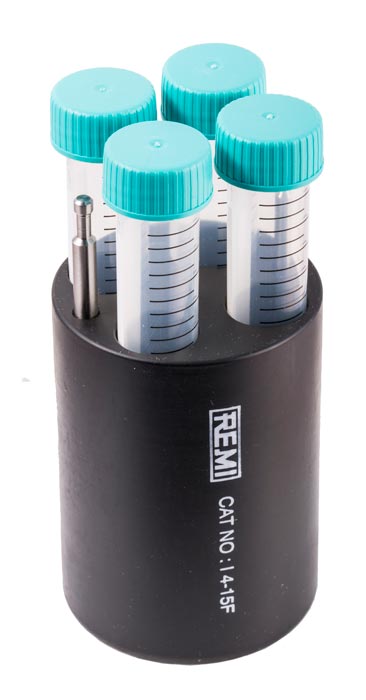

RM/40100632 Insert I 4-15F (4 tubes 15 ml Falcon type) for rotor SB 4-175. set of 4pcs.
For conical bottom tubes as Falcon®
Max tubes for insert 4
Max tubes for rotor 16
Capacity 15 ml
Ø max. 16,5 mm
H max. 120 mm

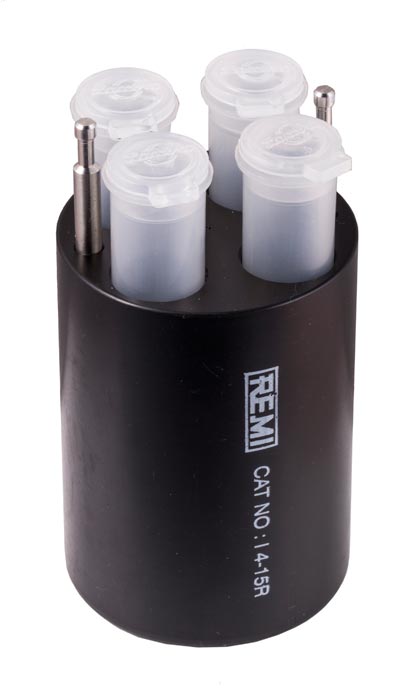

RM/40100642 Insert I 4-15R (4 tubes 15 ml bottom round) for rotor SB 4-175. set of 4pcs.
For round bottom tubes
Max tubes for insert 4
Max tubes for rotor 16
Capacity 15 ml
Ø max. 17 mm
H max. 110 mm

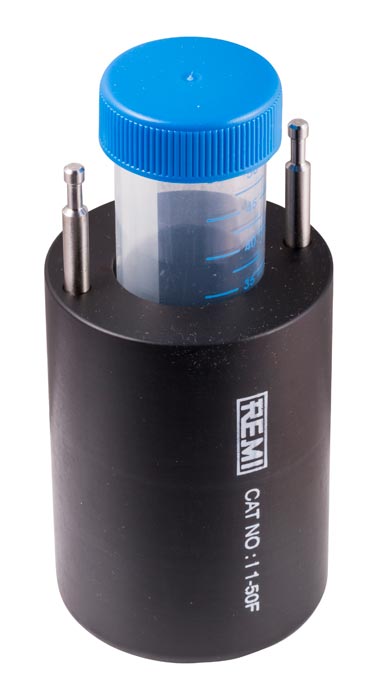

RM/40100652 Insert I 1-50F (1 tube 50 ml Falcon type) for rotor SB 4-175. set of 4pcs.
For conical bottom tubes as Falcon®
Max tubes for insert 1
Max tubes for rotor 4
Capacity 50 ml
Ø max. 29 mm
H max. 116 mm

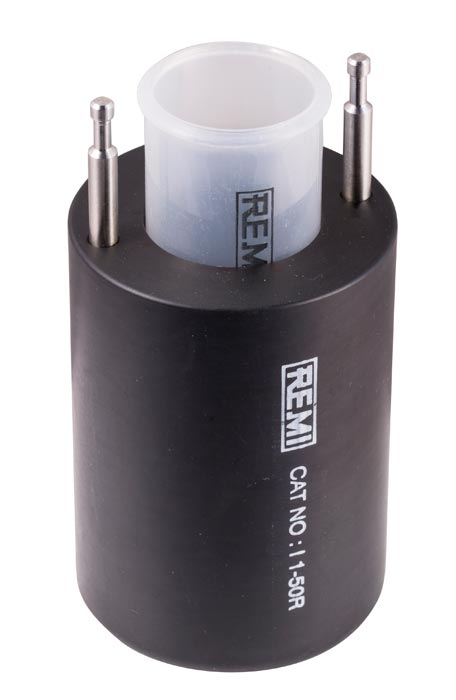

RM/40100662 Insert I 1-50R (1 tube 50 ml round bottom) for rotor SB 4-175. set of 4pcs.
For round bottom tubes
Max tubes for insert 1
Max tubes for rotor 4
Capacity 50 ml
Ø max. 30 mm
H max. 110 mm
RM/40100672 Insert I 1-100 (1 tube 100 ml round bottom) for rotor SB 4-175. set of 4pcs.
For round bottom tubes
Max tubes for insert 1
Max tubes for rotor 4
Capacity 100 ml
Ø max. 45,5 mm
H max. 102 mm



Buckets for swing rotor S 4-175

  Code Description

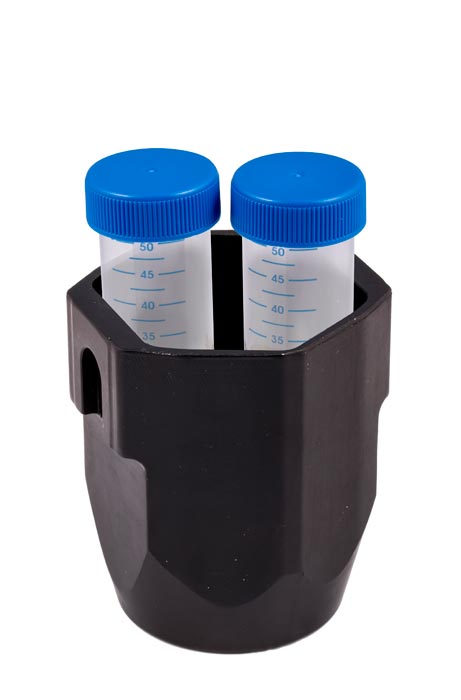

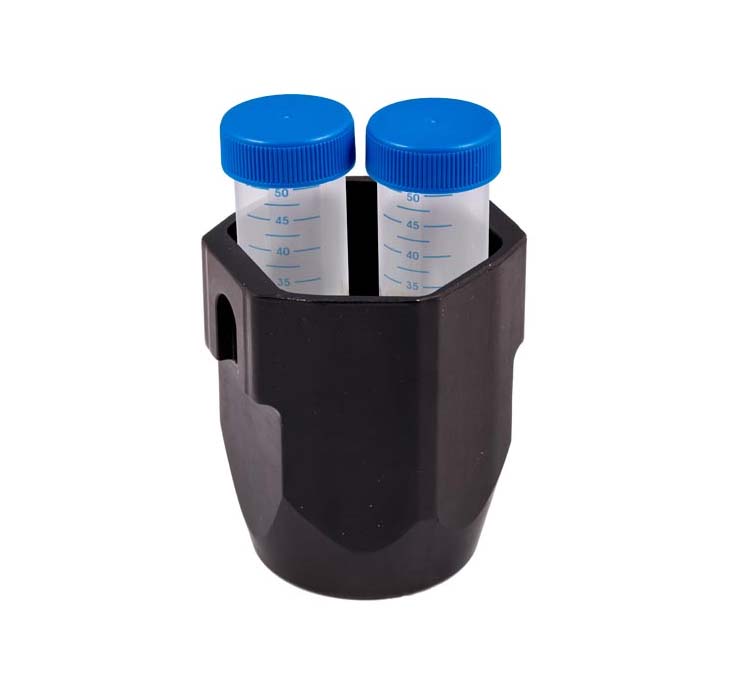

RM/40101532 B 2-50F Bucket B 2-50 da 2x50ml conical bottom

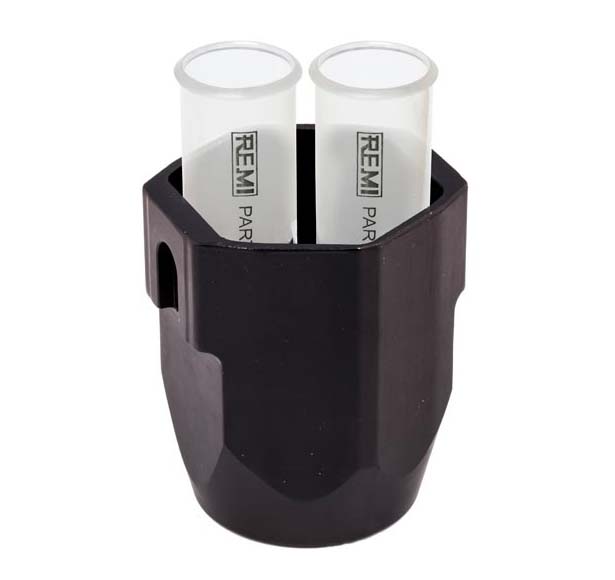

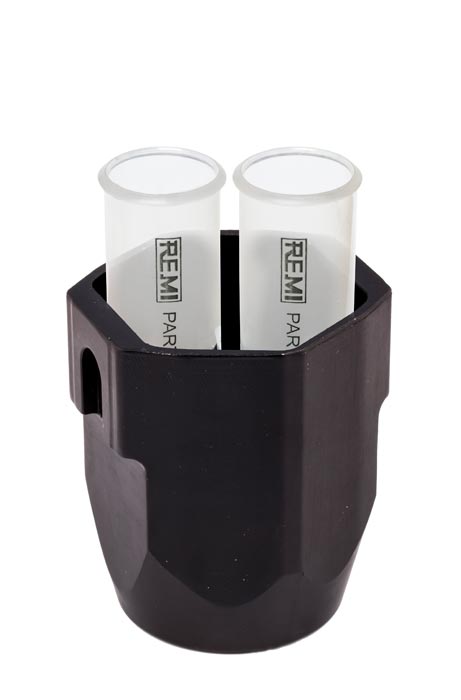

RM/40101582 B 2-50R Bucket  B 2-50 da 2x50ml round bottom

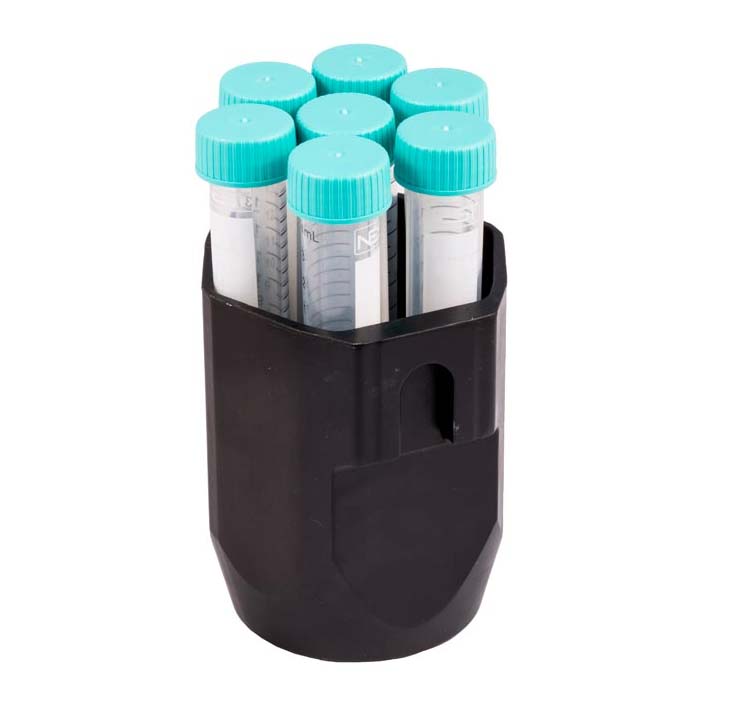

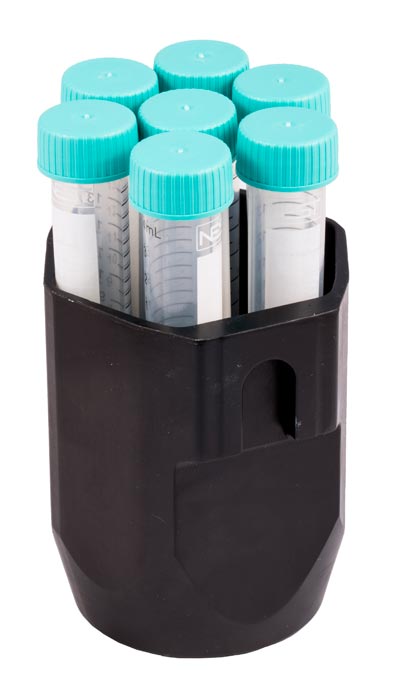

RM/40101542 B 7-15F Bucket B 7-15 for 7 tubes 15 ml conical bottom

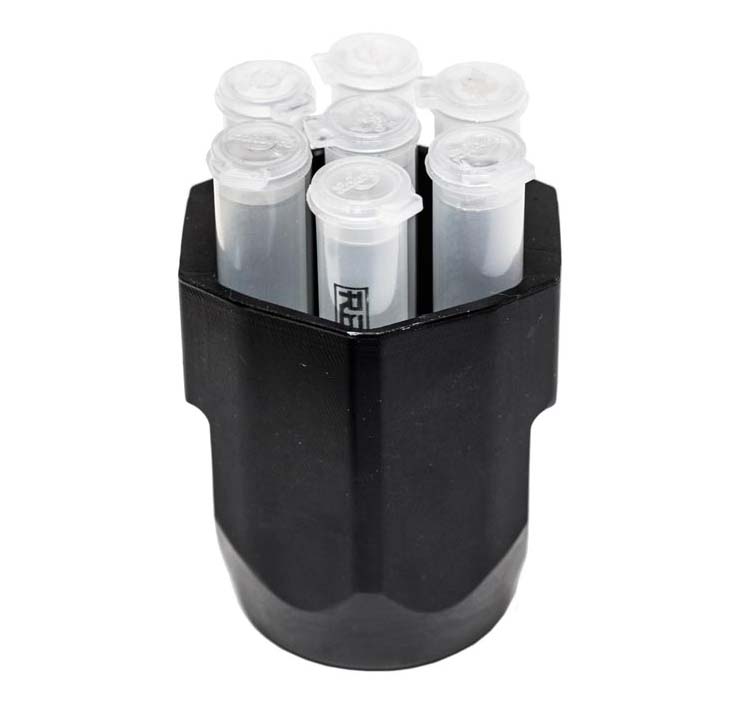

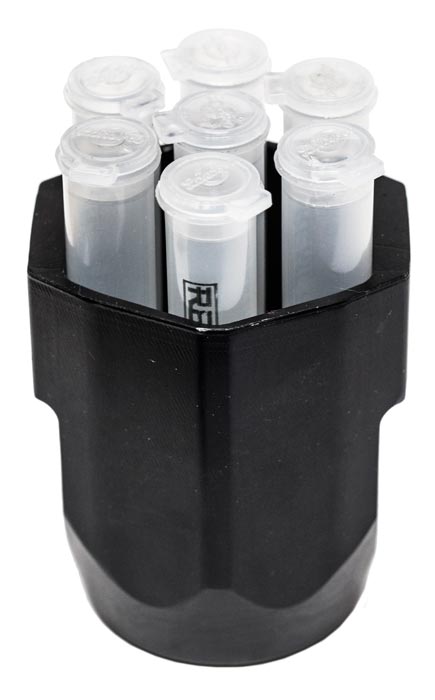

RM/40101592 B 7-15R Bucket B 7-15 for 7 tubes 15 ml round bottom

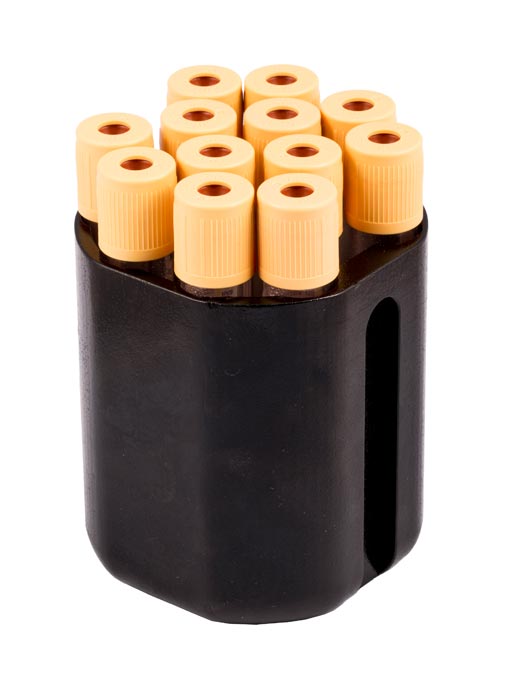

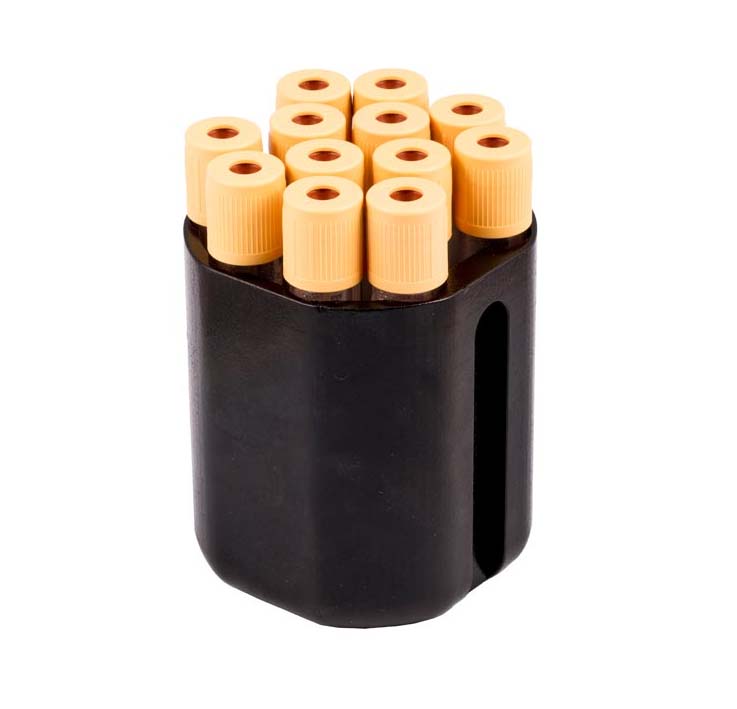

RM/40101552 B 12-10 Bucket B 12-10 for 12 tubes 10 ml

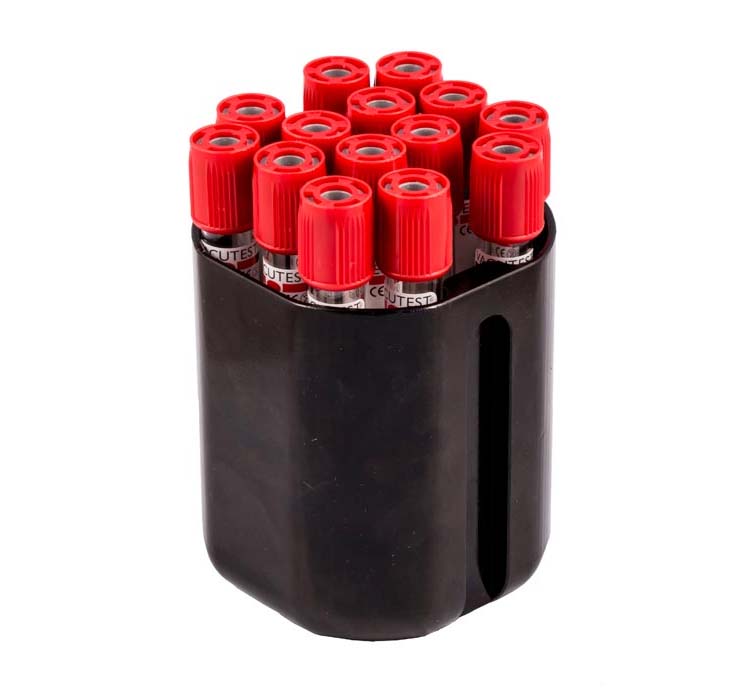

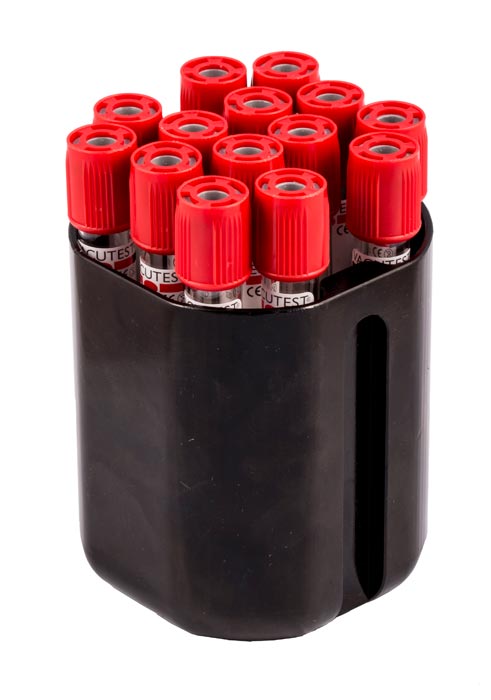

RM/40101562 B 14-5/7 Bucket B 14-5.7 for tubes 5-7 ml

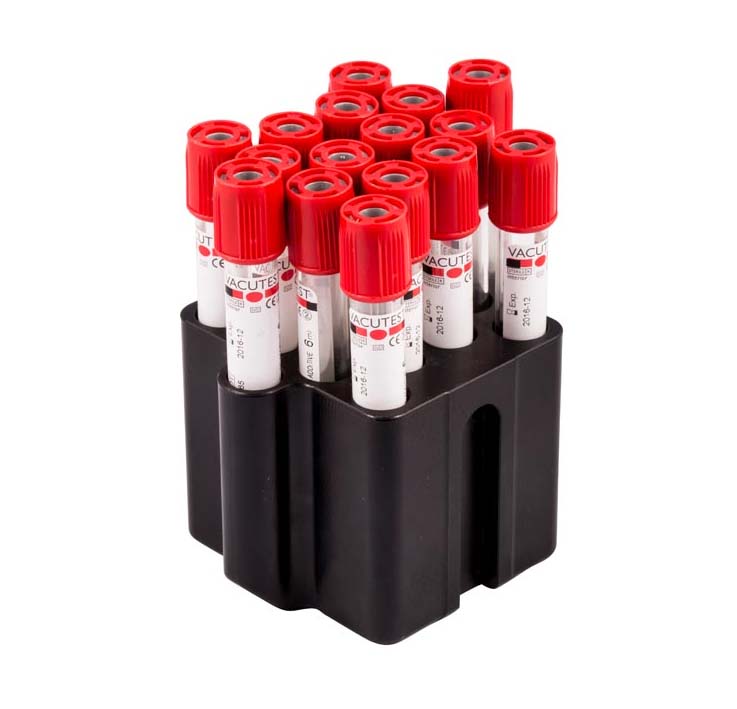

RM/40101572 B 16-5/7 Bucket B 16-5.7 for tubes 5-7 ml
