Syringe Filters Nylon
Non sterile disposable Nylon syringe filters

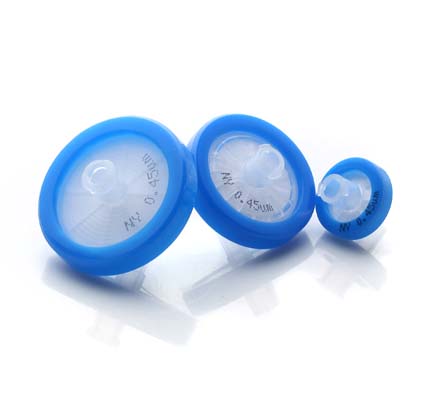

"Nylon 66" Syringe Filters FB Series, non sterile.
The membrane is a hydrophillic and compatible with aqueous solution and solvents, commonly used for general laboratory filtration and filtration of HPLC samples prior to injection.
- Hydrophilic Nylon membranes are suitable for filtering aqueous solutions and most organic solvents
- It’s ideal for HPLC, GC or dissolution sample analysis and widely used in most biological preparations, Electric semiconductor, industrial water filtration, chemicals filtration, drinks filtration
- Nylon is an extremely clean and strong membrane with very low extractable levels and is a good 'workhorse' membrane choice where acidic samples are not involved
NY syringe filter has 3 kind of diameters, 13mm, 25mm and 30mm.
It is cut into some disc membrane that guarantee exceptional integrity when filtering some sample.
Then through into non-gap sealing, virgin medical PP material is placed to contain all the disc membrane.
It has superior performance to prevent leak of sample solvent and can promise membrane area being used in a large filtration area.
To order
| Code |
Pore (µm) |
Diameter (mm) |
Qty |
| FBS/13NY/022 |
0,22 |
Ø 13 |
100 |
| FBS/13NY/045 |
0,45 |
Ø 13 |
100 |
| FBS/25NY/022 |
0,22 |
Ø 25 |
100 |
| FBS/25NY/045 |
0,45 |
Ø 25 |
100 |
| FBS/30NY/022 |
0,22 |
Ø 30 |
100 |
| FBS/30NY/045 |
0,45 |
Ø 30 |
100 |
Disposable syringe filters: general features
The FB Series syringe filters are syringe-operated filters for the clarification of aqueous solutions (column, eluates, tissue culture additives, HPLC samples, etc.). It's further to do the beautification appearance on general syringe filters basis and containing high quuality membrane materials to make your experiment performance more perfect.
Its design of color coding, make the produtcs more beautiful and innovative. The classic range is available in all of the major membranes including Nylon, PTFE, PVDF, CA and PES, wich are supplied in Ø 13 mm, 25 mm, 30 mm formats in polypropylene housings.
- Color coding - Easier to tel the filter membrane
- Better membrane media - Improved membrane flow rates
- Application compatibility - Broad range of filtration media meets diverse application needs and best for chromatography applications
Calidated HPLC performance
- HPLC certification which guarantees the filters will not produce extraneous peaks in the UV range
- 100% integrity tested with higher burst strenght ratings assuring they will perform consistently
- 0,45 µm for most clarification applications and 0,22 µm when fine particulate removal is required
- Other pore size are avaailable in 0,8 µm to 5 µm just for some membranes
Specifications
| Filter diameter |
Ø 13 mm |
Ø 25 mm |
Ø 30 mm |
| Effective filtration area (cm2) |
1,09 |
4,08 |
5,39 |
| Maximum pressure (at 20°C) |
87 psi (6.0 bar) |
| Maximum operating temperature |
50°C |
| Housing material |
Polypropylene (PP) |
| Hold up volume (µl) |
<25 |
<100 |
<200 |
| Sample volume (ml) |
<10 |
<100 |
<200 |
| Connectors |
Inlet: Female "Luer Lock"
Outlet: Male "Slip Luer" |
Applications
- HPLC - Sample preparation
- Routine QC analysis
- Content uniformity
- Removal of protein precipitate
- Dissolution testing
- Food analysis
- Bioscience analysis
- Enviromental samples
Enhanced quality
No matter in manufacturing or testing, quality is a life of product as principal we are all continuosly running after
QC Control
After manufacturing it in shape we still focus on testing it to judge whether it is Ok and using strict quality controlled system to forbid shoddy products.
Every 90 in 100 can be sold to our customer in the end, 10 pieces are to be died out.
The shelf line of packaged product is also monitored and controlled within our warehouses to ensure efficient stock rotation.
Each piece throught this system is selected after concerning 5 factors with critical specifications set for:
- Bubble point
- Burst pressure
- Membrane adsorption (protein)
- Flow rate
- UV extractables (by HPLC)
