« Come back | You are in: Skip Navigation Links Home » Liquid Handling » Syringes » Syringes Series N fixed needles dosage of liquids »   Syringes N Series Fixed Needle


Check other options
Microsyringes Series N fixed needles dosage of liquids
Volume 25 µl fixed needle Ø 0,72×51 mm tip "a"

€ 51.20
iva esc.
Microsyringes Series N fixed needles dosage of liquids
Volume 50 µl fixed needle 0,72×51 mm tip "a"

€ 51.20
iva esc.
Microsyringes Series N fixed needles dosage of liquids
Volume 100 µl fixed needle Ø 0,72×51 mm tip "a"

€ 57.60
iva esc.
Microsyringes Series N fixed needles dosage of liquids
Volume 250 µl fixed needle Ø 0,72×51 mm tip "a"

€ 208.00
iva esc.
Microsyringes Series N fixed needles dosage of liquids
Volume 500 µl ago fisso Ø 0,72×51 mm punta "a"

€ 222.40
iva esc.
Microsyringes Series N fixed needles dosage of liquids
Volume 10 µl fixed needle Ø 0,47×70 mm tip "a"

€ 184.00
iva esc.
Microsyringes Series N fixed needles dosage of liquids
Volume 25 µl fixed needle Ø 0,72×70 mm tip "a"

€ 54.40
iva esc.
Microsyringes Series N fixed needles dosage of liquids
Volume 50 µl fixed needle Ø 0,72×70 mm tip "a"

€ 201.60
iva esc.
Microsyringes Series N fixed needles dosage of liquids
Volume 100 µl fixed needle Ø 0,72×70 mm tip "a"

€ 201.60
iva esc.
Microsyringes Series N fixed needles dosage of liquids

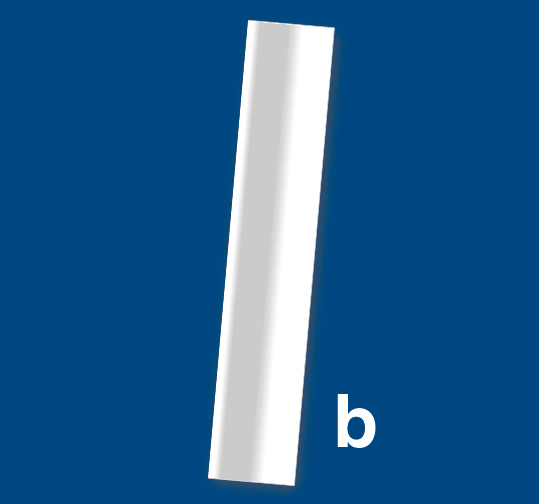

Volume 5 µl fixed needle Ø 0,47×51 mm tip "b"

€ 156.80
iva esc.
1234

Syringes N Series Fixed Needle

For dosage of liquids

Microsyringes Series N, fixed needles, for dosage of liquids.

Features:

  • Glass barrel: borosilicate 3.3
  • Plunger: stainless steel
  • Precision: ± 1% syringe volume
  • Four tip design

Main use:

  • Sample dosage for gas chromatography

  • HPLC-valves

  • Autosamplers

  • Thin Layer Chromatography (TLC)

Tip needle design:

  1. This tip is designed for optimum penetration of the septa and prevents septa coring. The 17° bevel is the proven standard. In addition our electro tapered tip minimizes the necessary piercing force and diameter of the injection channel.
  2. This tip has a 90° bevel for precise pipetting. This design releases drops completely, for maximum reproducibility. It is widely used for HPLC sample injection.
  3. This tip has been specially designed for autosamplers in routine applications. The electro tapered tip and the polished 90° square end eliminate burrs. It is ideal for PTFE laminated seals and regular septas.
  4. Tip "d" is equipped with a side opening for dispensing and filling. This design avoids plugging and minimizes septum damage. It is ideal for thicker septa,



Non autoclavable:

Fixed Needle (FN) not autoclavable
