TT/00865 Thermal imager

Automatic detection of hot and cold spots

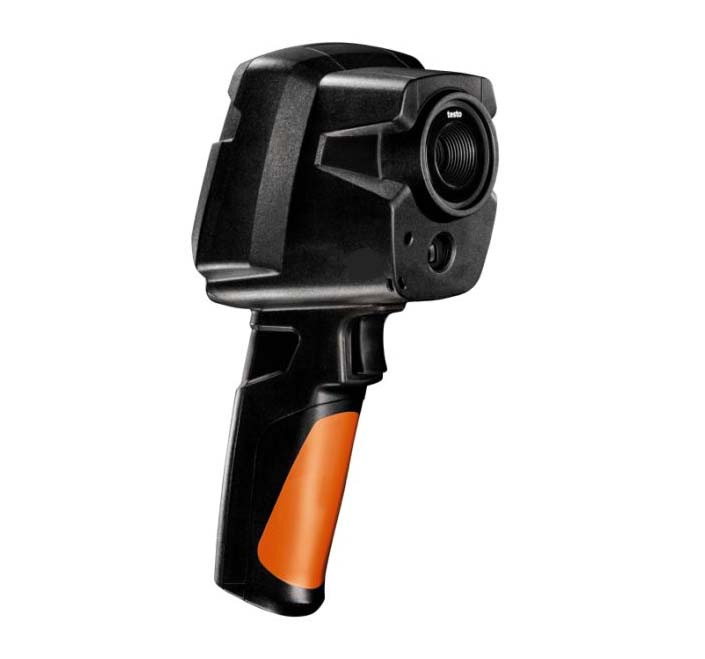

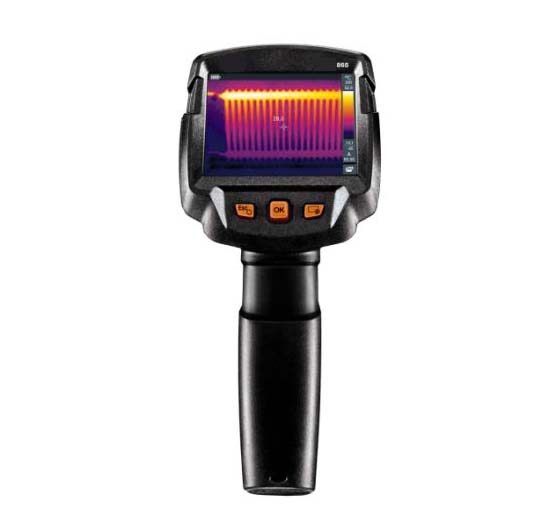

TT/000865 Thermal Imager

• Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels
• Very good measuring accuracy of ±2°C
• Visualizing temperature differences from 0.12°C
• Automatic detection of hot and cold spots

The TT/000865 thermal imager combines all the important properties required for high-quality thermographic measurement – it is accurate, robust, fast and reliable.

It  provides high-quality thermography at an affordable price and keeps going even in tough working conditions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Product Description

The TT/000865 thermal imager offers professional technology and concentrates on functions which are needed in a contractor's daily work. TheTT/000865 is a user-friendly thermal imager, optimized for fast and efficient work.

With the testo ScaleAssist functions ensuring optimum setting of the thermal image scale for building thermography and the IFOV warner making sure you avoid measurement errors, you will always generate the perfect infrared image.

Areas of application

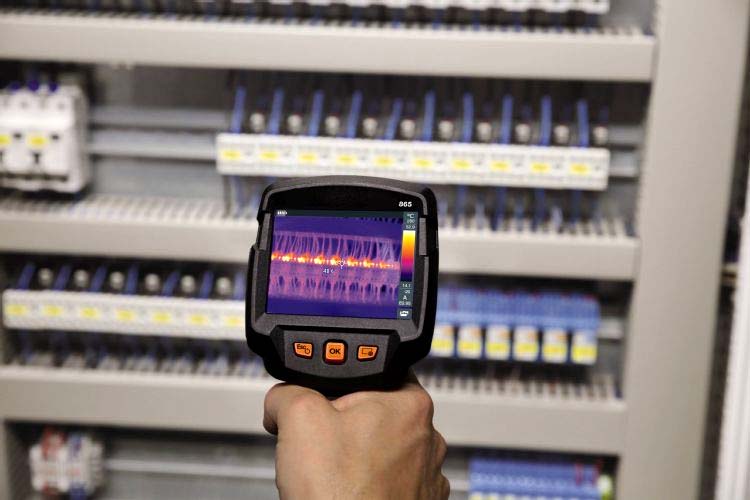

Detect leaks, identify overheated connections, pinpoint thermal bridges or detect structural defects. The testo 865 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. It enables time-saving quality assurance and ensures reliable production control.

Technical highlights

• The TT/000865 thermal imager stands out thanks to its easy operation and has the following impressive technical features:
• Very good image quality due to high resolution: 19,200 temperature measuring points ensure precise thermography. Infrared resolution of 160 x 120 pixels – via integrated SuperResolution Technology 320 x 240 pixels
• Visualize temperature differences from 0.12°C
• Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
• The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
• Pro software for image evaluation on the PC
• You can choose to save thermal images as JPEGs

Delivery Scope

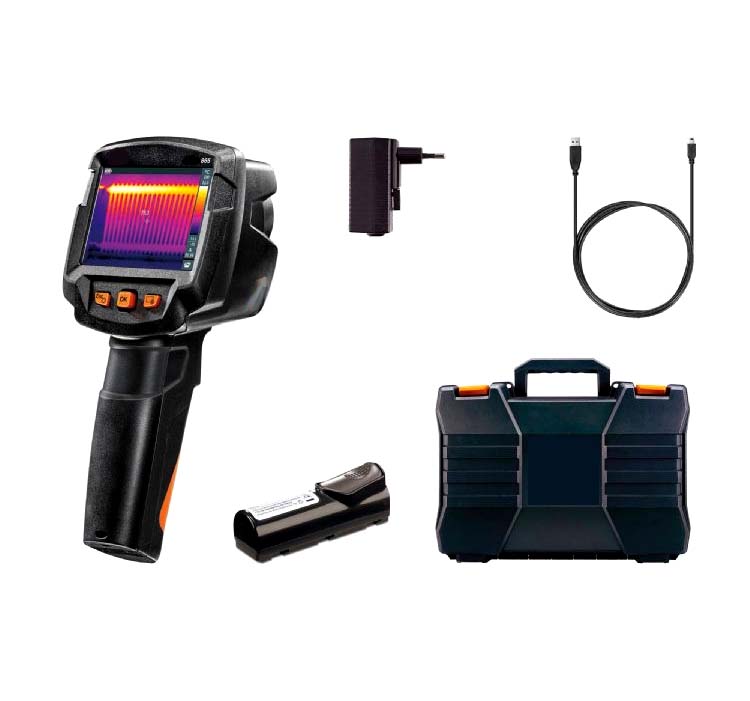

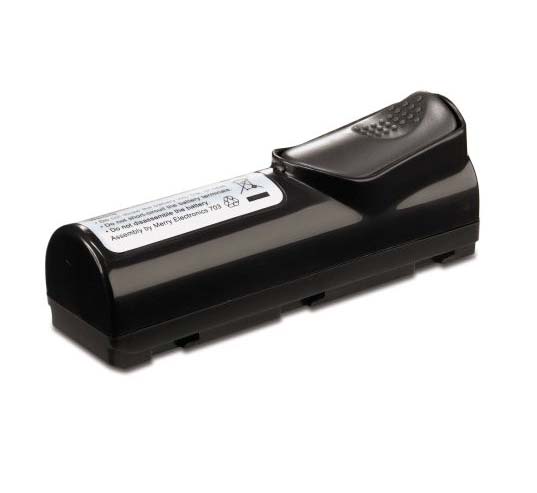

TT/000865 thermal imager, including USB cable, mains unit, lithium-ion rechargeable battery, IRSoft professional software (free download), commissioning instructions, short instructions, calibration protocol and case.

Applications

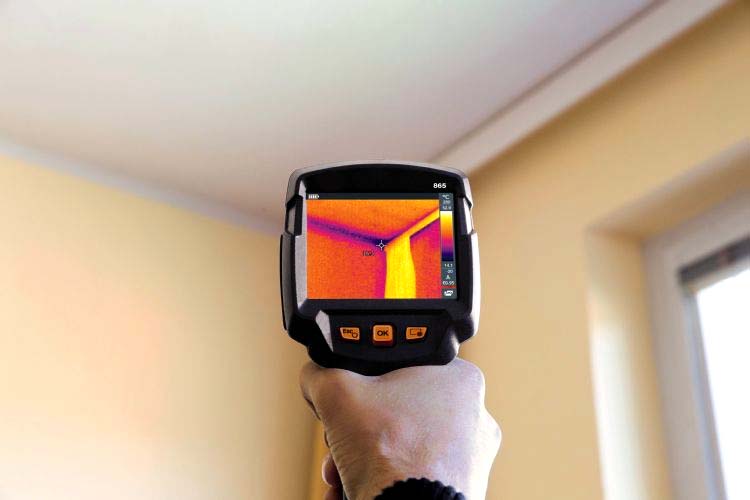

Detecting structural defects and ensuring construction quality (especially: air tightness of windows and doors)

Analysis with a Testo thermal imager is a fast and efficient method of detecting possible structural defects. Furthermore, Testo thermal imagers are ideally suited for providing proof of the quality and correct implementation of construction measures. Any heat losses, humidity and lack of air tightness in a building are visible in the thermal image. The Testo thermal imager makes it possible to detect faulty thermal insulation and structural damage – all using a non-contact method! The testo ScaleAssist function, which automatically ensures optimum setting of the thermal image scale, means you get objectively comparable thermal images of buildings. This makes correct assessment of structural defects and thermal bridges easier than ever before. Checking the air tightness of windows and doors is one of the typical applications of the thermal imager.

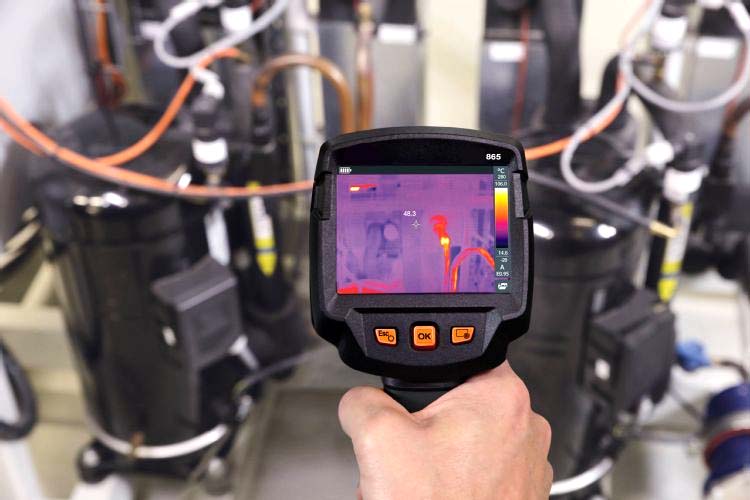

Easy checking of heating and installation systems

This thermal imagers are easy and intuitive to operate, so they are ideal for quickly and reliably checking heating, ventilation and air conditioning systems.

Just a quick look with the thermal imager is enough to discover irregularities in temperature distribution. Thus, thermography can be used to easily locate clogged radiators and leaks.

Typical applications for the thermal imager:

• Checking radiators for silting
• Locating leaks
• Measuring the flow and return temperature
• Pinpointing the course of heating loops in an underfloor heating system

On the trail of a ruptured pipe

If a pipe rupture is suspected, the only solution left is often to break open entire wall or flooring areas. The thermal imager enables you to minimize damage and reduce costs, because you locate precise leaks in underfloor heating and other inaccessible pipelines. This avoids opening up walls and floors unnecessarily and considerably reduces the repair costs.
