Tezt tube rotator - Analog

Complete support rack configuration for a wide range of test tubes

Single-axis rotary shaker in analog version with speed adjustment via control knob.

The instrument is supplied in the configuration complete with support rack to accommodate a wide range of centrifuge, analysis and hematology tubes of different capacities even in mixed combination to optimize laboratory testing time.

Rotary speed adjustment with knob
Ideal model for accurate mixing of biological samples in different types of tubes used in a wide range of applications such as immunoprecipitations, prevention of blood clotting in hematology, for diagnostic protocols etc. etc.

Technical specifications

Model	Analog with knob control
Motor	Brush motor
Motion type	Rotating on one axis
Speed range	20÷80 rpm
Tube racks	5 modules for different types of tubes
Modes of operation	Continuous rotation with adjustable speed
Timer	NO
Power supply	AC 100-220V, 50/60Hz
Potenza	25 W
Equipment	Complete with 5 support racks, power supply, user manual
Operating conditions	5÷40°C / 80% U.R.
Dimensions	425x100x125 mm

To order

Code	Description
JL/RML/080	Shaker/mixer rotator - Analog

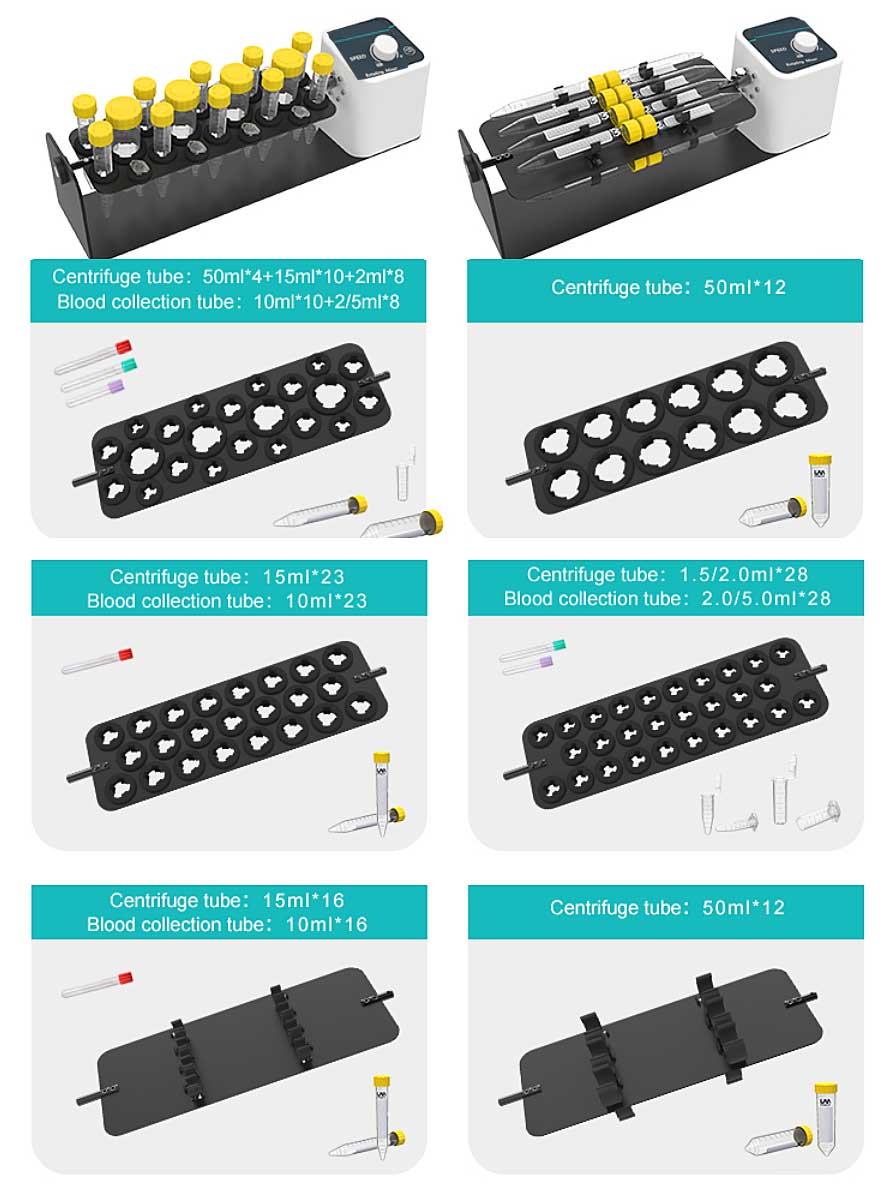

Rack provided

Code	Description
JL/000/800	4x50 ml centifuge tubes 10x15 ml centrifuge tubes (or 10x10 ml blood collection tubes) 8x1,5 ml microcentrifuge tubes (or 8x2/5 ml blood collection tubes)
JL/000/801	12x50 ml centrifuge tubes
JL/000/802	23x15 ml centrifuge tubes (or 23x10 ml blood collection tubes)
JL/000/803	28x1,5 ml microcentrifuge tubes (or 28x2/5 ml blood collection tubes)
JL/000/804	Horizontal layout for: 16x15 ml centrifuge tubes (or 16x10 ml blood collection tubes)
JL/000/805	Horizontal layout for 12x50 ml centrifuge tubes
