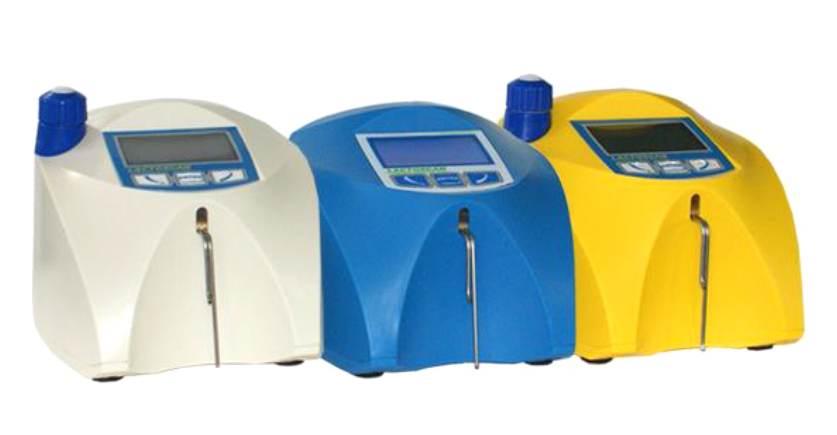

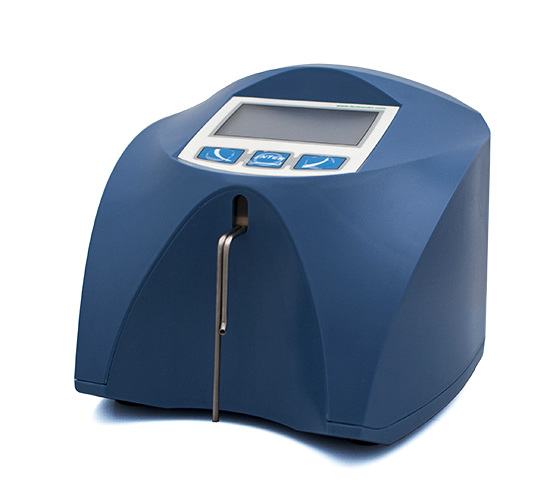

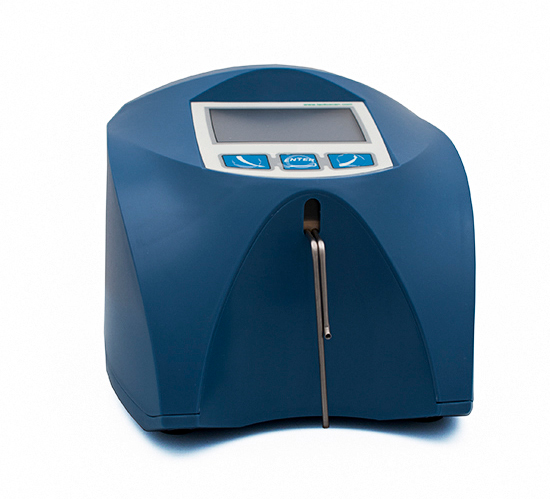

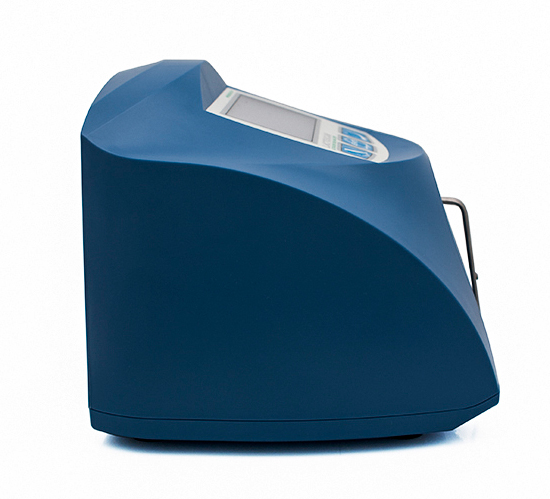

Ultrasonic automatic milk analyzer

Direct ultrasonic measurement of cold milk samples

Ultrasonic automatic milk analyzer with direct measurement of cold milk samples, starting at 5°C.

Automatic instrument equipped with two peristaltic pumps, one for the sample and the other for decontamination cleaning.

No need of periodical calibration.

The measurement accuracy not dependant on milk's acidity.

High-end ultrasonic technology for analyzing any kind of milk; easily readable results, self calibration without computer.

Features

User-friendly ultrasonic milk analyzer: simple in operation, maintenance, calibration and installation
Portable and compact design
Very small quantity of milk required
Low power consumption
No use of hazardous chemicals

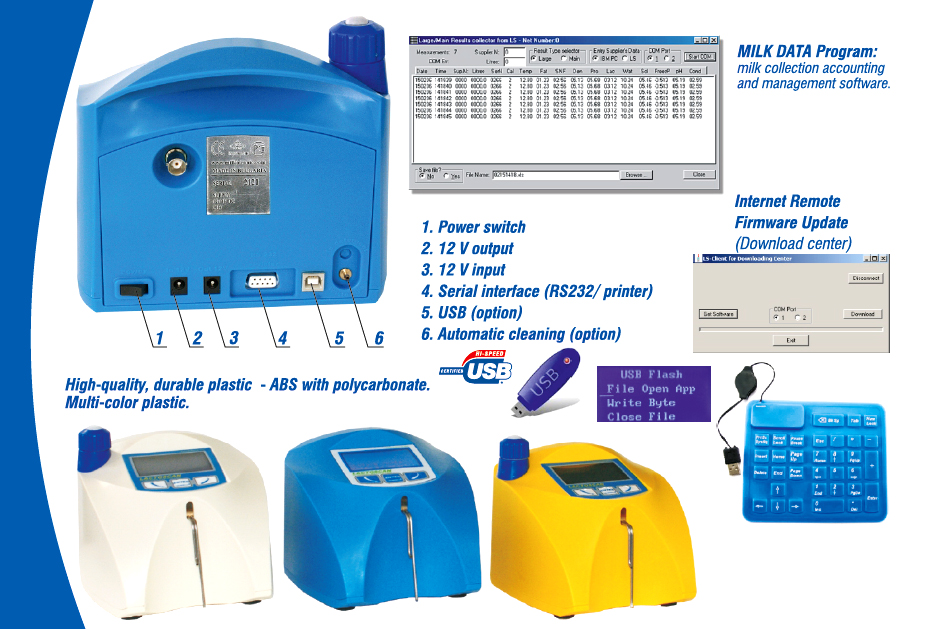

Measuring accuracy adjustment can be done by the user RS232 Interface
ESC POS Printer Support
Two samples self-calibration
Easily readable results

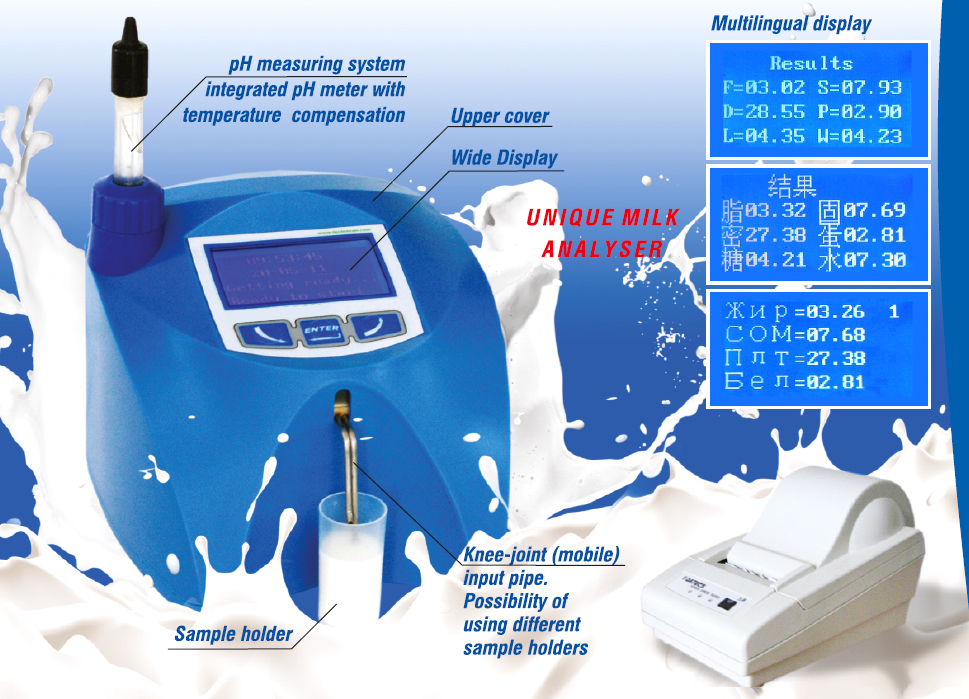

Available in versions with 60 and 30 seconds measurement time and with integration of pH measurement and other optional parameters in addition to the standard ones.

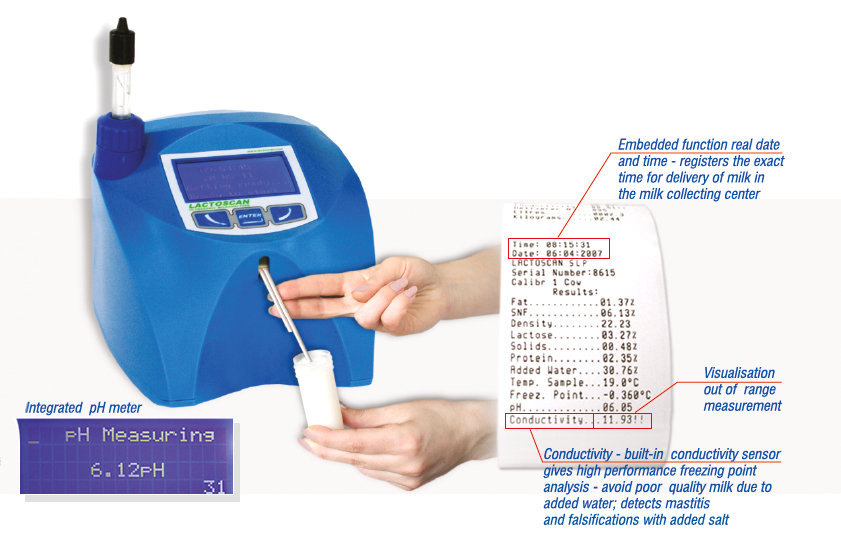

Measuring parameters

Fat
Solids-non-fat (SNF)
Density
Protein
Lactose
Milk sample temperature
Added water
Salts
Freezing point
Total solids (optional)
pH (optional)
Conductivity (optional)
Ion meter (optional)

Parameter	Measure range	Accuracy
FAT	0.01% ÷ 25%	±0.06%
Solids-non-fat (SNF)	3% ÷ 15%	±0.15%
Density	1015kg/m³ ÷ 1040kg/m³	±0.3kg/m³
Protein	2% ÷ 7%	±0.15%
Lactose	0.01% ÷ 6%	±0.2%
Added water	0% ÷ 70%	±3%
Temperature	1°C ÷ 40 °C	±1%
Freezing point	–0.4°C ÷ –0.7°C	±0.001%
Salts	from 0.4% ÷ 1.5%	±0.05%

To order

Code	Description
LC/0SP/A50	Automatic ultrasonic milk analyzer measuring time 50 s
LC/0SP/A30	Automatic ultrasonic milk analyzer measuring time 30 s
LC/0SP/APH	Automatic ultrasonic milk analyzer measuring time 50 s with integration of pH measurement, high density samples, conductivity
