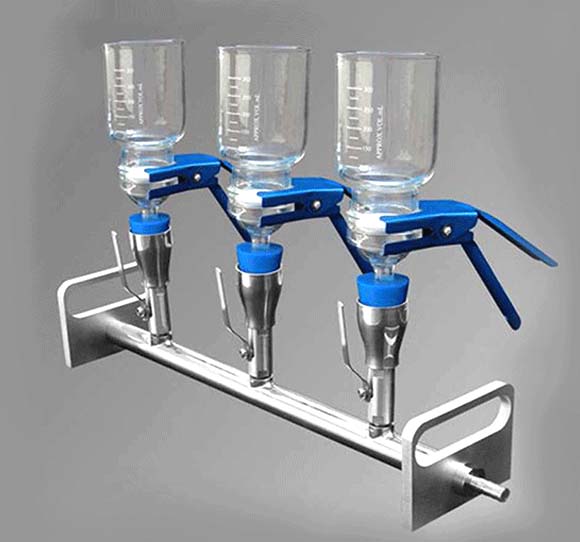

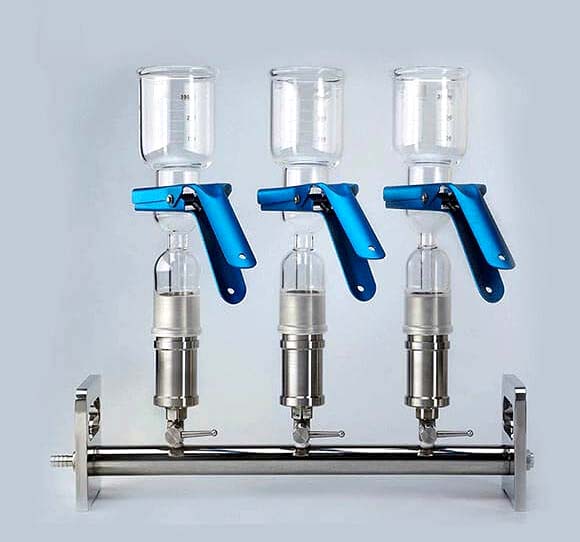

Vacuum filter manifold - 3 workstations
Complete configuration of funnels, Erlenmeyer flask and vacuum filter holders base
Vacuum filtration manifolt with glass filter holder with three positions.
Complete configuration with funnels, Erlenmeyer flask, filter holders base, clamp and tubes.
The glass parts are of the highest quality and resistant to temperature variations and mechanical stress even under high vacuum conditions.
The glass three-branch vacuum filtrations is a reasonable structure, beautiful shape, integrated filter, separation valve, single sample of the filter, good quality, convenient operation. the size of glass three-branch vacuum filtrations accords with international standards.
Advantage of Glass Three-Branch Vacuum Filtrations
- High-quality glass material, no bubble, uniform wall thickness
- It has good pressure resistance and can be used for autoclaving under high temperature and pressure
- Size specifications meet international standards
Features
- 47mm or 50mm diameter membrane
- Can be worked under 180℃ – 280℃ high temperature
- Suggest match with vacuum pump HC/SLVP/GM050B
Applications
Widely used in chemical analysis, biochemical pharmacy, sanitation inspection, environmental testing, water quality analysis, food, beverage, scientific research, etc.

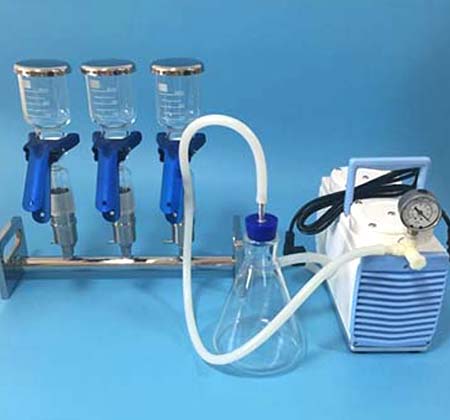

Package version complete with membrane pump
Also available in the package version complete with 50 mbar diaphragm pump of absolute vacuum with flow rate 30 l/min.
Technical specifications
| Code |
HC/SLTG/F03001 |
| Workstation # |
3 |
| Funnel volume |
300 ml |
| Funnel material |
glass |
| Support screen |
PTFE |
| Screen porosity |
20 µm |
| Collecting flask volume |
1.000 ml |
| Filters diameter |
Ø 47÷50 mm |
